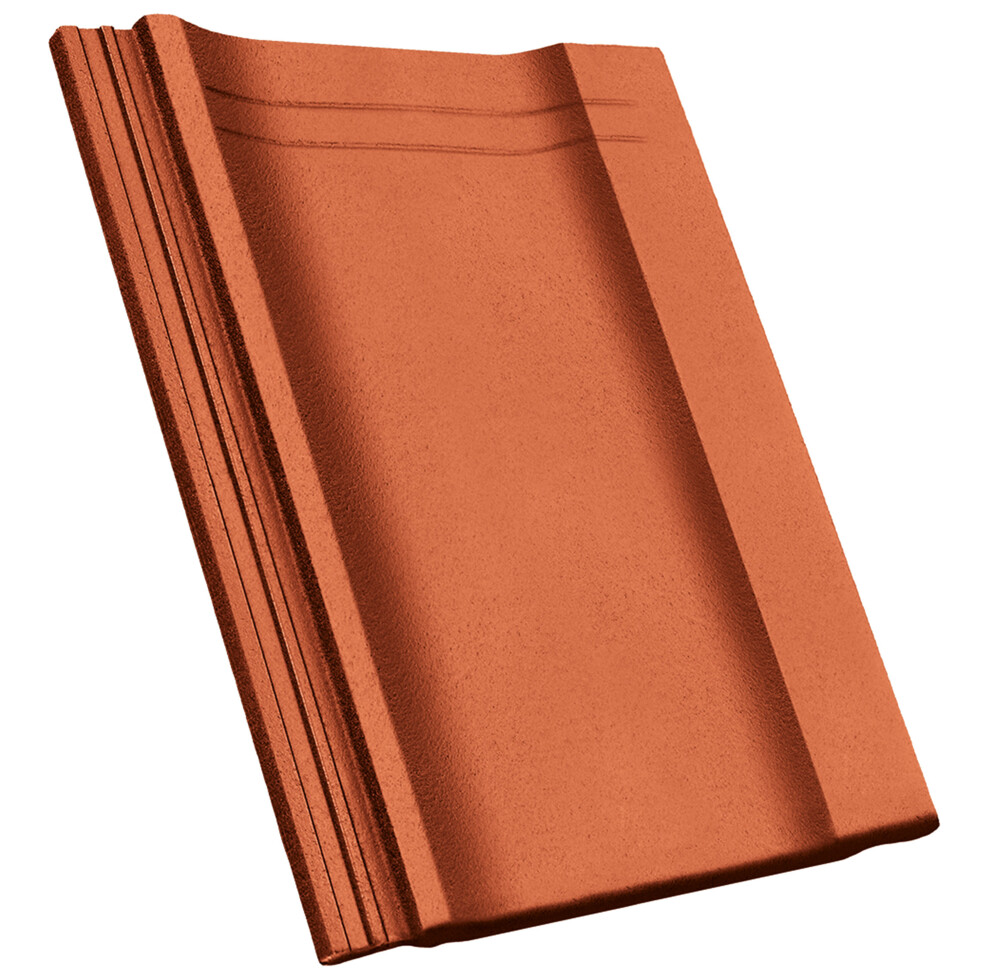

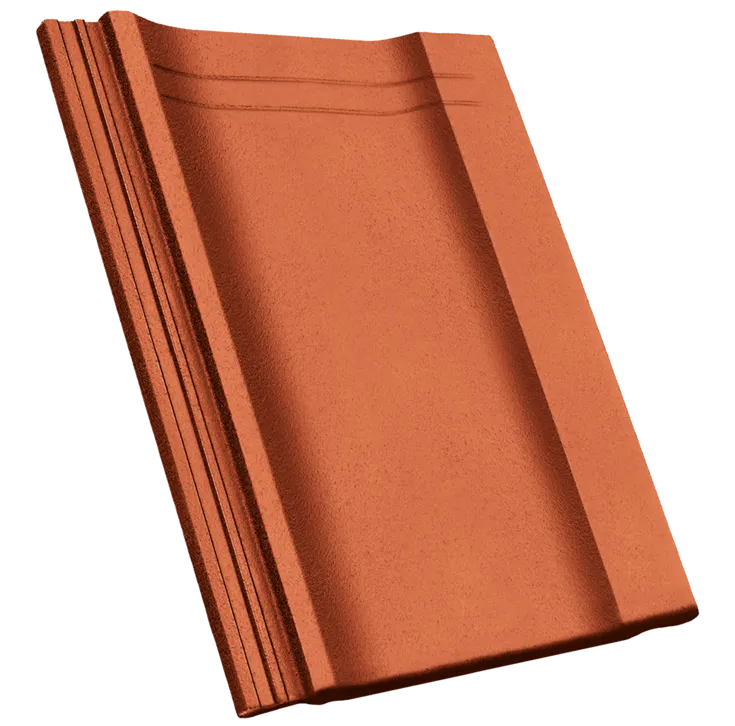

KIOTO®
The concrete KIOTO is a fashionable alternative to flat roof tiles. Innovative in terms of design, created with passion and the greatest precision, it delights in every respect. It is a symbol of modernity, ideally responding to the needs of fashionable architecture. Every detail of KIOTO is carefully thought out - here aesthetics meets functionality, and minimalism intertwines with elegance.
Dimensions: 334 x 420 mm
Consumption: from 9.7 pcs/m2
Weight: 5.2 kg/pcs.

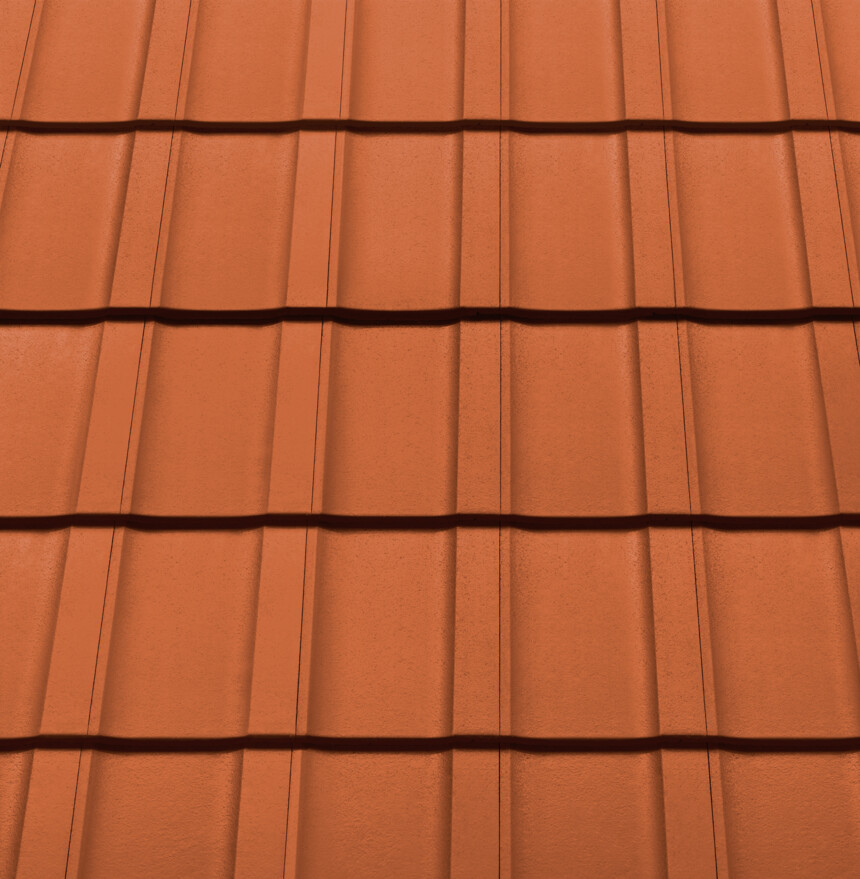

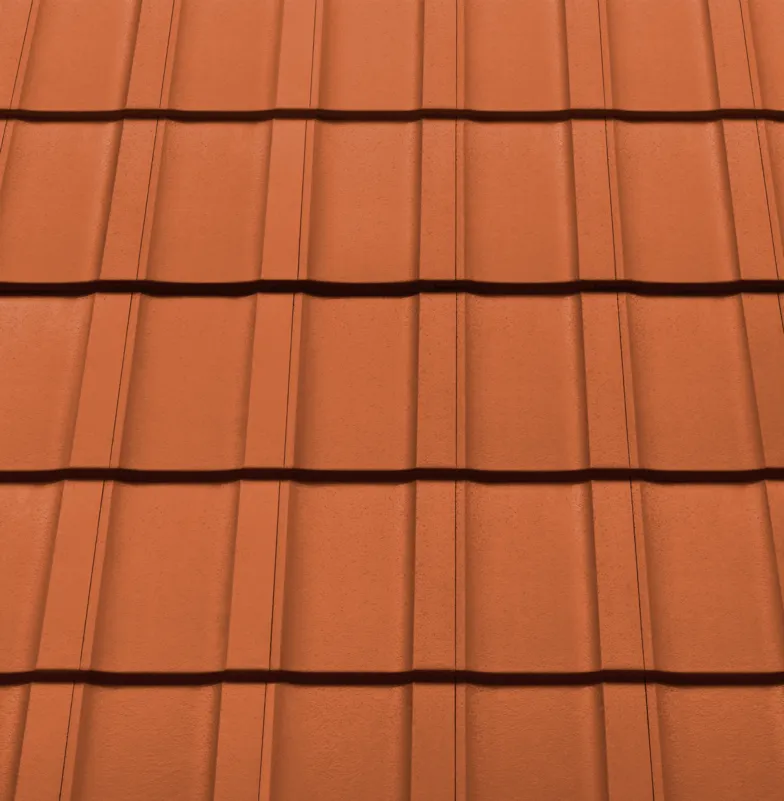

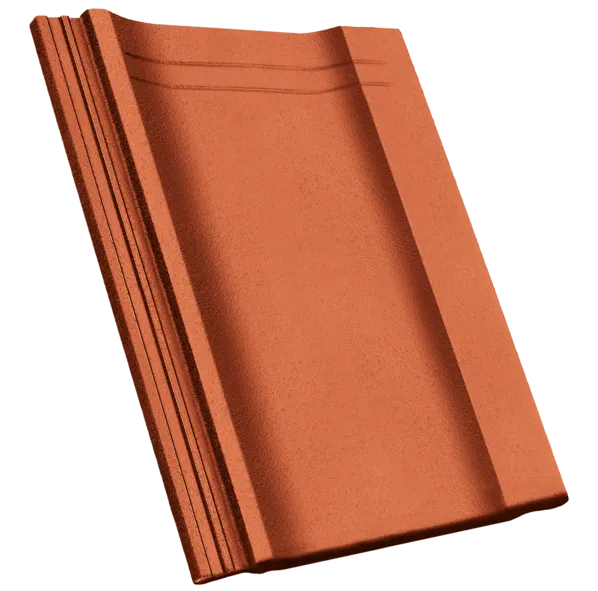

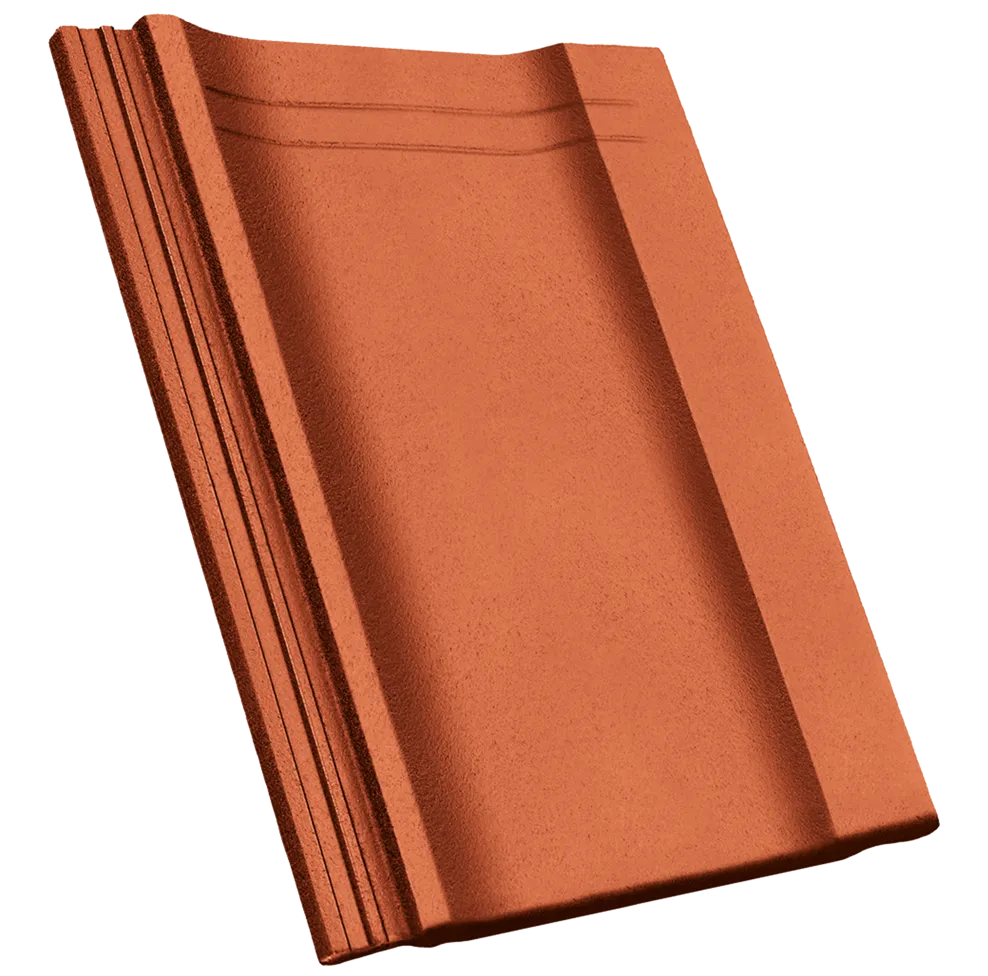

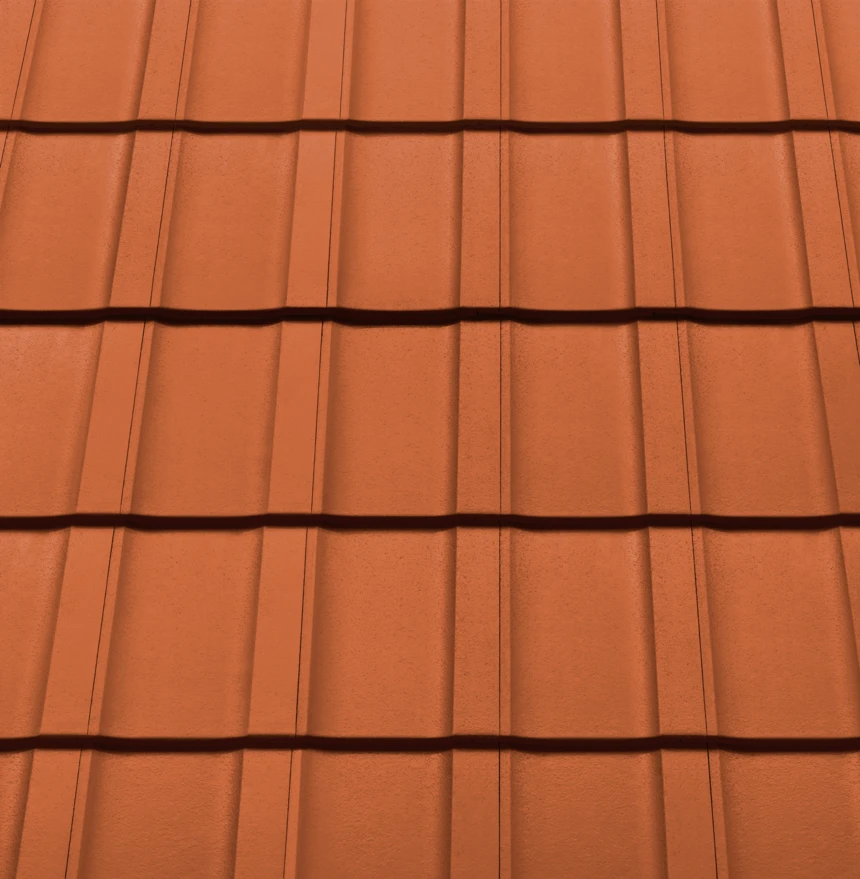

Red PLANAR
Check the most important advantages
A convention-breaking, innovative roof tile
Breaking conventions, the innovative roof tile redefines the standards of roof aesthetics.
The 334 x 420 mm format ensures consumption of only 9.7 pcs./m²
Format optimization reduces material costs and shortens the investment implementation time.
A unique design that fits perfectly into modern trends
The original shape harmoniously matches modern construction solutions.
Dimensional stability guarantees tightness and easy installation
Attention to the smallest details at every stage of production ensures excellent quality.
Natural ingredients of the highest quality ensure longevity
High-quality components ensure durability throughout the life of the building.
Numerous accessories ensure easy and precise assembly
The range of system accessories guarantees an aesthetic finish in all details.
Technical data for KIOTO®
-
-
334 × 420 mm
-
-
-
min. 300 mm
-
av. 300 mm
-
max. 300 mm
-
-
-
min. 310 mm
-
av. 328 mm
-
max. 345 mm
-
-
-
min. 9,7 Pcs/m²
-
av. 10,2 Pcs/m²
-
max. 10,7 Pcs/m²
-
-
-
4,9 Kg/pc
-
50 Kg/m²
-
-
-

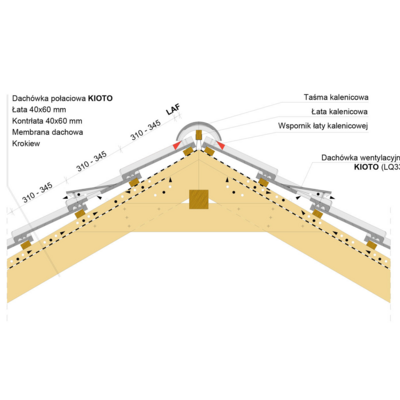

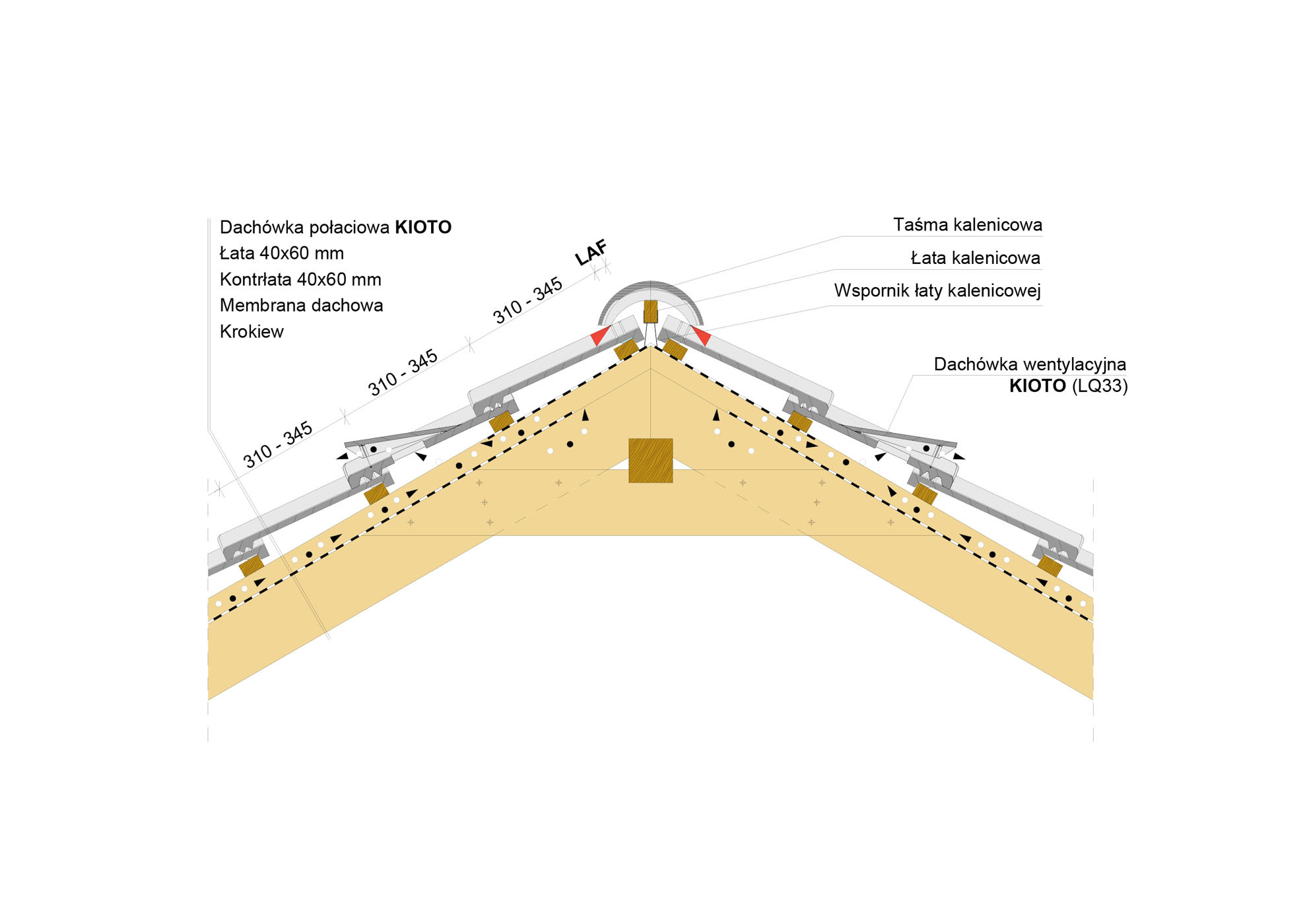

Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
55°
LAF
40
38
37
36
35
34
33
31
30
Ridge tile KAPSTADT
LAF
122
113
105
96
90
85
80
75
70
Ridge tile universal
FLA
107
102
97
93
89
86
83
77
74
-
Choose the best accessories

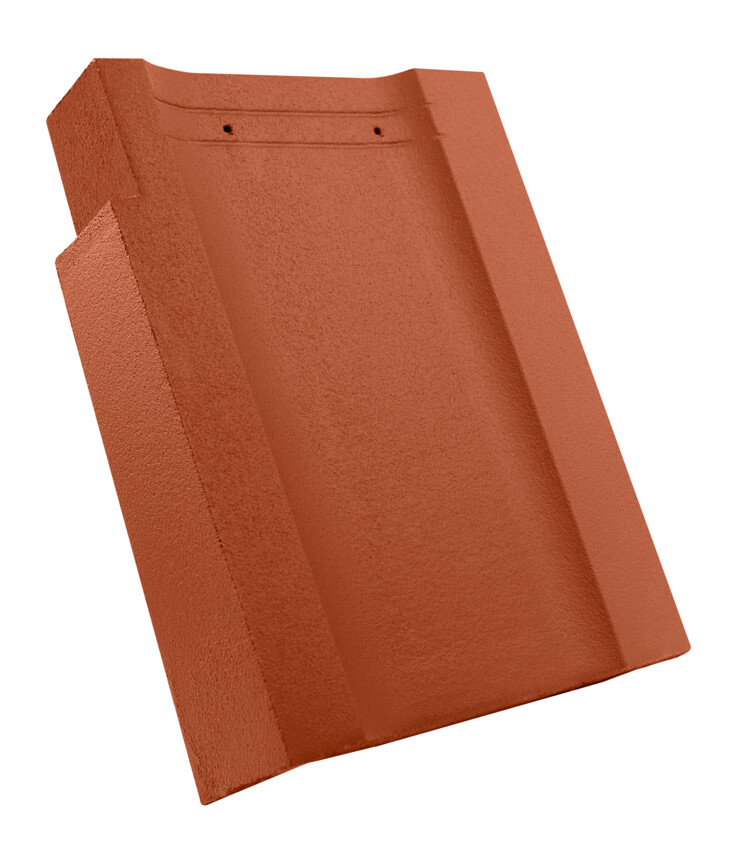

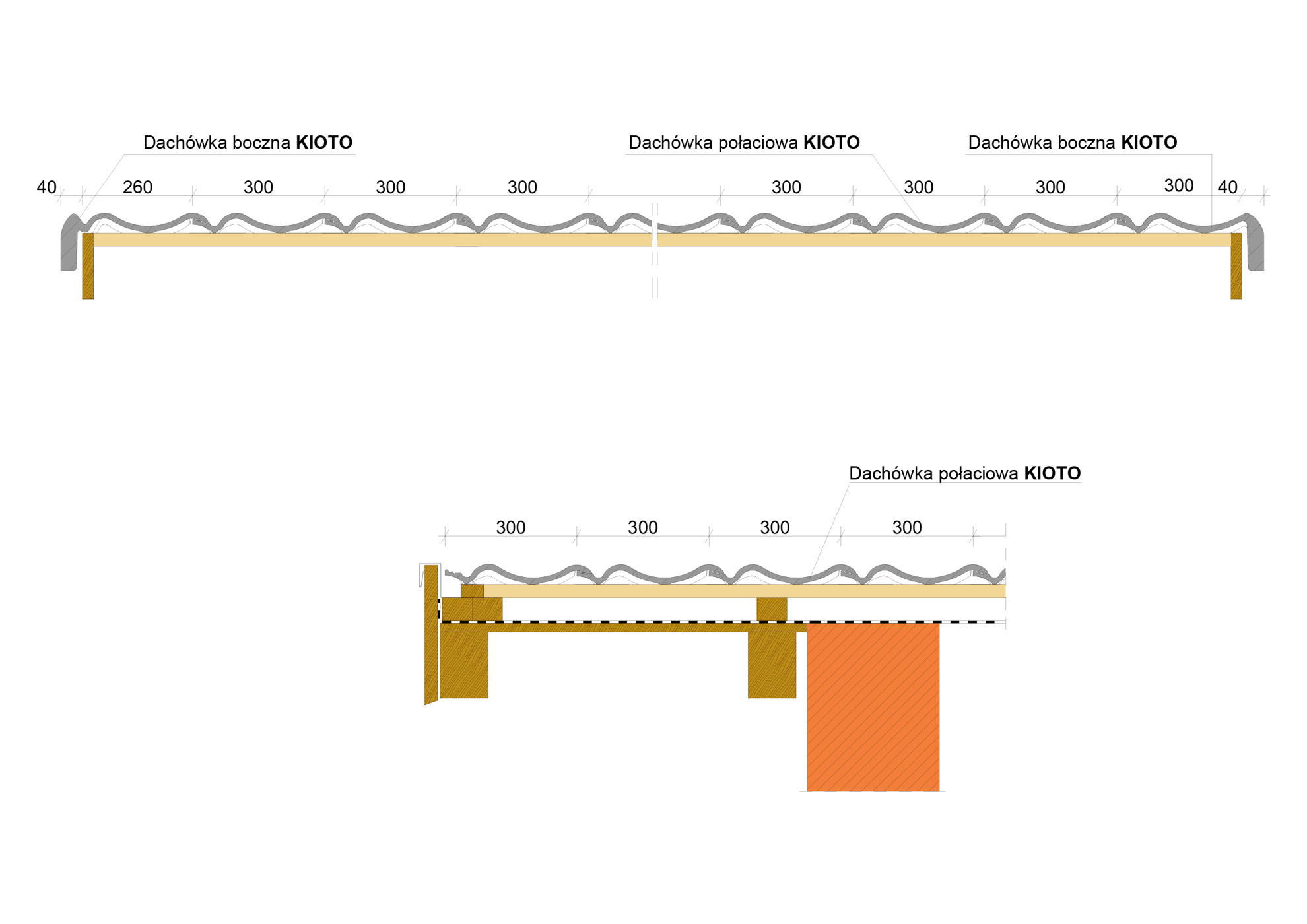

KIOTO Verge tile notch 90 mm, batten spacing 335-345 mm Right
KIOTO Verge tile notch 90 mm, batten spacing 335-345 mm Left
KIOTO Verge tile notch 120 mm, batten spacing 310-334 mm Right
KIOTO Verge tile notch 120 mm, batten spacing 310-334 mm Left
Downloads
-
-
tech draw KIOTO verge tile 90 mm right.zip
-
tech draw KIOTO verge tile 90 mm left.zip
-
tech draw KIOTO verge tile 120 mm right.zip
-
tech draw KIOTO verge tile 120 mm left.zip
-
tech draw KIOTO ventilating tile.zip
-
tech draw KIOTO single tread aluminium.zip
-
tech draw KIOTO outlet vent tile DN 100 mm.zip
-
tech draw KIOTO basic tile.zip
-
tech draw KIOTO base fitting with tread.zip
-
tech draw KIOTO base fitting with snowu guard support pack.zip
-
-
