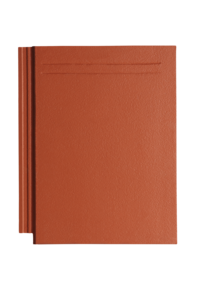

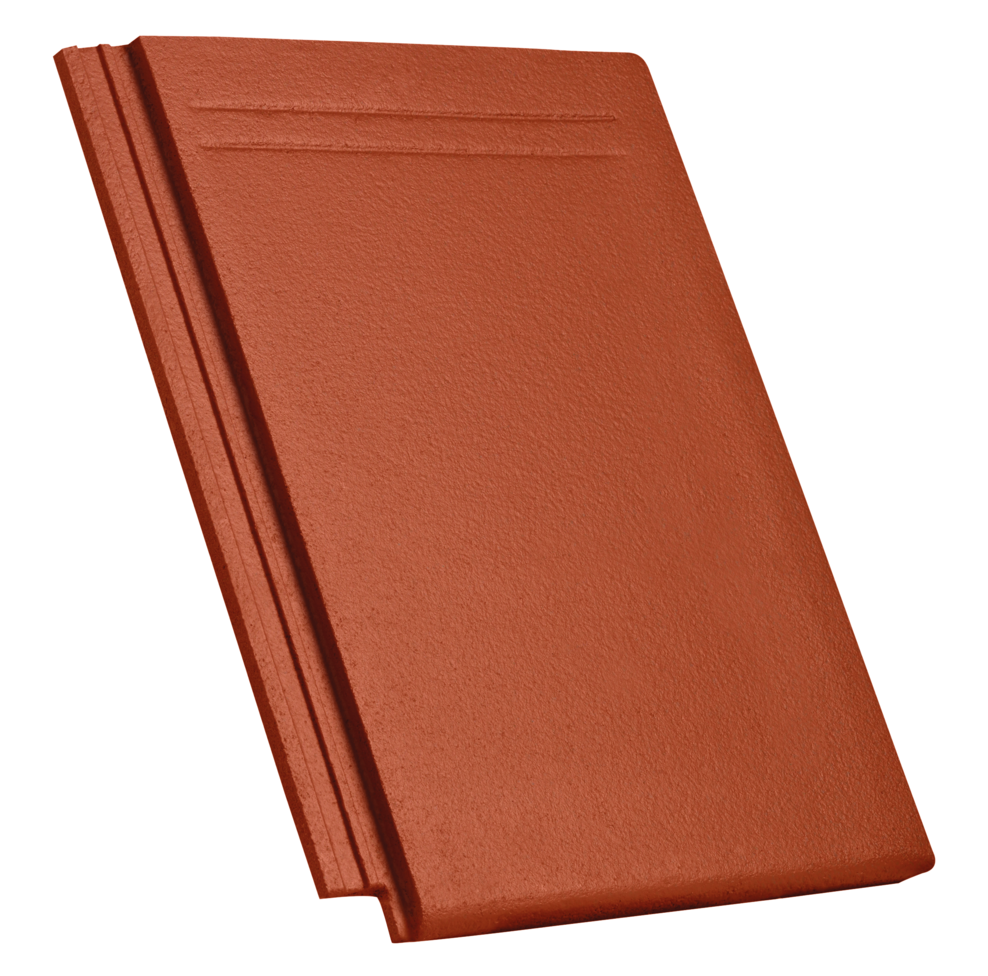

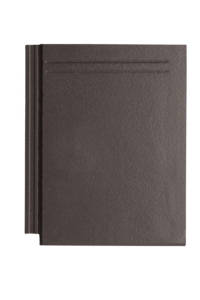

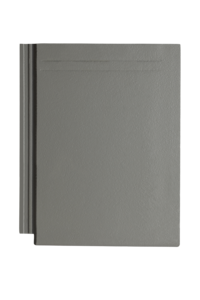

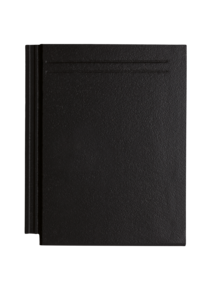

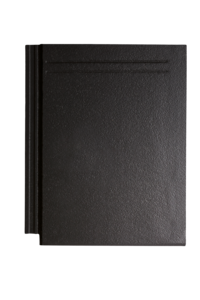

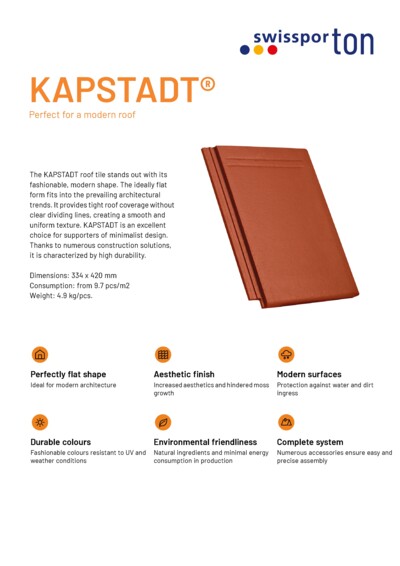

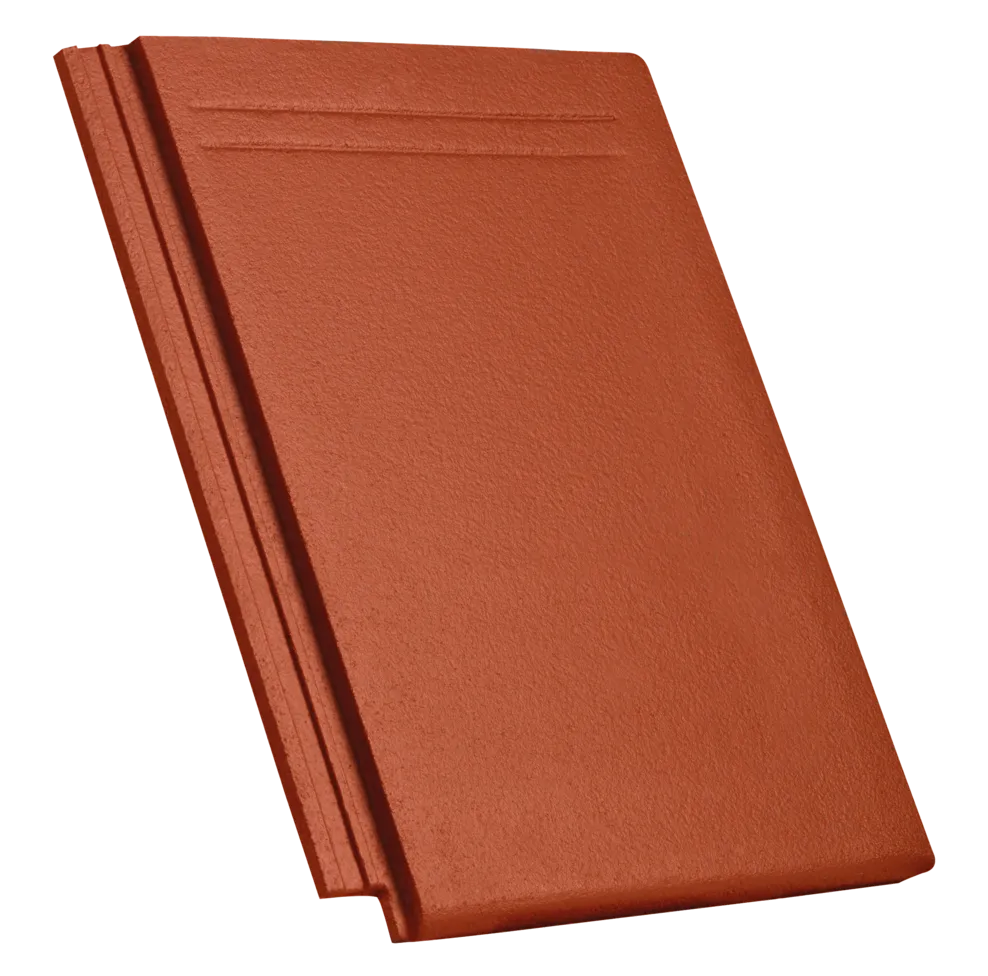

KAPSTADT®

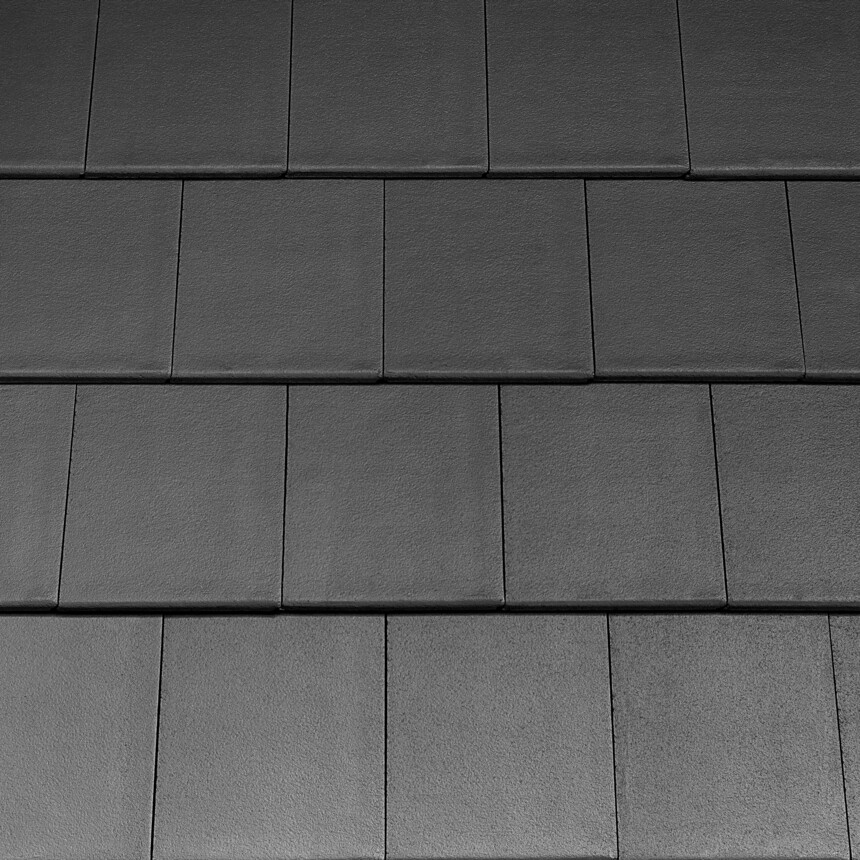

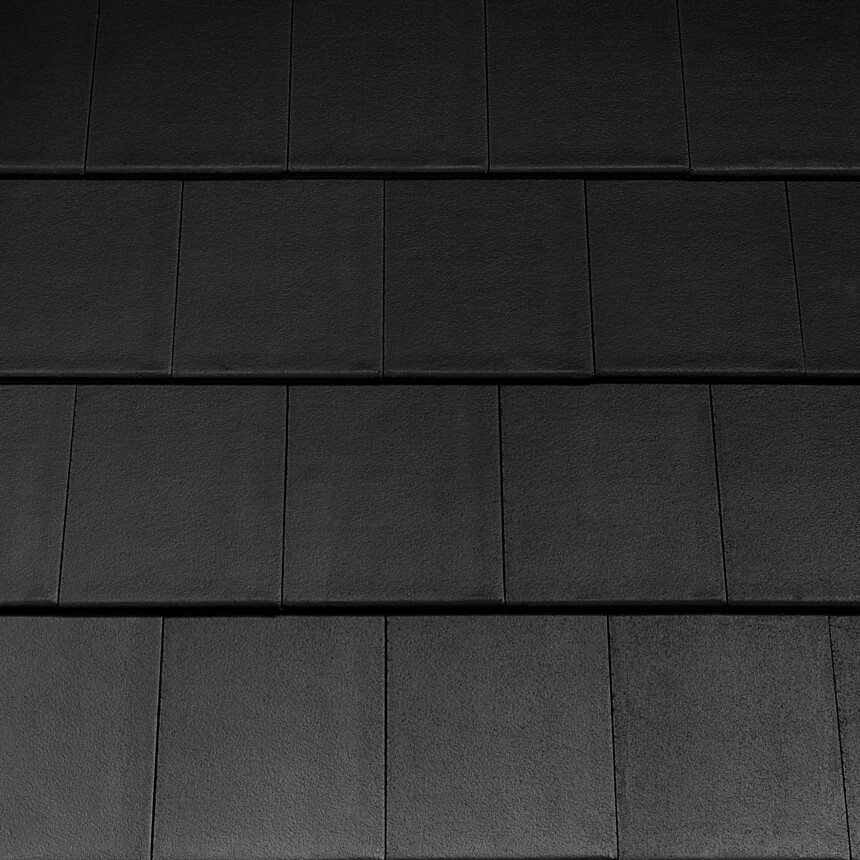

The KAPSTADT roof tile stands out with its fashionable, modern shape. The ideally flat form fits into the prevailing architectural trends. It provides tight roof coverage without clear dividing lines, creating a smooth and uniform texture. KAPSTADT is an excellent choice for supporters of minimalist design. Thanks to numerous construction solutions, it is characterized by high durability.

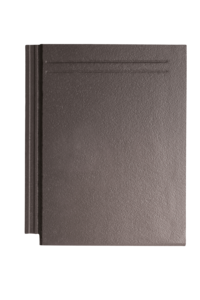

Dimensions: 334 x 420 mm
Consumption: from 9.7 pcs/m2
Weight: 4.9 kg/pcs.

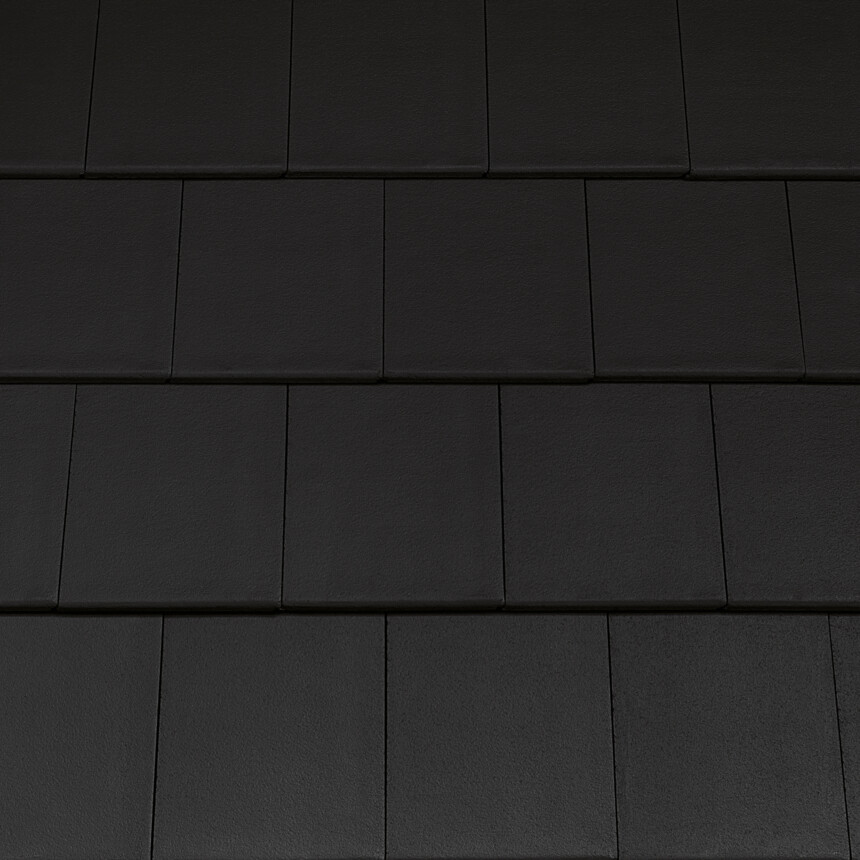

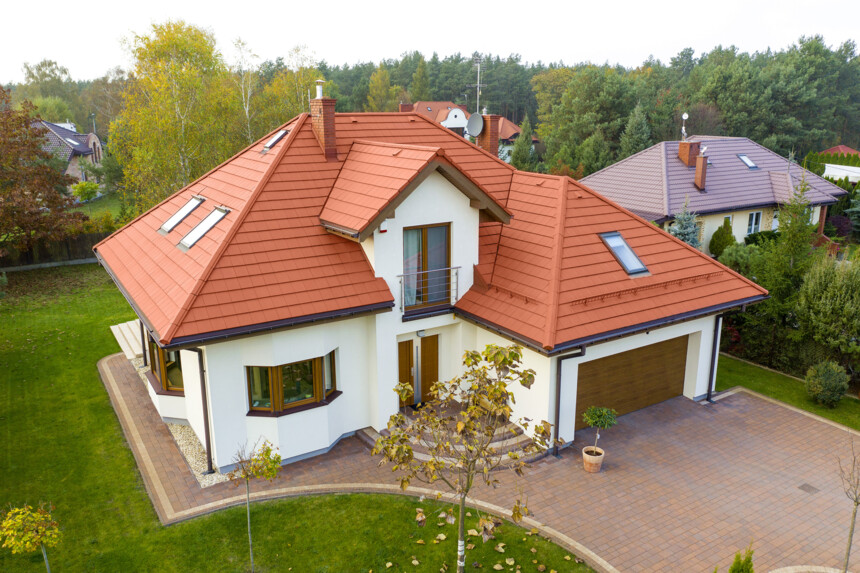

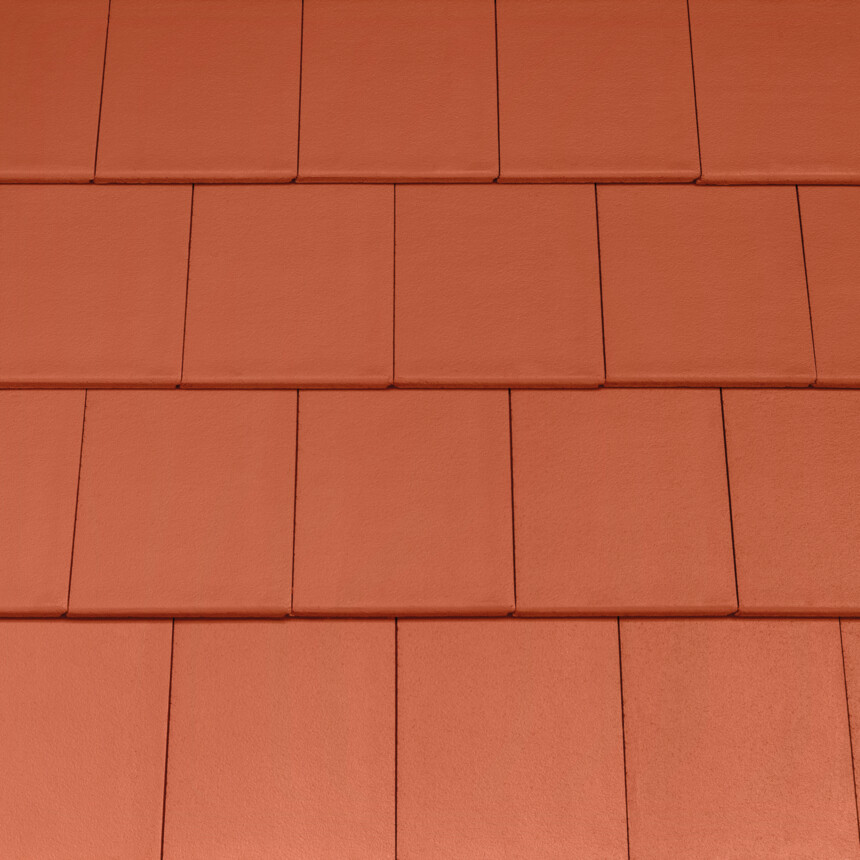

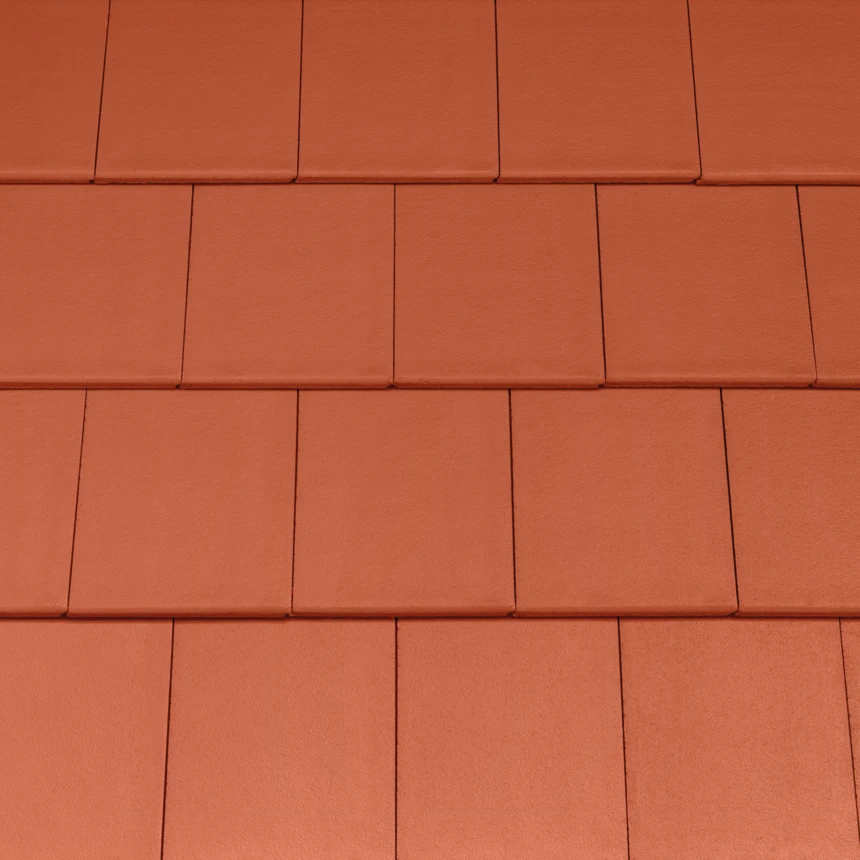

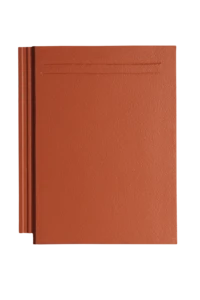

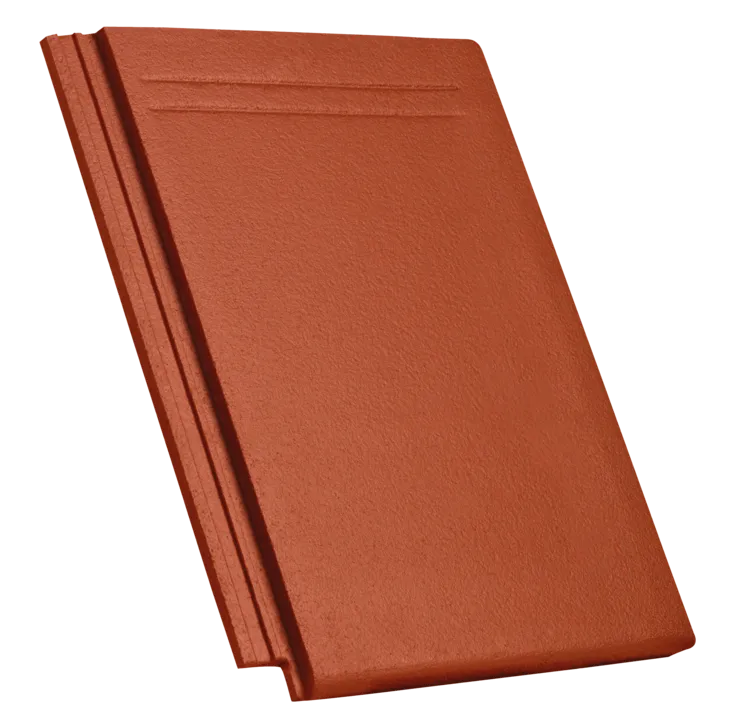

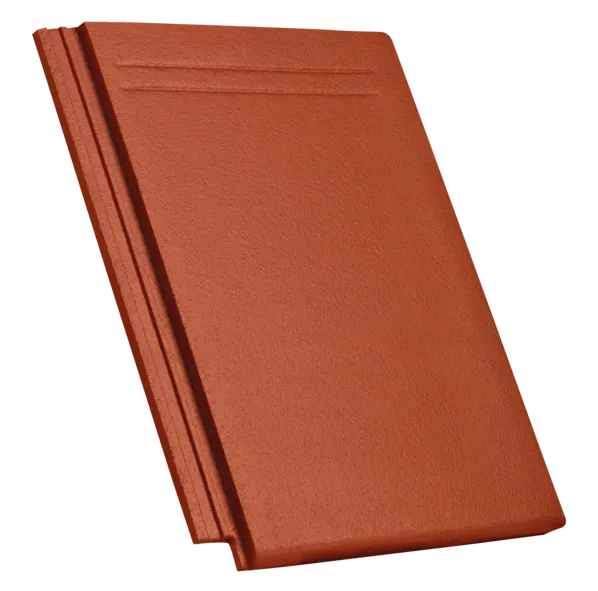

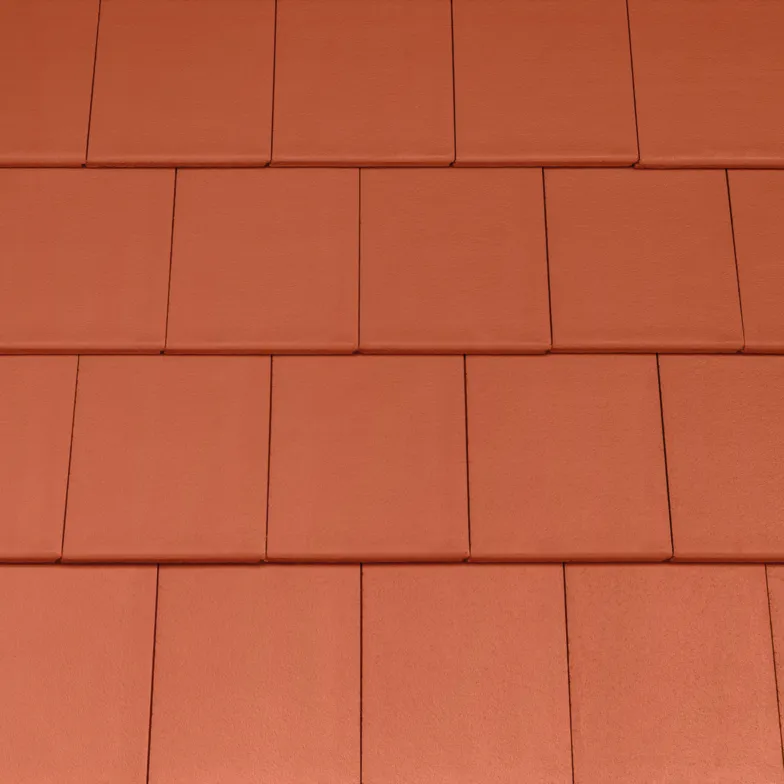

Red PLANAR
Check the most important advantages
Ideal for modern architecture
The geometric form creates a uniform surface ideal for minimalist designs.
Increased aesthetics and hindered moss growth
The smooth texture prevents moisture accumulation and the development of microorganisms.
Protection against water and dirt ingress
The coatings limit water penetration into the tile and make it difficult for dirt to settle.

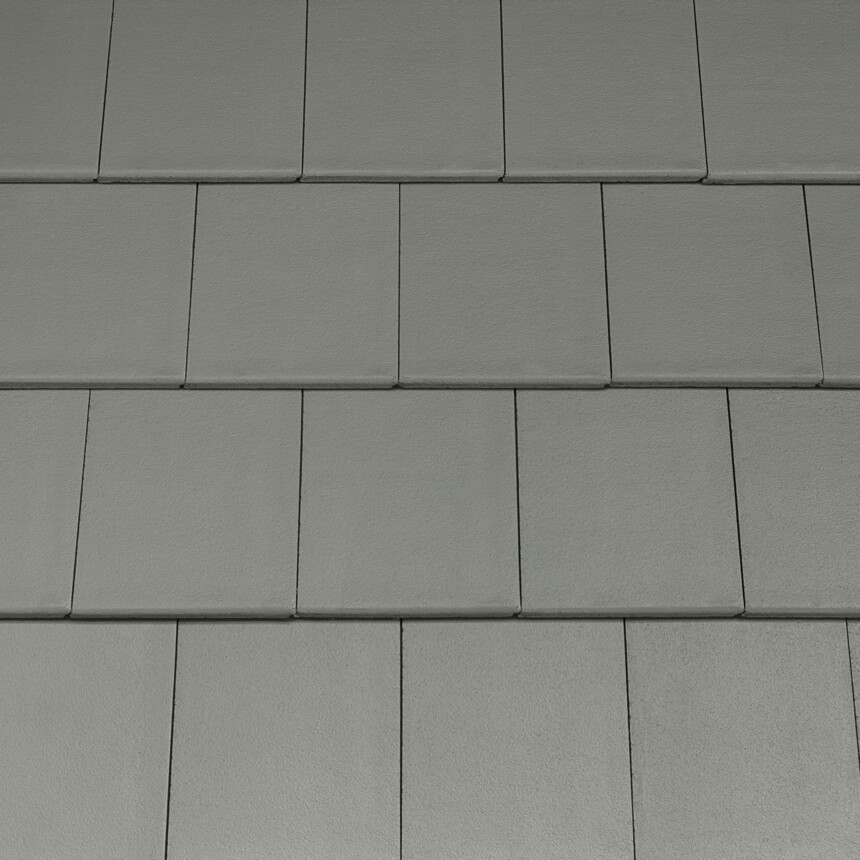

Fashionable colours resistant to UV and weather conditions
It is available in a wide range of colours with increased resistance to UV and atmospheric factors.
Natural ingredients and minimal energy consumption in production
The production technology makes the tile an environmentally friendly product.
Numerous accessories ensure easy and precise assembly
The range of system accessories guarantees an aesthetic finish in all details.
Technical data for KAPSTADT®
-
-
334 × 420 mm
-
-
-
300 mm
-
-
-
300 mm
-
-
-
300 mm
-
-
-
310 mm
-
-
-

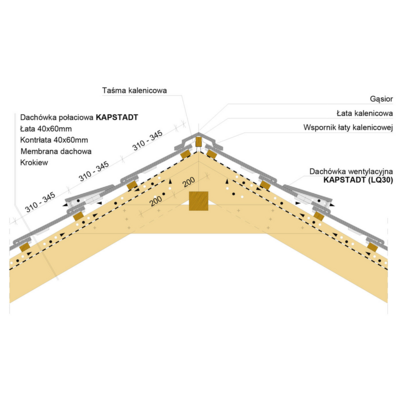

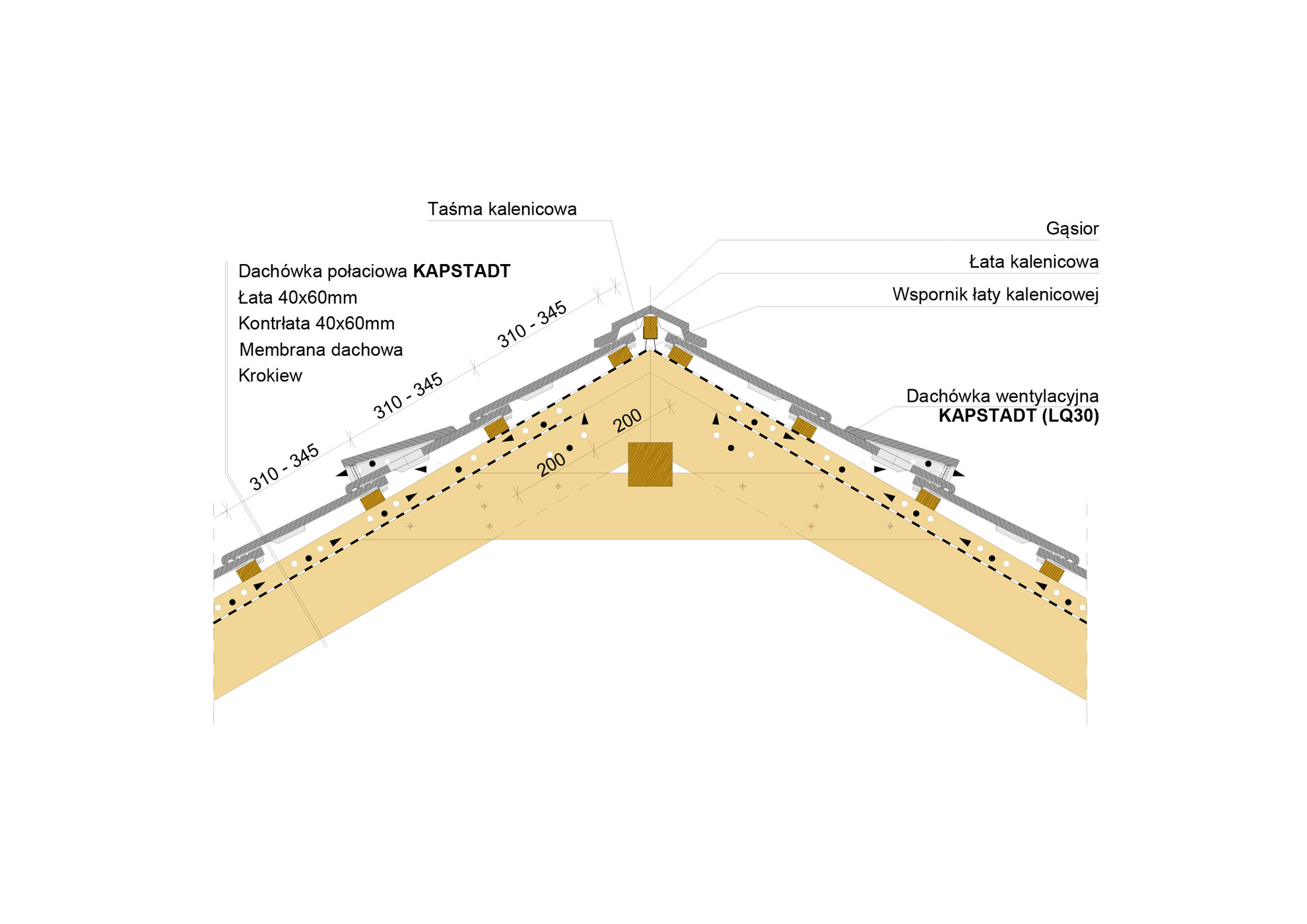

Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
Ridge tile KAPSTADT
LAF
45
45
45
45
45
45
45
45
2.5 pcs/m
FLA
102
92
83
74
68
61
55
48
-
Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
Ridge tile KAPSTADT
LAF
40
40
40
40
40
40
40
40
2.5 pcs/m
FLA
112
103
94
86
80
75
70
64
-
Choose the best accessories
KAPSTADT Half-widht verge tile notch 90 mm, batten spacing 335-345 mm Right

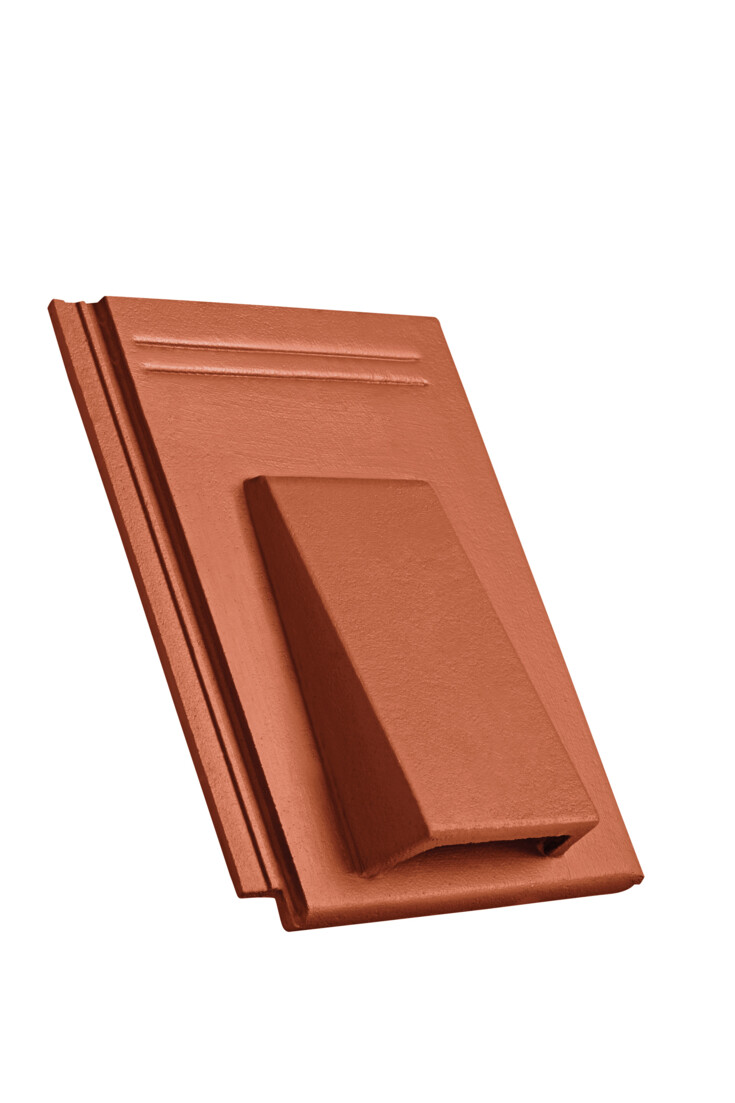

KAPSTADT Ventilation tile

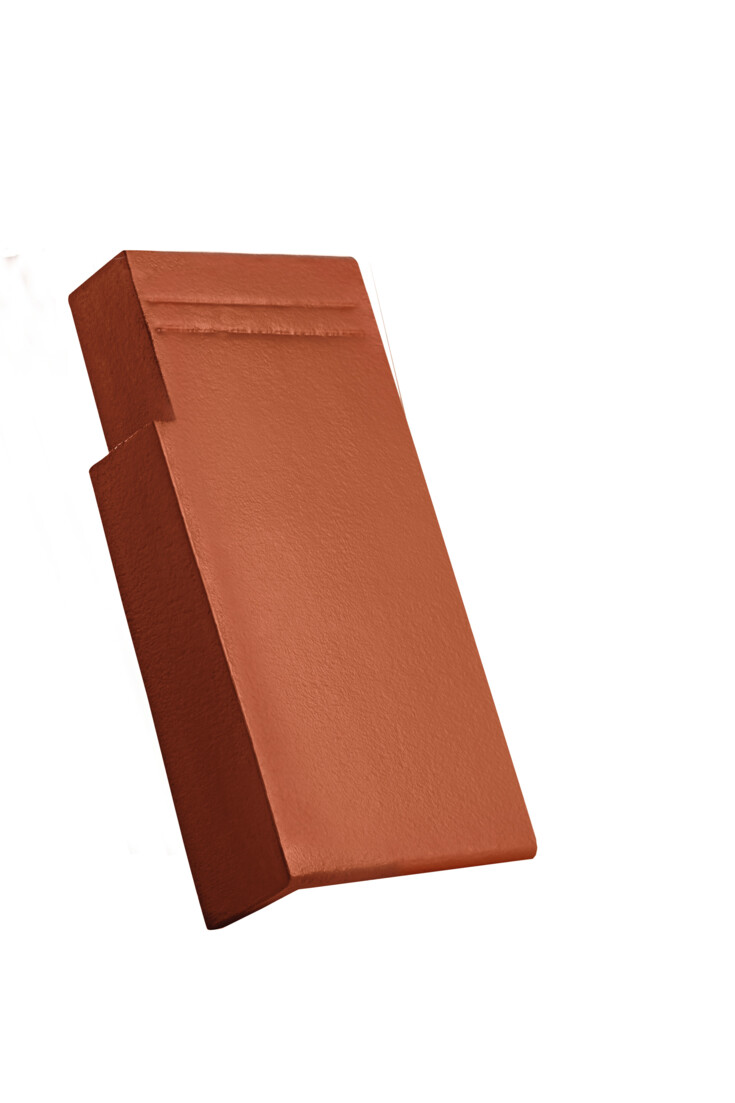

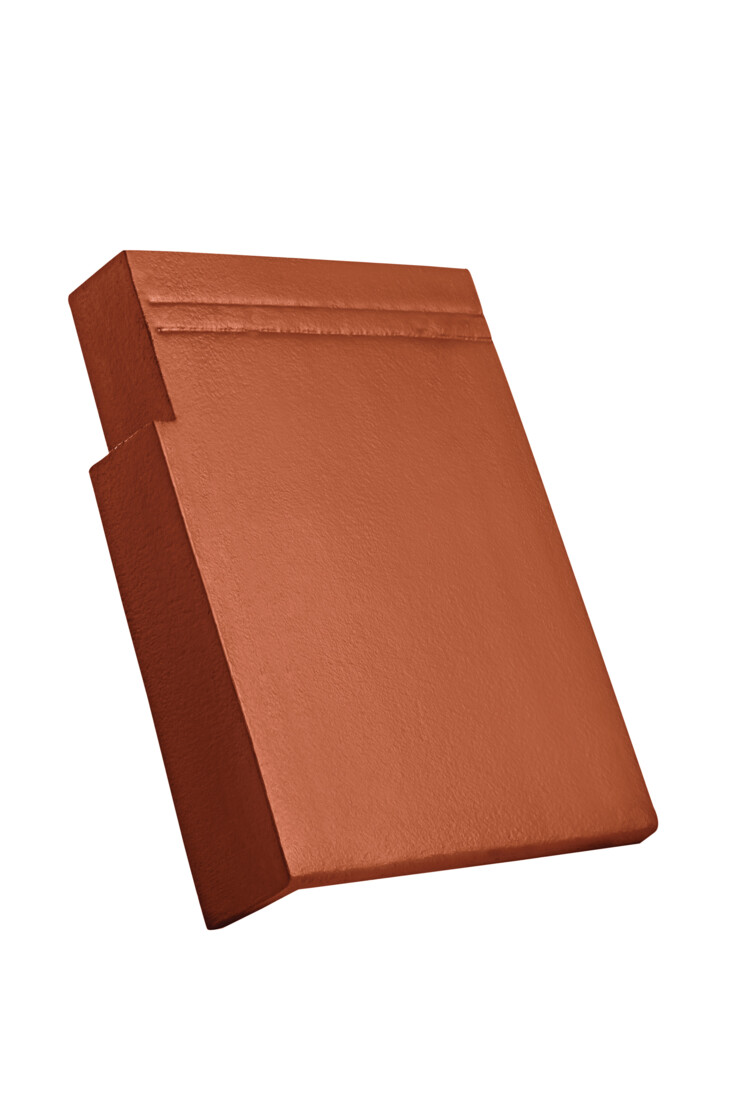

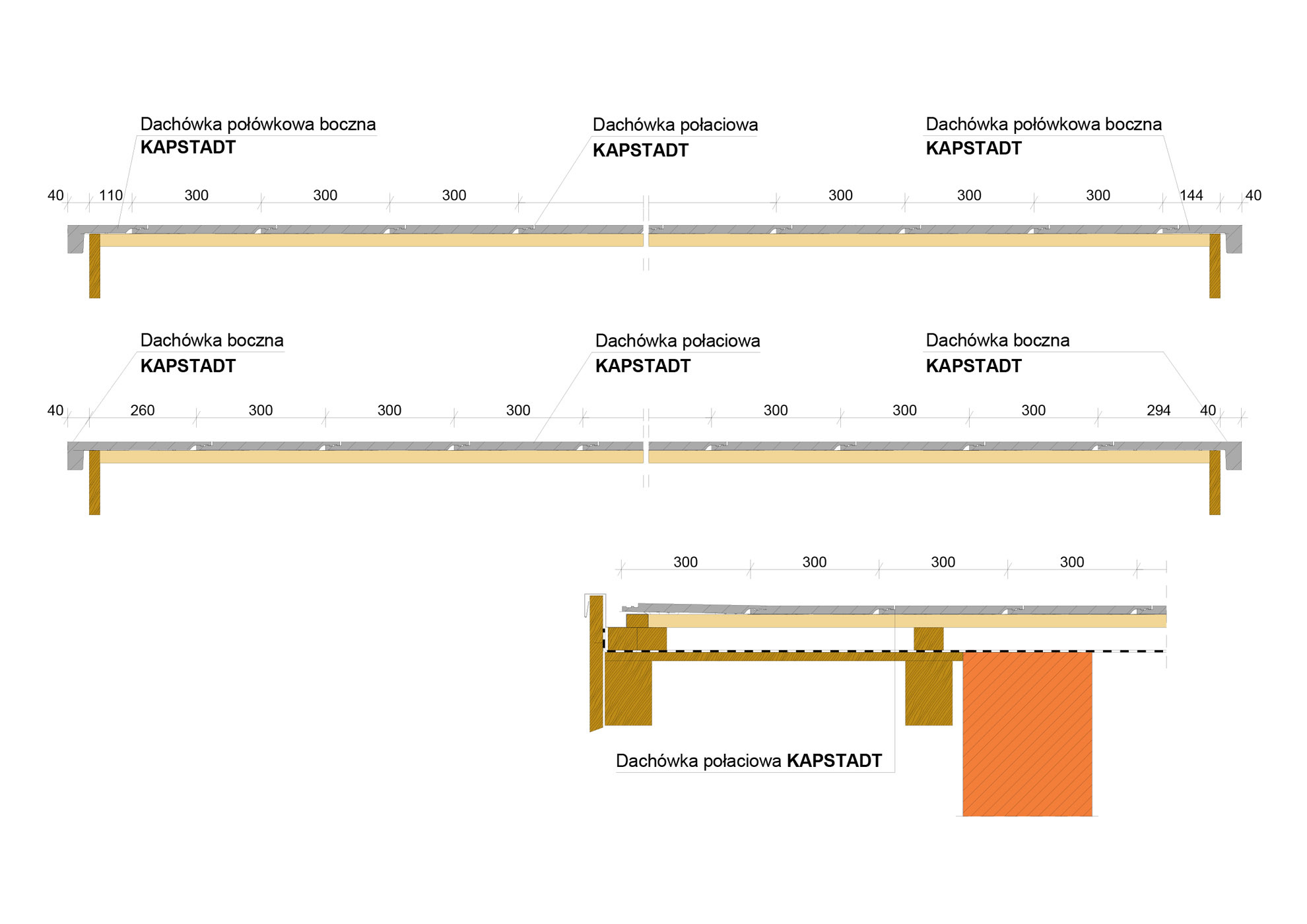

KAPSTADT Verge tile notch 120 mm, batten spacing 310-334 mm Left
KAPSTADT Verge tile notch 120 mm, batten spacing 310-334 mm Right
Downloads
-
-

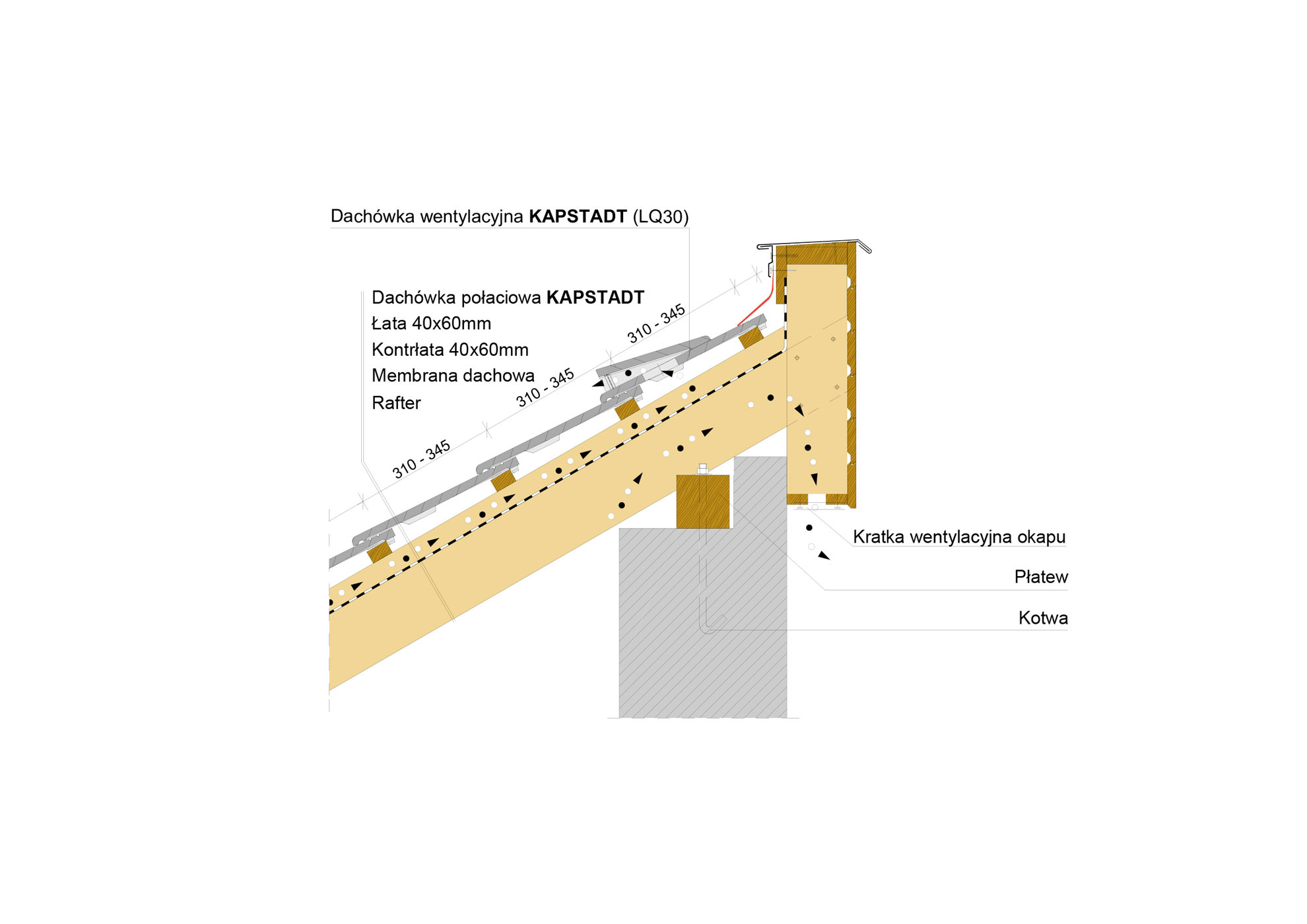

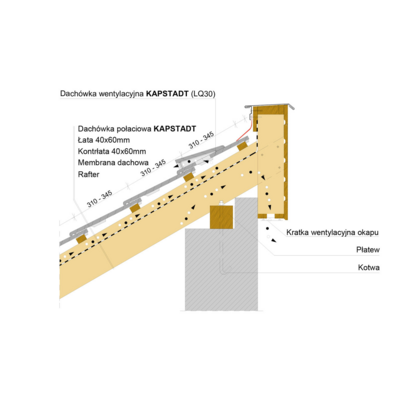

tech draw KAPSTADT shed roof tile.zip
-
tech draw KAPSTADT half width verge tile 90 mm right.zip
-
tech draw KAPSTADT half width tile.zip
-
tech draw KAPSTADT verge tile 90 mm left.zip
-
tech draw KAPSTADT verge tile 120 mm right.zip
-
tech draw KAPSTADT verge tile 120 mm left.zip
-
tech draw KAPSTADT ventilating tile.zip
-
tech draw KAPSTADT single tread aluminium.zip
-

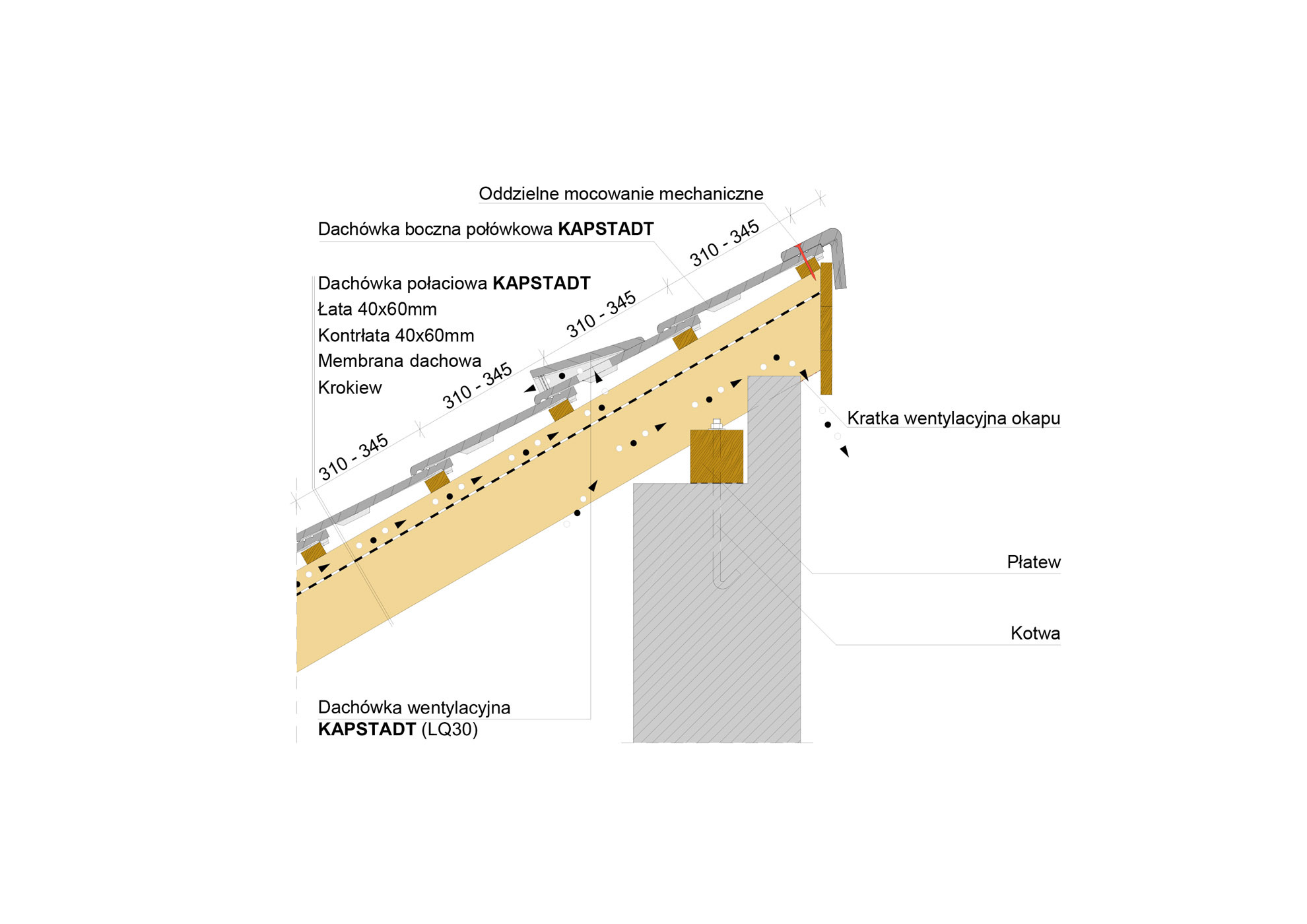

tech draw KAPSTADT shed roof verge tile right.zip
-
tech draw KAPSTADT shed roof verge tile left.zip
-
tech draw KAPSTADT shed half tile decorated.zip
-

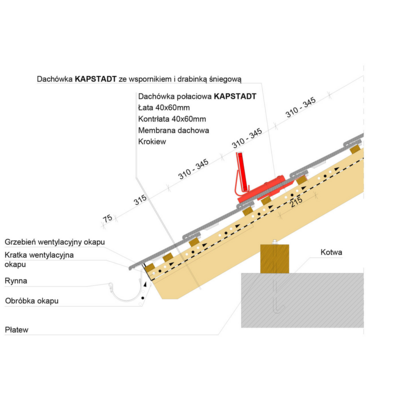

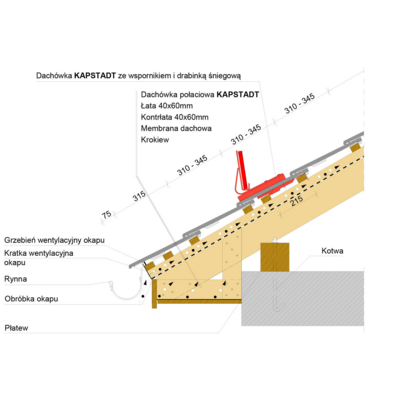

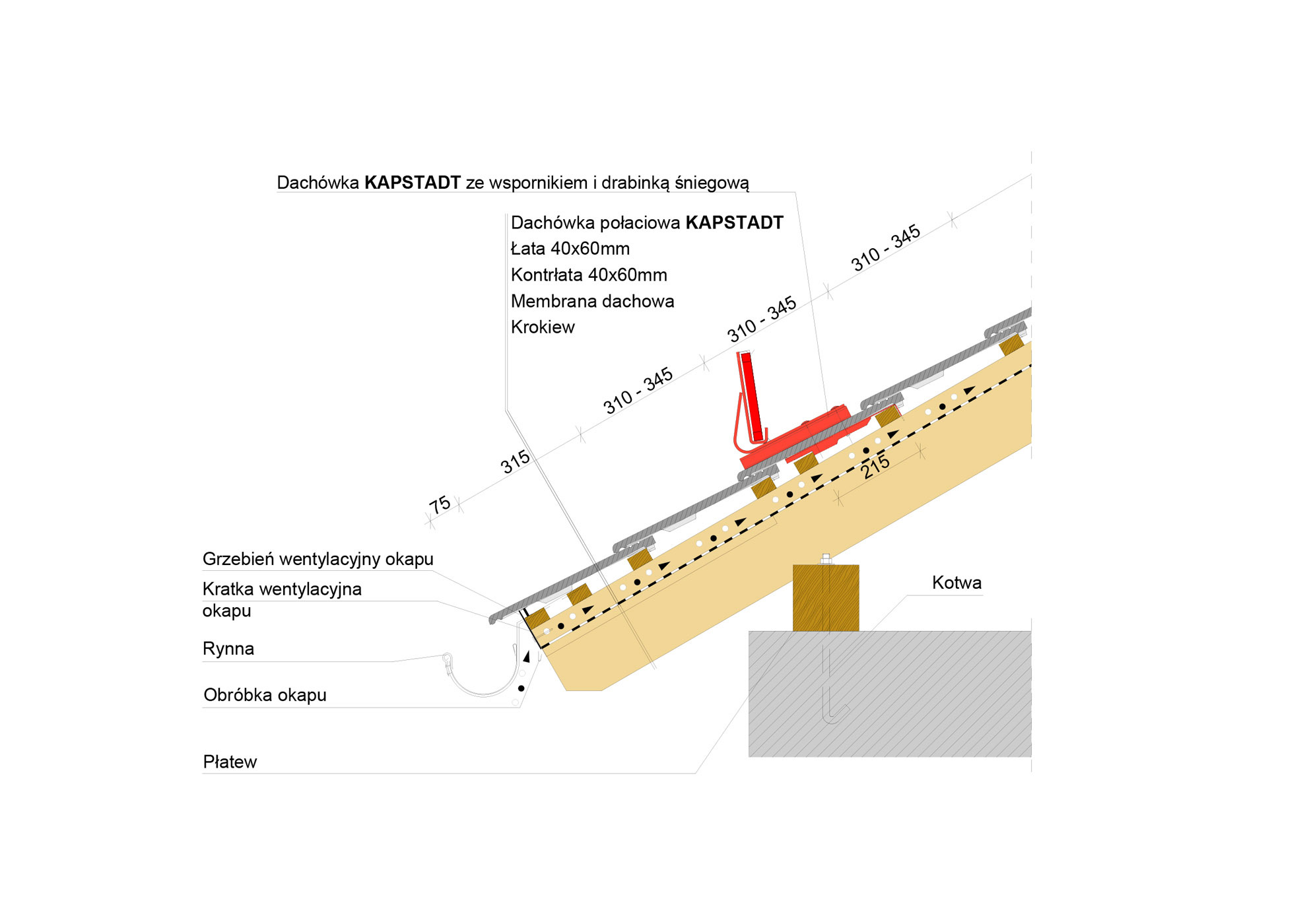

tech draw KAPSTADT mountain snow guard support.zip
-
tech draw KAPSTADT log bracket.zip
-
tech draw KAPSTADT half width verge tile 90 mm left.zip
-
tech draw KAPSTADT half width verge tile 120 mm right.zip
-
tech draw KAPSTADT half width verge tile 120 mm left.zip
-

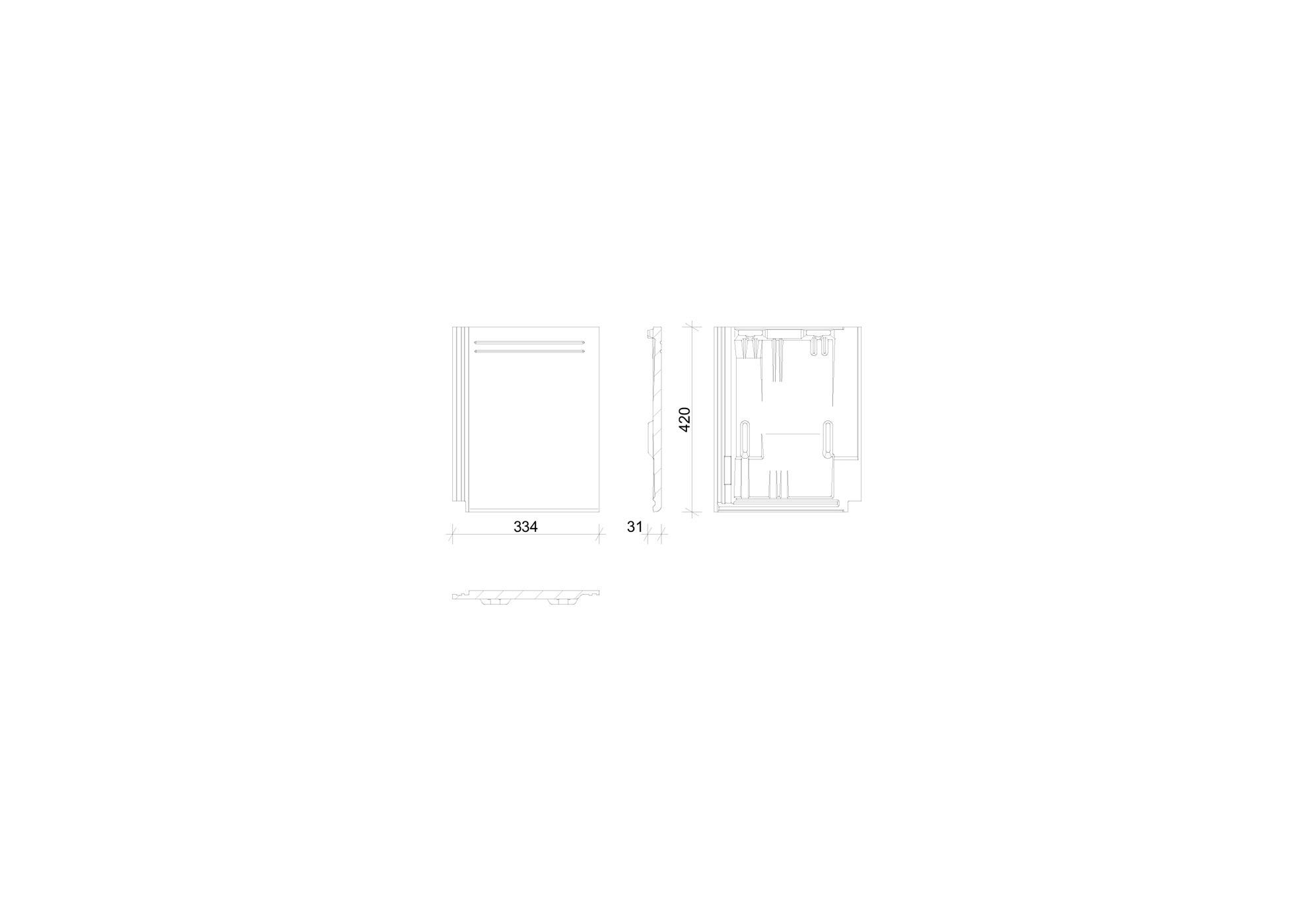

tech draw KAPSTADT basic tile.zip
-
tech draw KAPSTADT base fitting with tread.zip
-
tech draw KAPSTADT base fitting with snowu guard support pack.zip
-
tech draw KAPSTADT verge tile 90 mm right.zip
-
