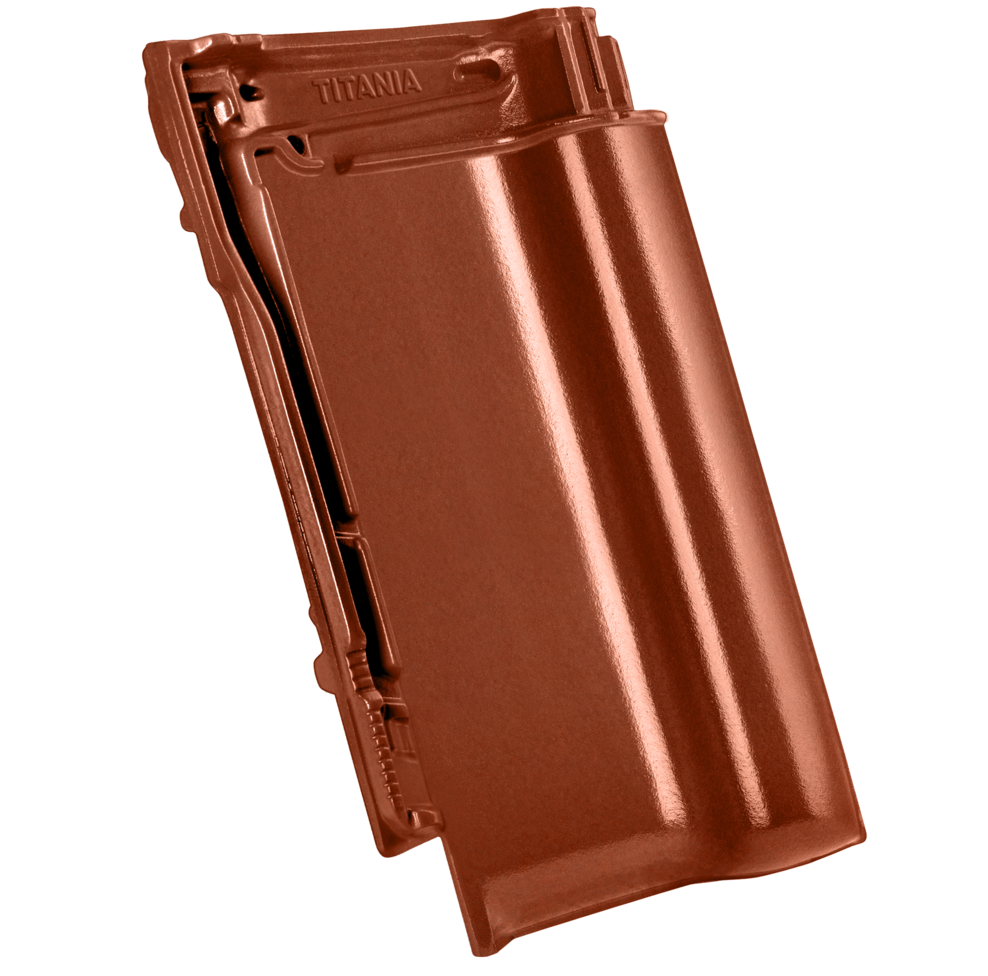

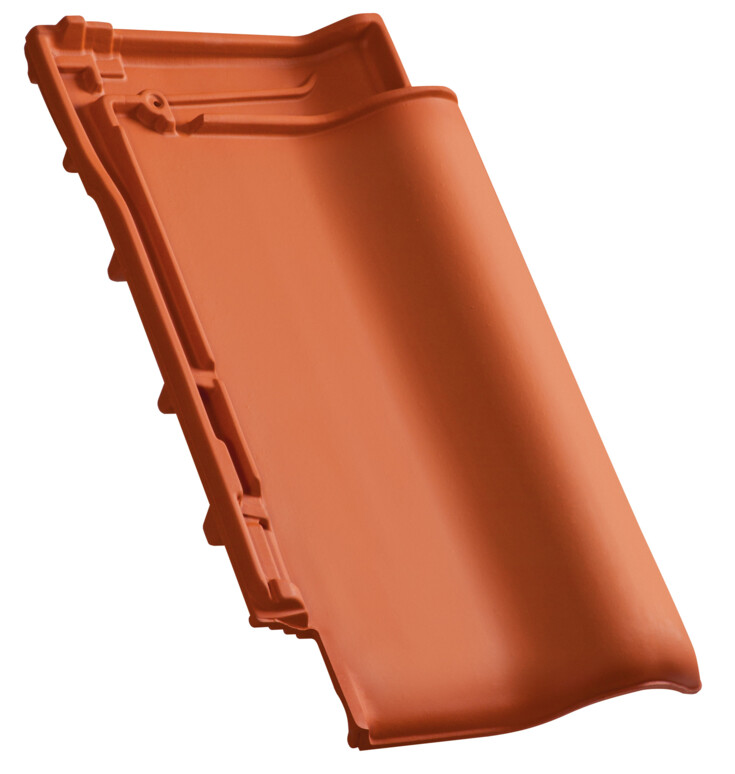

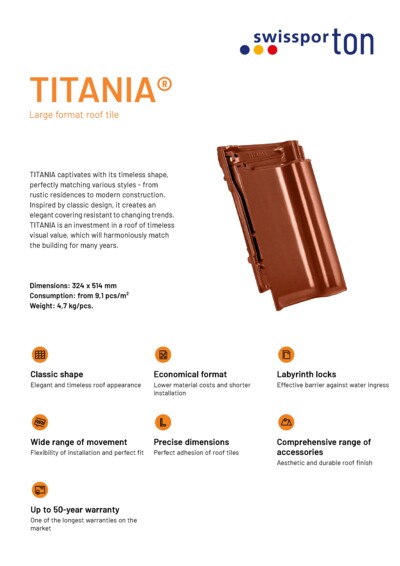

TITANIA®
TITANIA captivates with its timeless shape, perfectly matching various styles - from rustic residences to modern construction. Inspired by classic design, it creates an elegant covering resistant to changing trends. TITANIA is an investment in a roof of timeless visual value, which will harmoniously match the building for many years.
Dimensions: 324 x 514 mm
Consumption: from 9,1 pcs/m²
Weight: 4,7 kg/pcs.

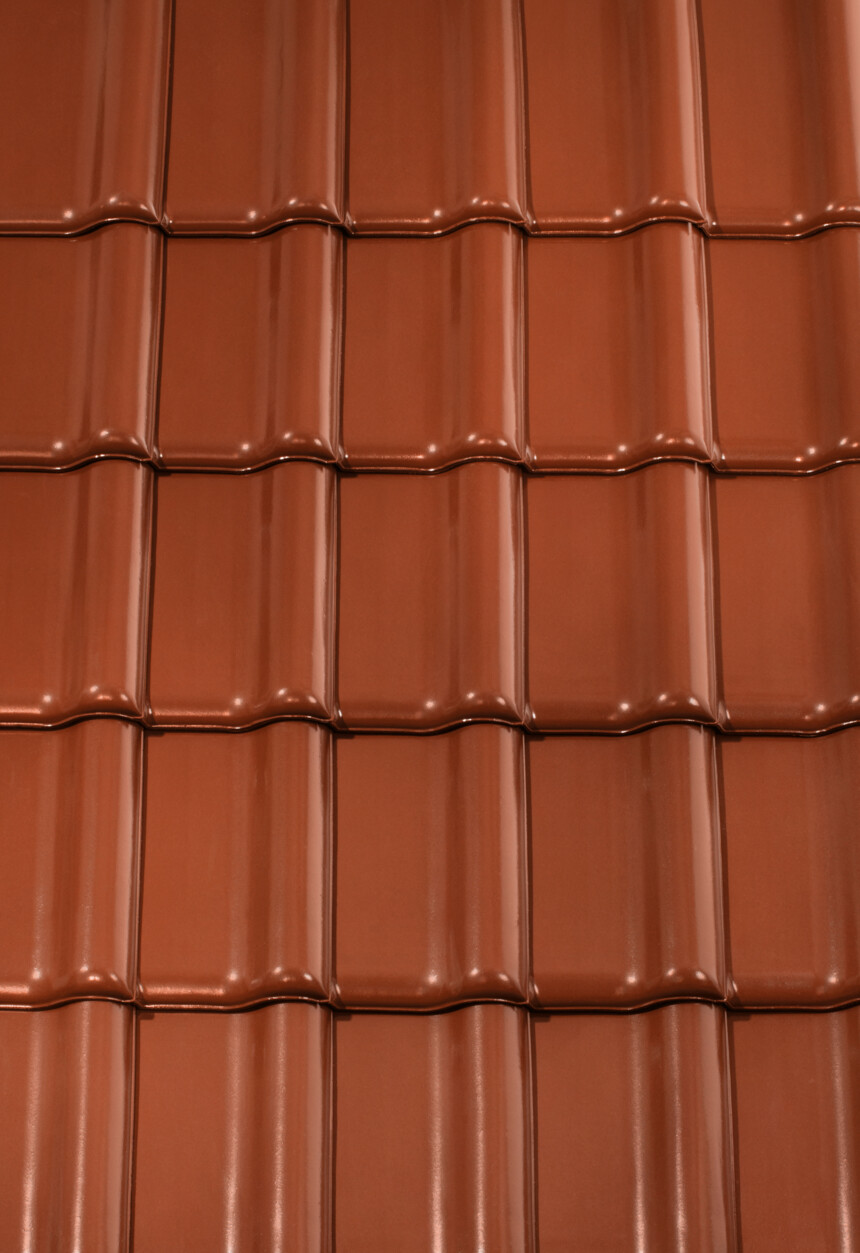

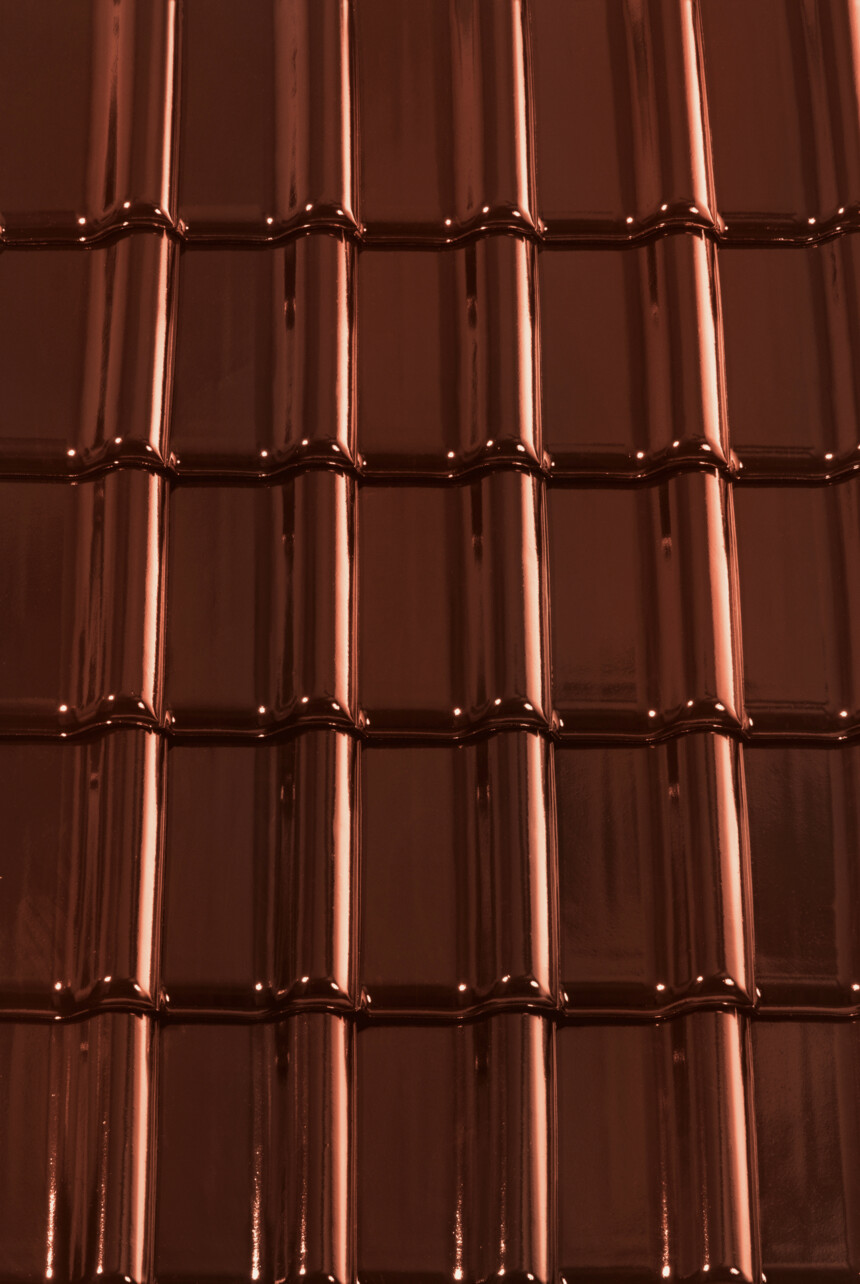

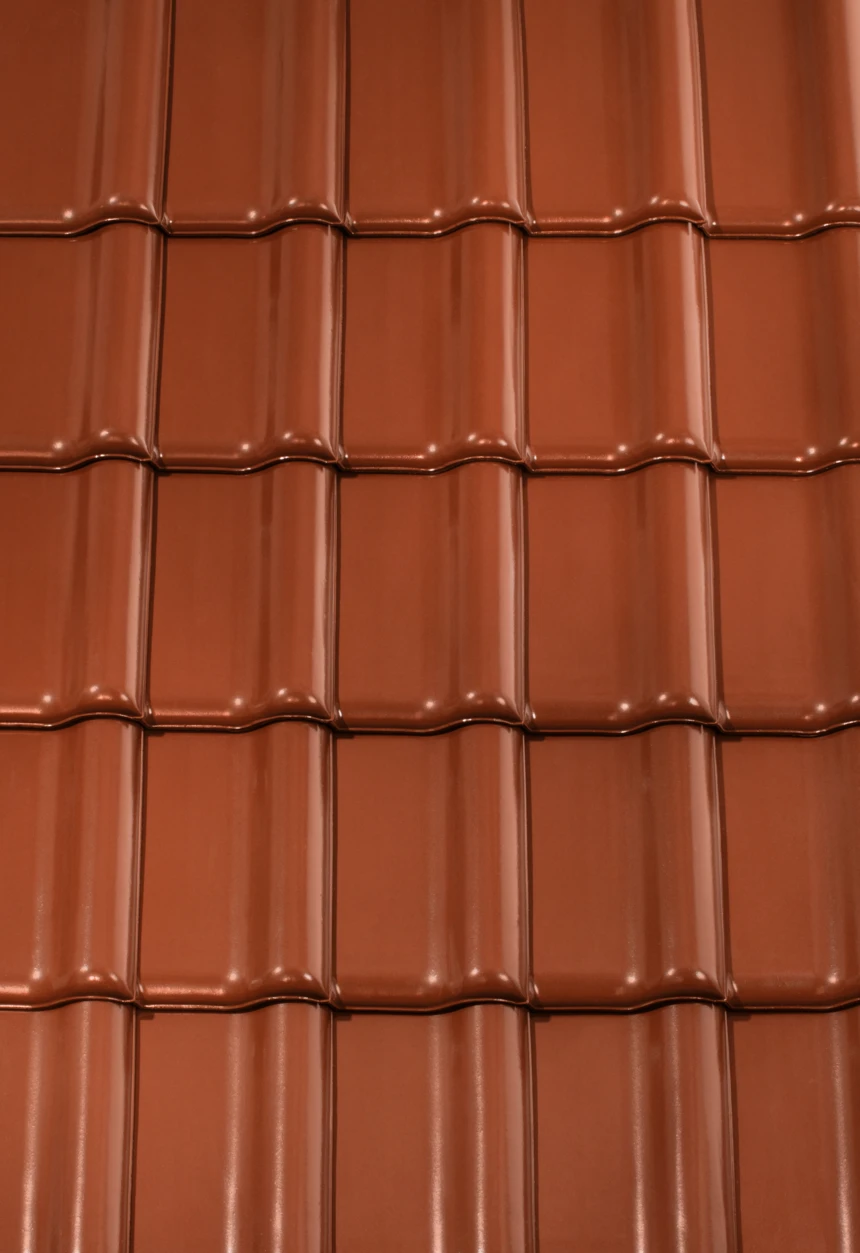

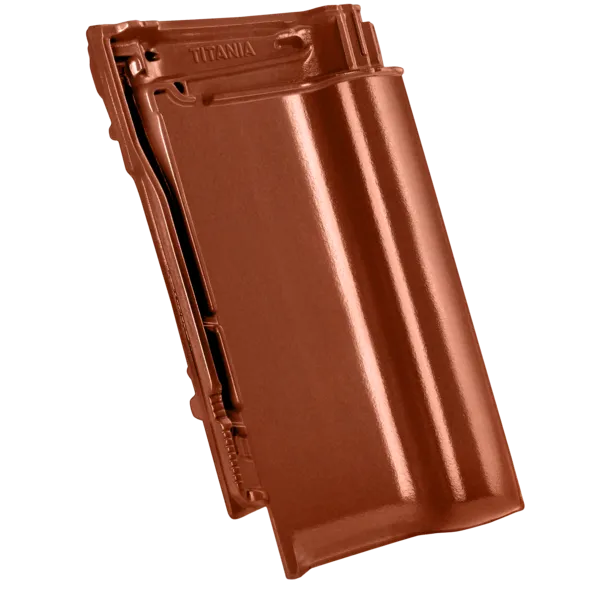

Copper red engobe
Check the most important advantages
Elegant and timeless roof appearance
The timeless shape with a distinctive wave gives the house an impressive and harmonious appearance.
Lower material costs and shorter installation
The 325 x 515 mm format and the use of 9 pcs./m² reduce costs and speed up installation.
Effective barrier against water ingress
Locks with 5 ribs and labyrinth construction protect the roof during heavy rainfall.
Flexibility of installation and perfect fit
The 43 mm sliding range allows for perfect adjustment to different rafter spacings.
Perfect adhesion of roof tiles
The ± 2 mm tolerance ensures perfect adhesion of the roof tiles and a uniform roof surface.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
One of the longest warranties on the market
Warranty protection for ceramic roof tiles provides peace of mind for decades.

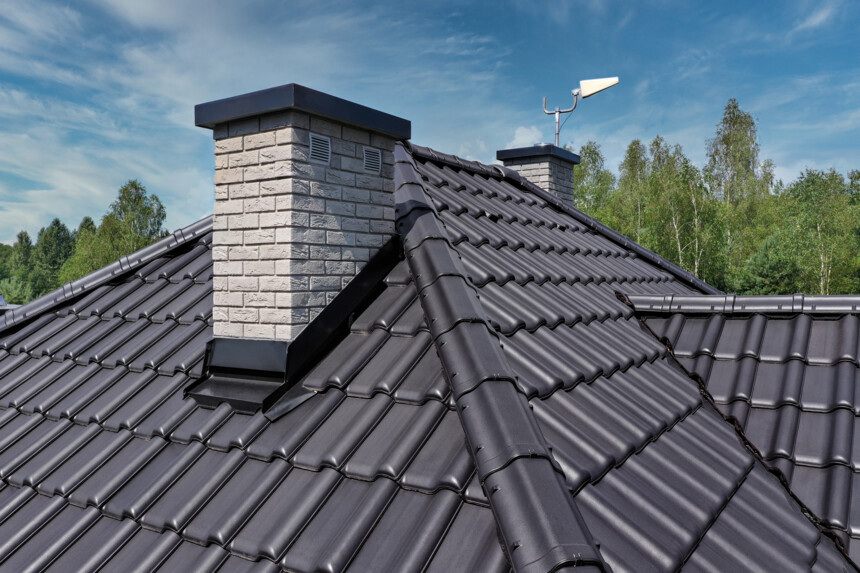

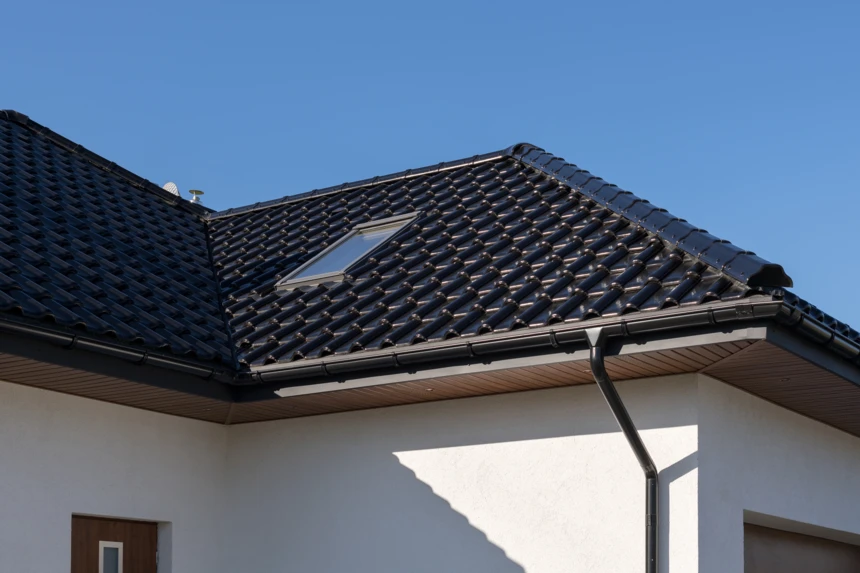

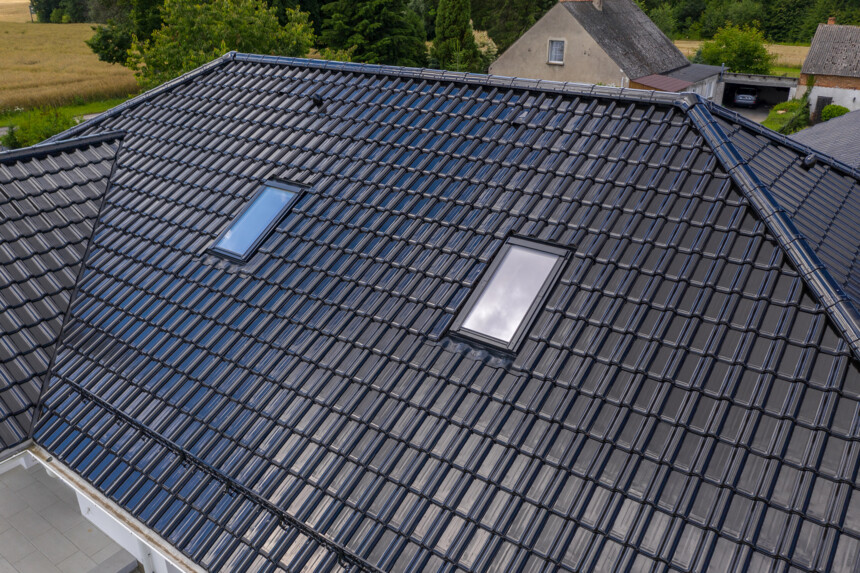

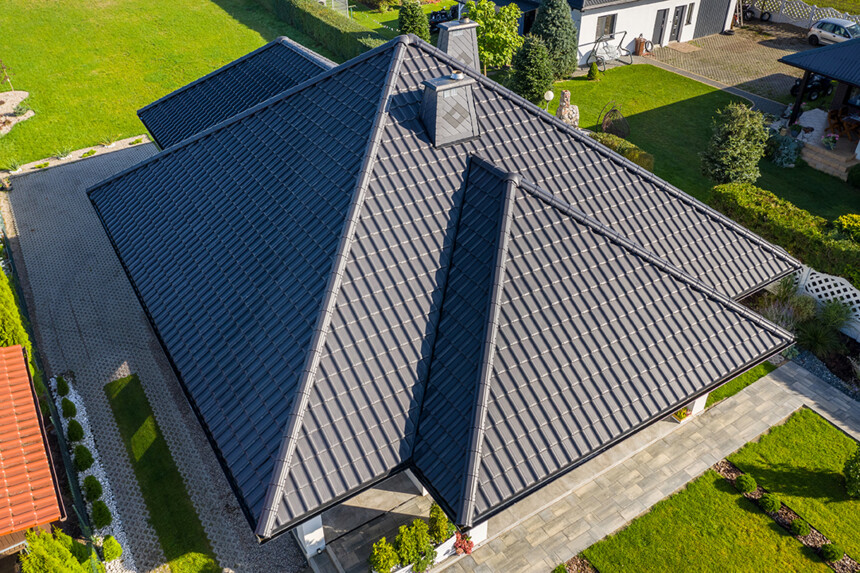

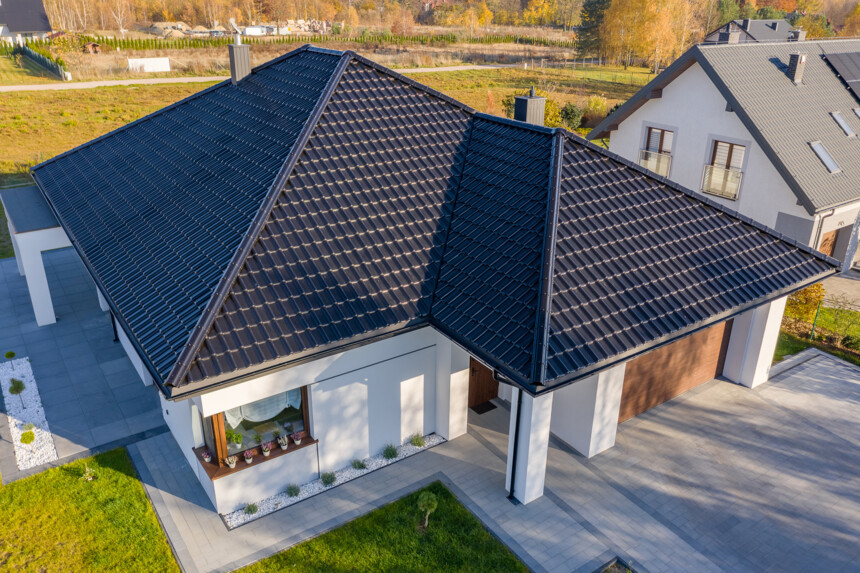

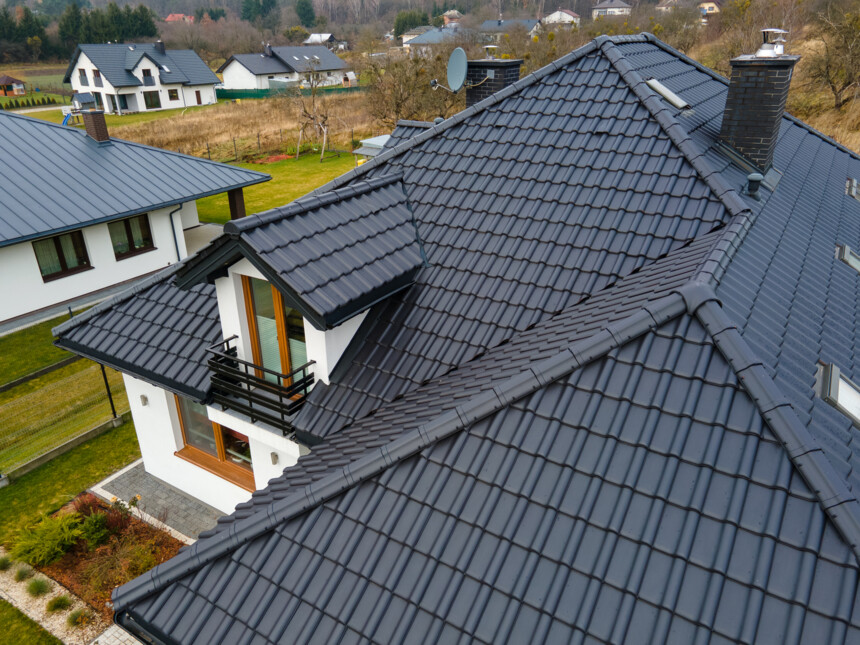

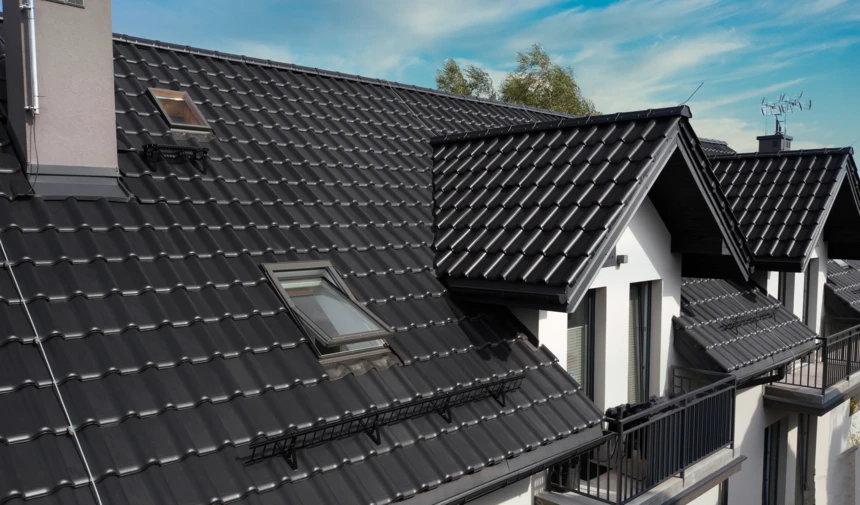

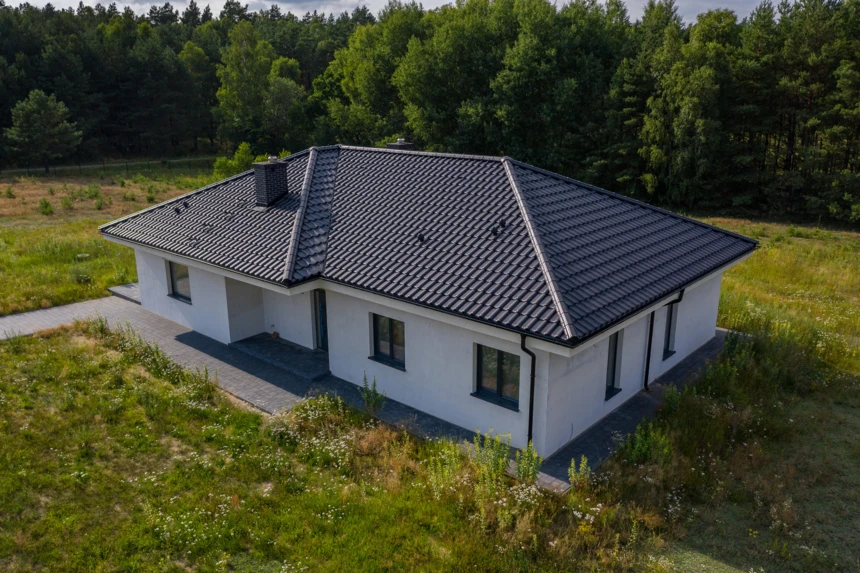

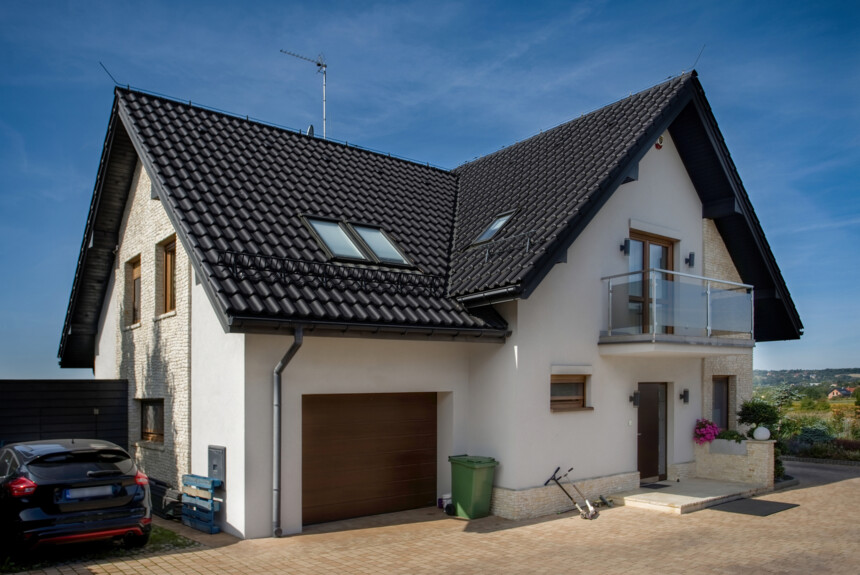

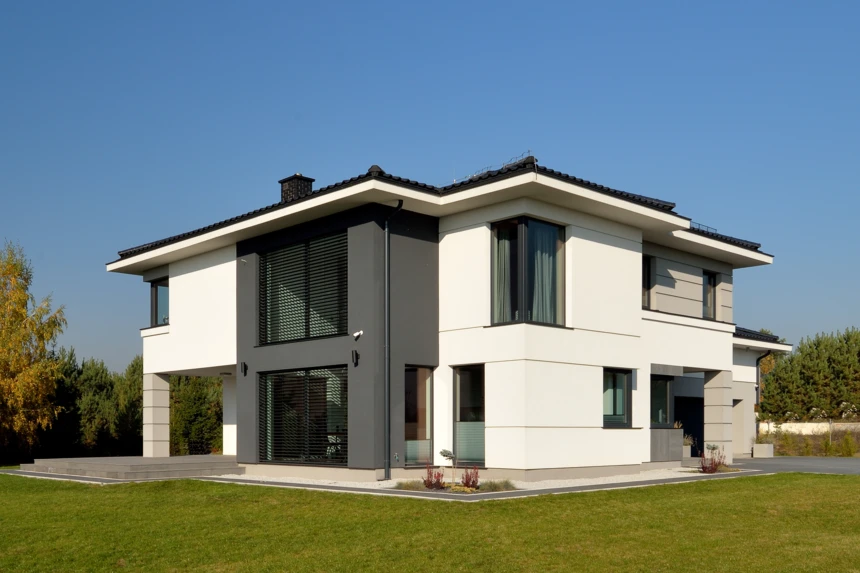

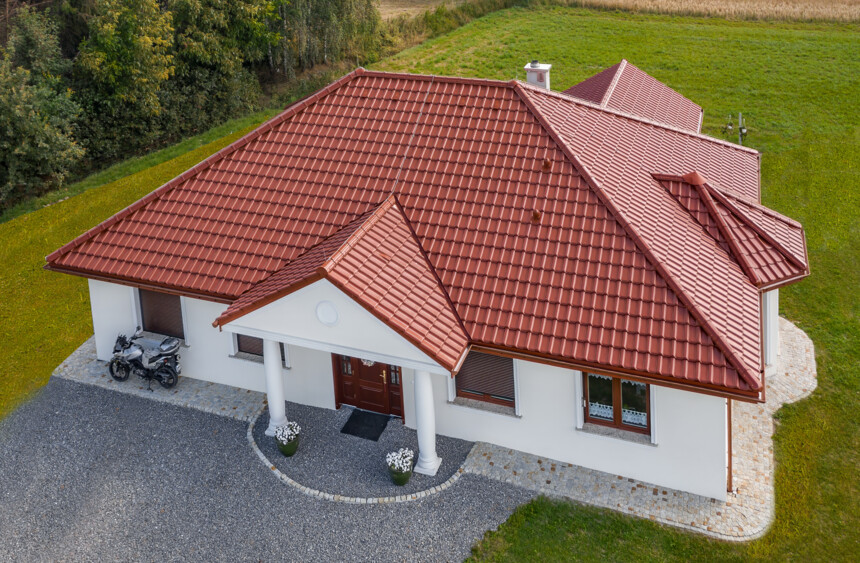

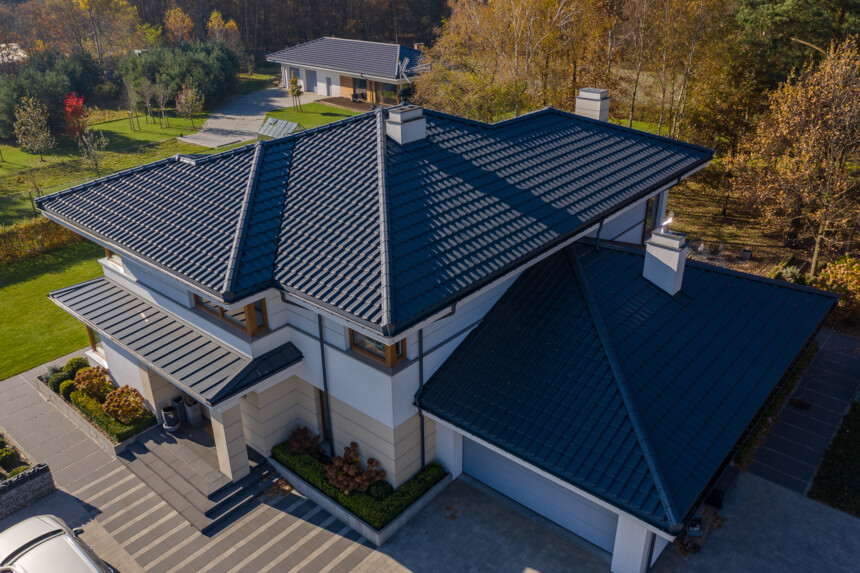

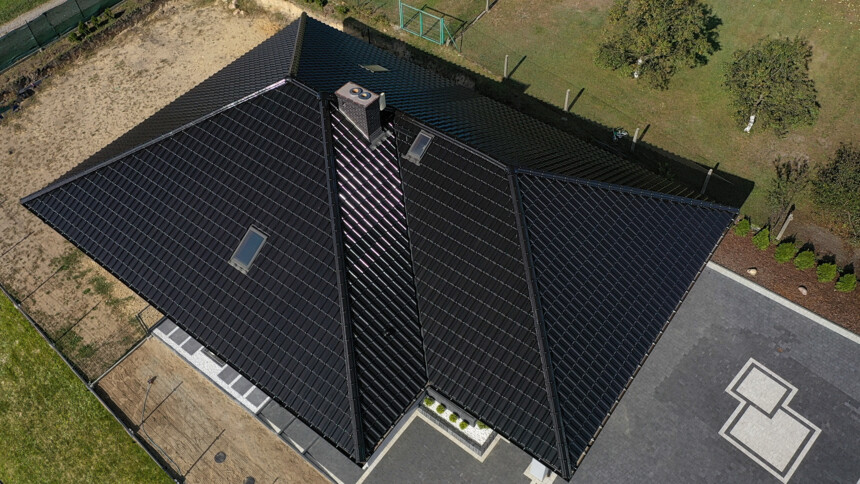

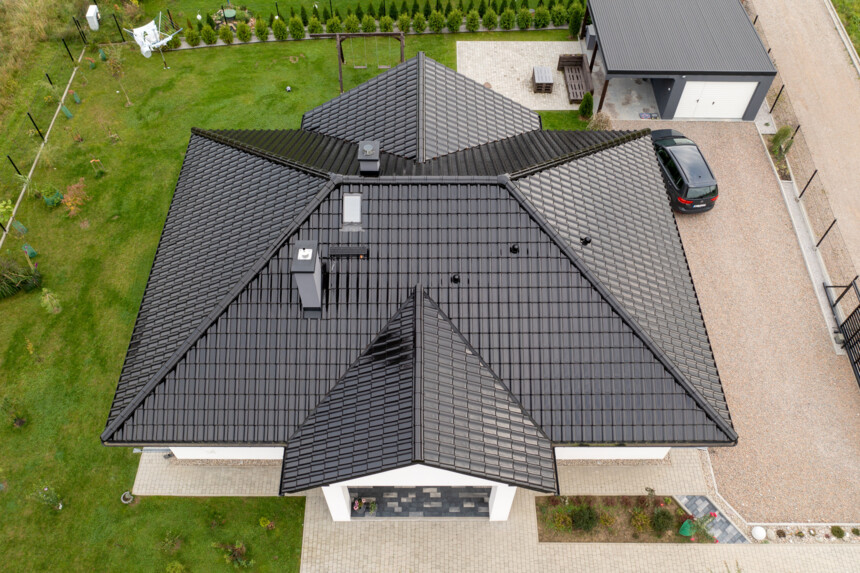

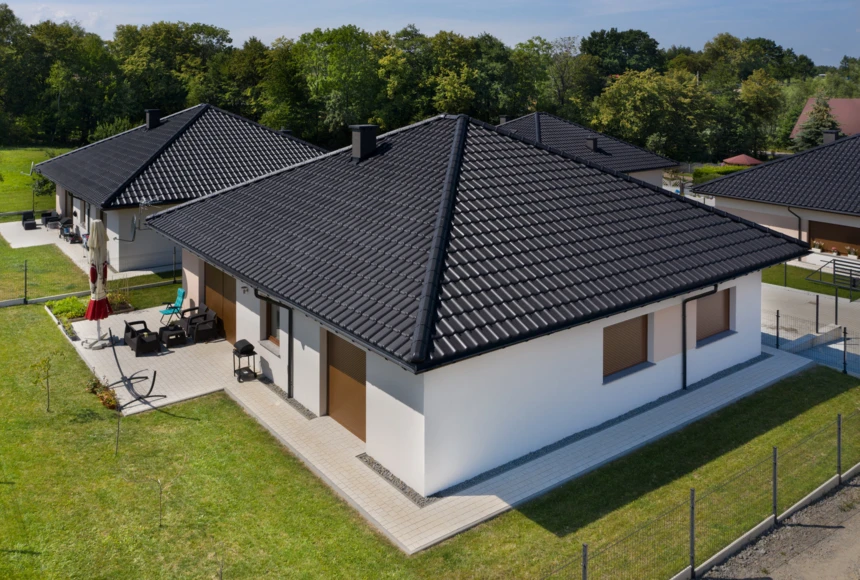

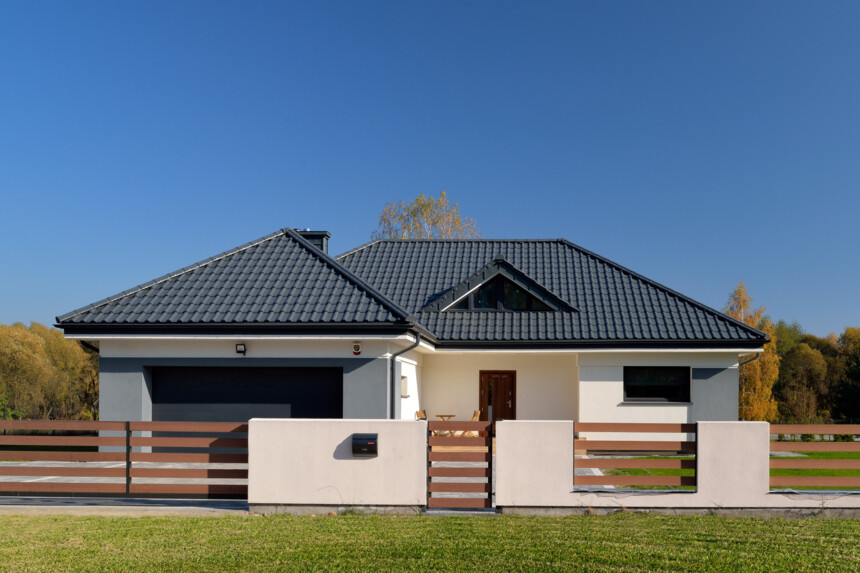

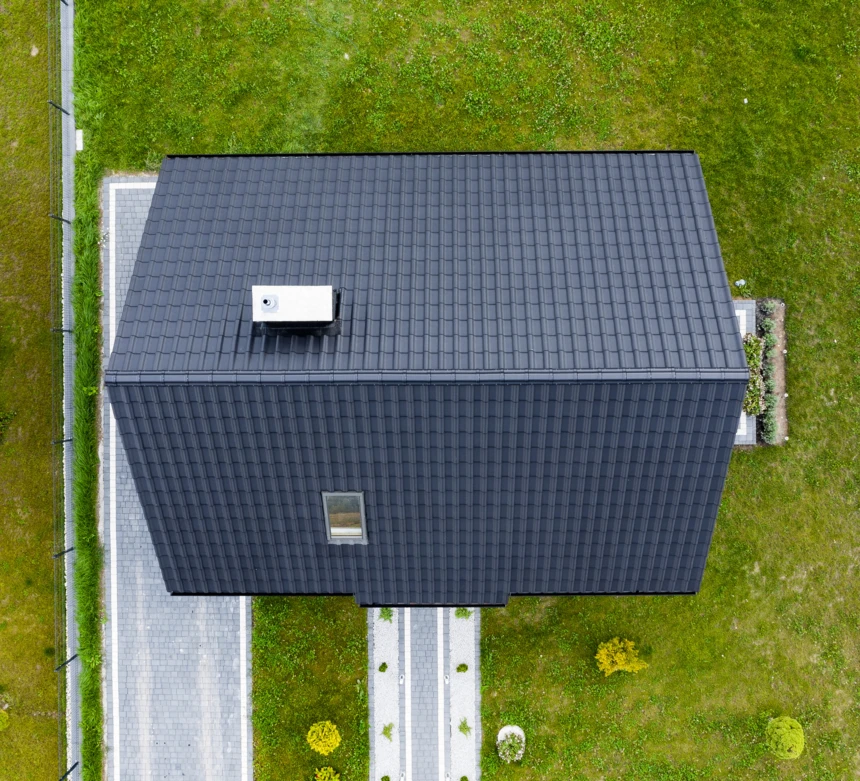

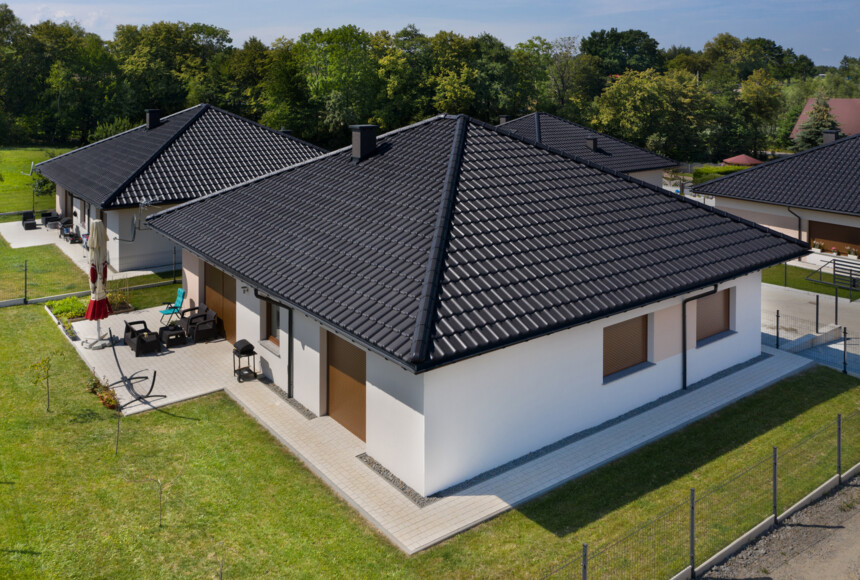

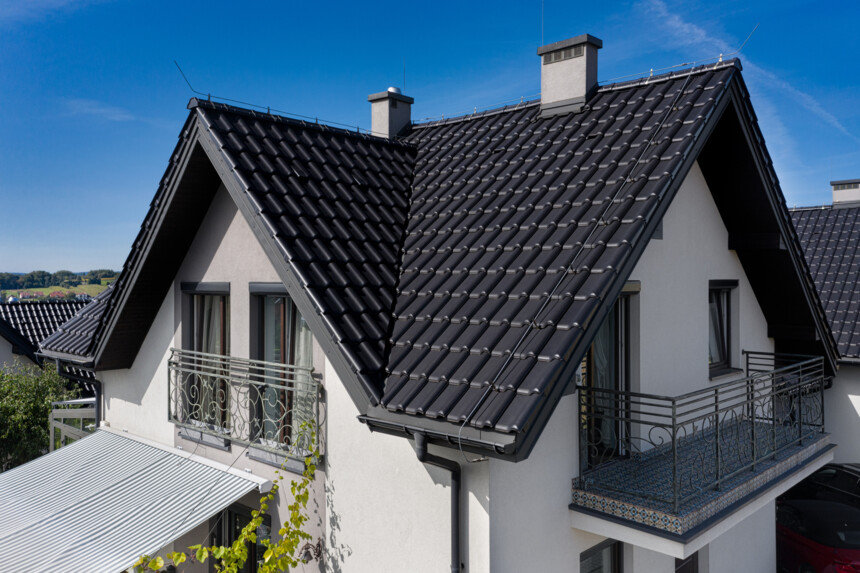

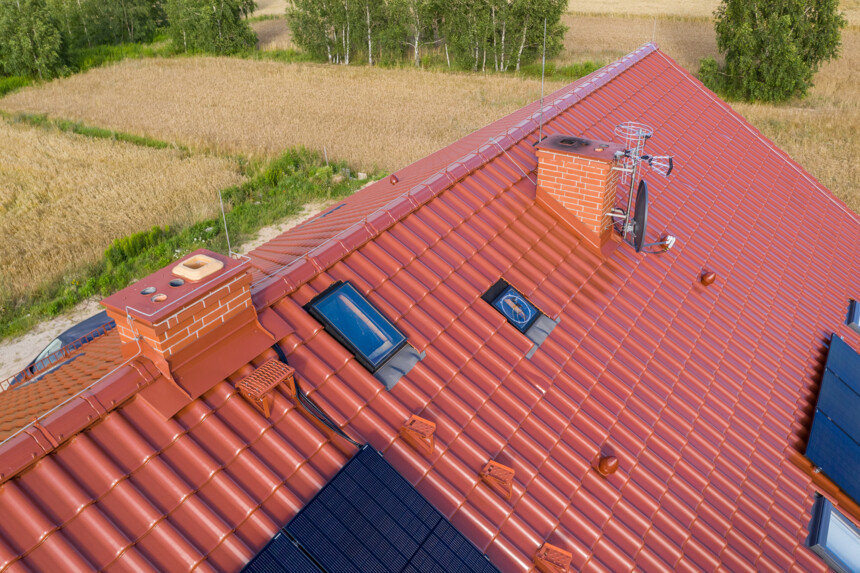

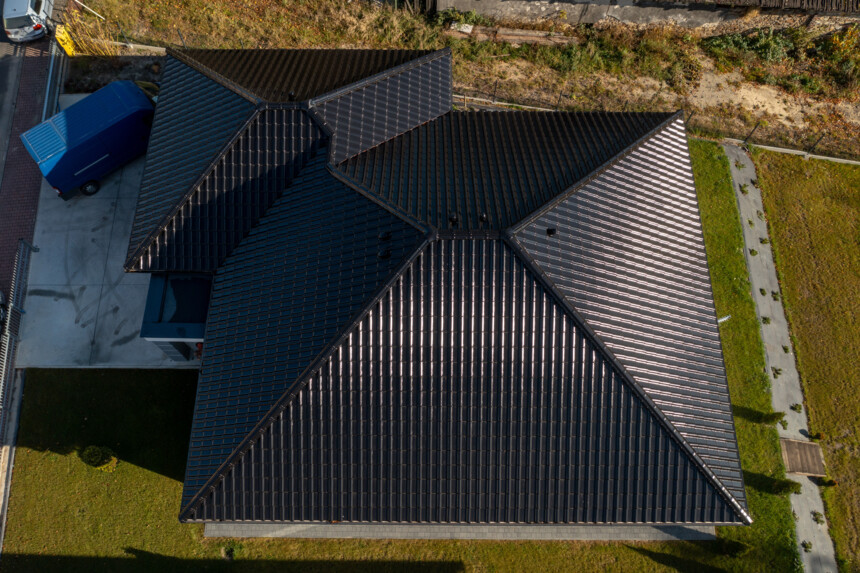

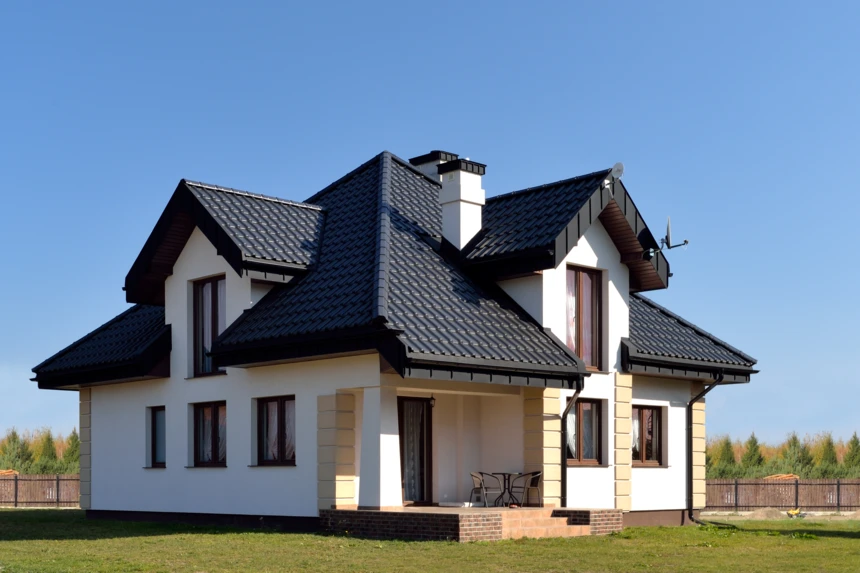

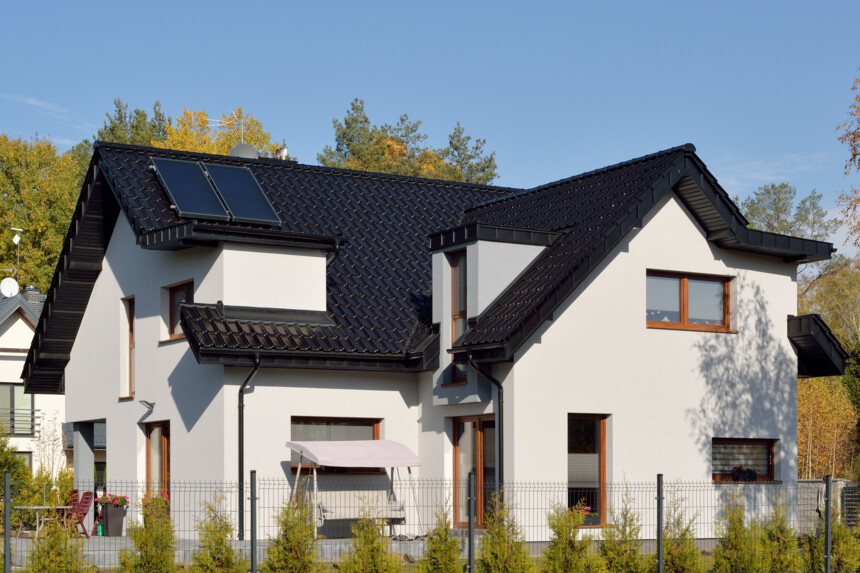

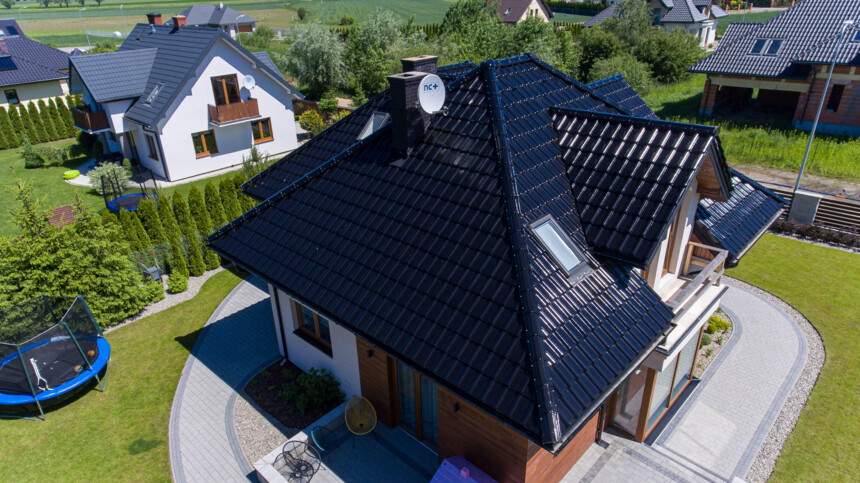

References
Technical data for TITANIA®
-
-
324 × 514 mm
-
-
-
min. 260 mm
-
av. 262 mm
-
max. 263 mm
-
-
-
min. 380 mm
-
av. 400 mm
-
max. 420 mm
-
-
-
9,1 Pcs/m²
-
-
-
9,5 Pcs/m²
-
-
-

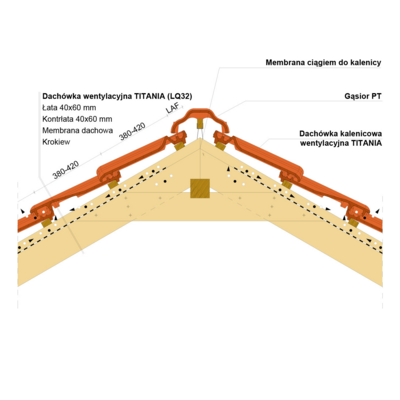

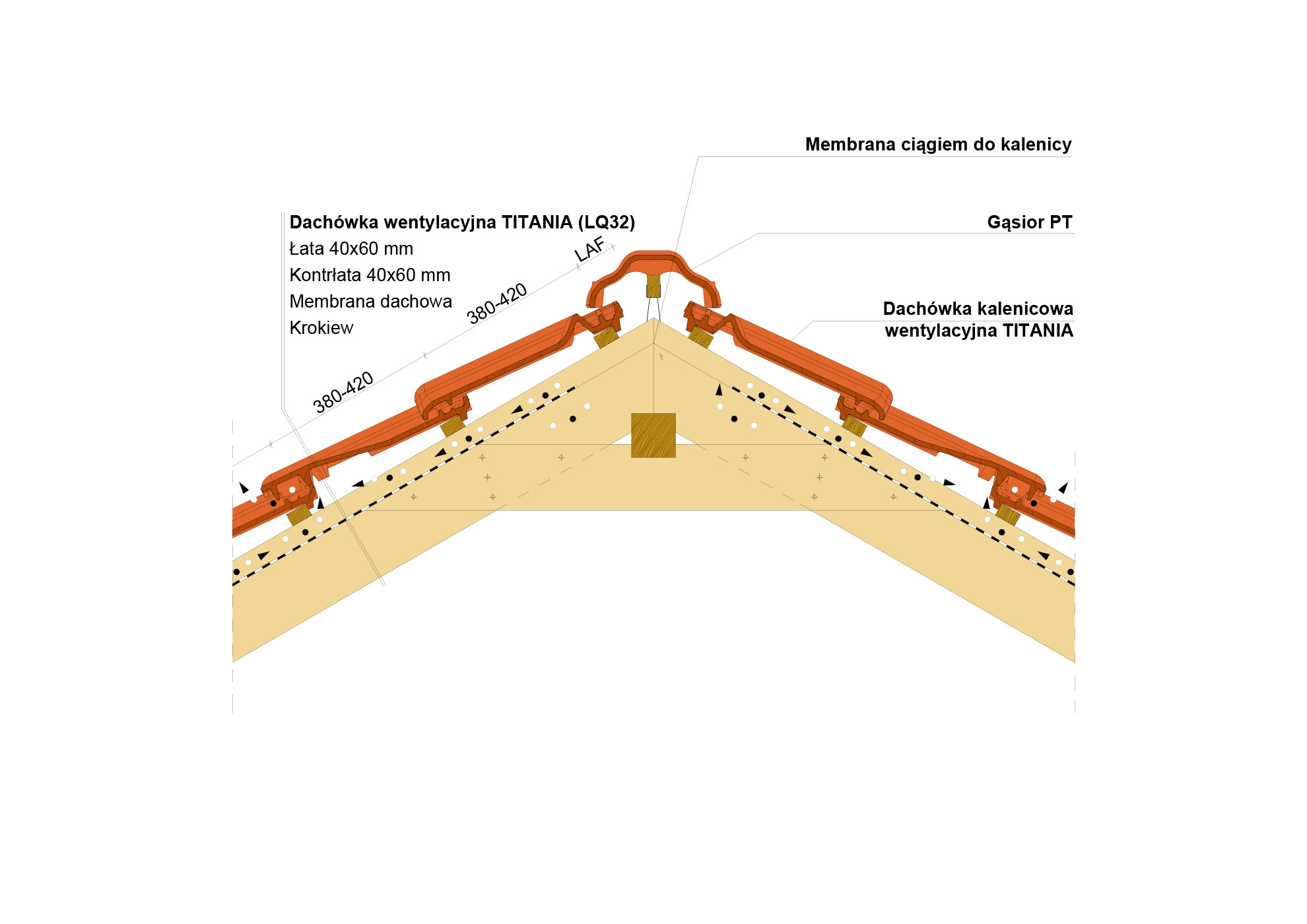

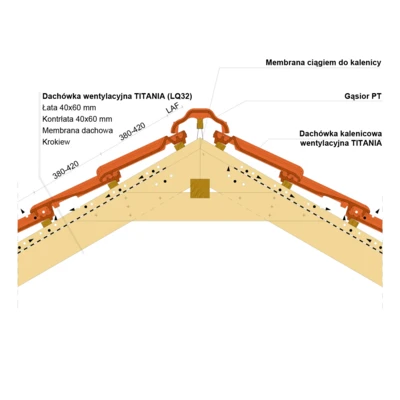

Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
PT
LAF
90
90
90
90
90
85
80
80
80
75
75
2.5 pcs/m
FLA
110
110
100
80
70
70
65
55
45
35
30
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
PT
LAF
90
90
90
85
85
80
75
70
65
60
60
2.5 pcs/m
FLA
120
120
110
90
80
80
75
65
55
45
40
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
PT
LAF
85
85
85
80
80
70
65
60
55
50
45
2.5 pcs/m
FLA
130
130
120
100
90
95
90
80
75
65
70
-
Choose the best accessories

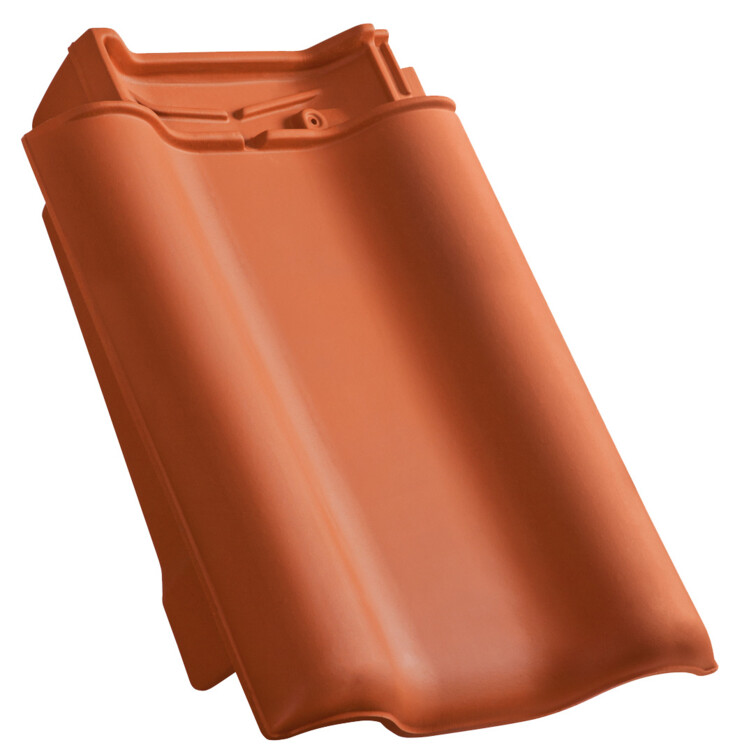

TITANIA Verge tile Left
TITANIA Verge tile Right

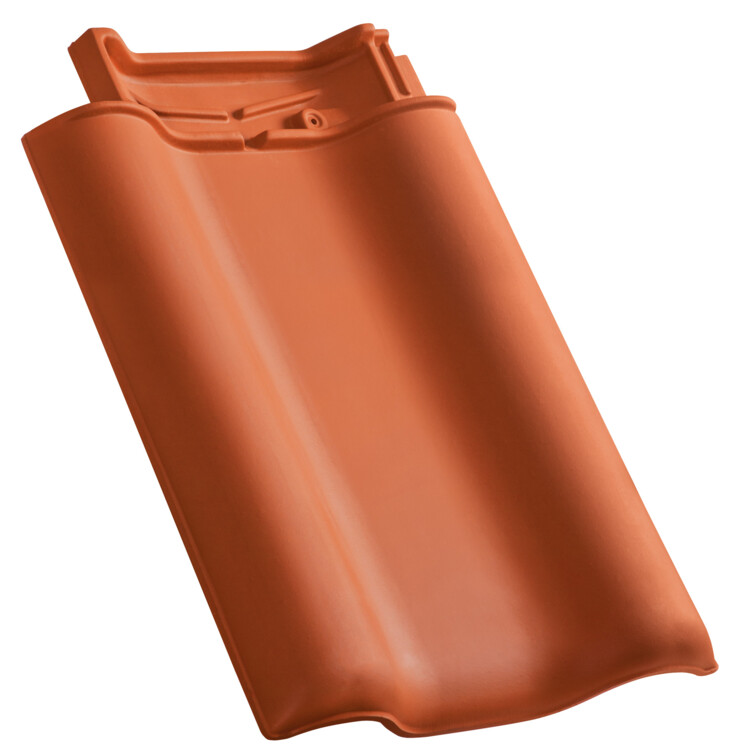

TITANIA Double roll tile

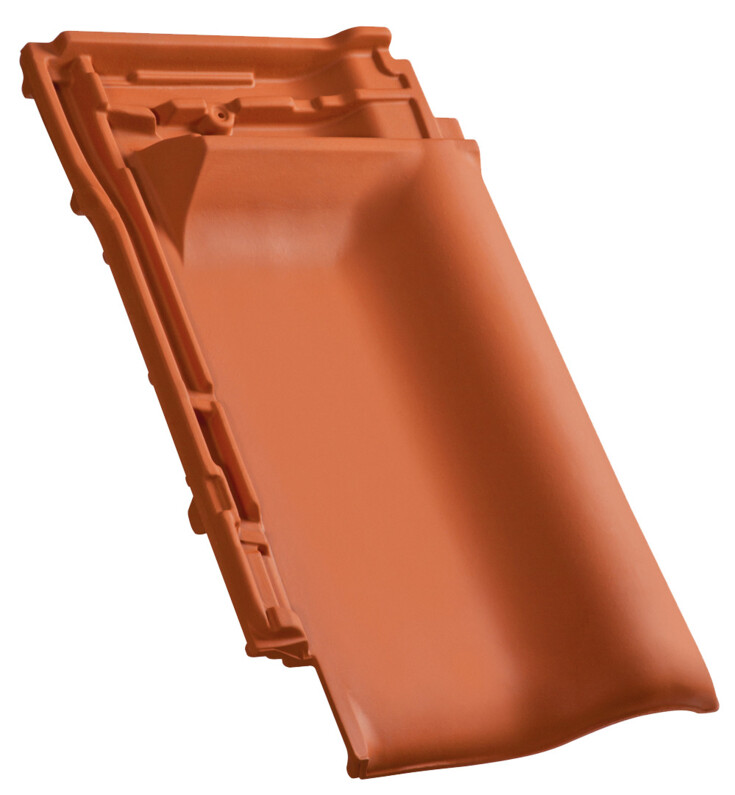

TITANIA Ridge connection ventilating tile
Downloads
-
-
tech draw TITANIA base element in aluminium.zip
-
tech draw TITANIA aerial antenne.zip
-
tech draw TITANIA verge tile right.zip
-
tech draw TITANIA ventilating tile.zip
-
tech draw TITANIA solar entry tile.zip
-
tech draw TITANIA verge tile left.zip
-

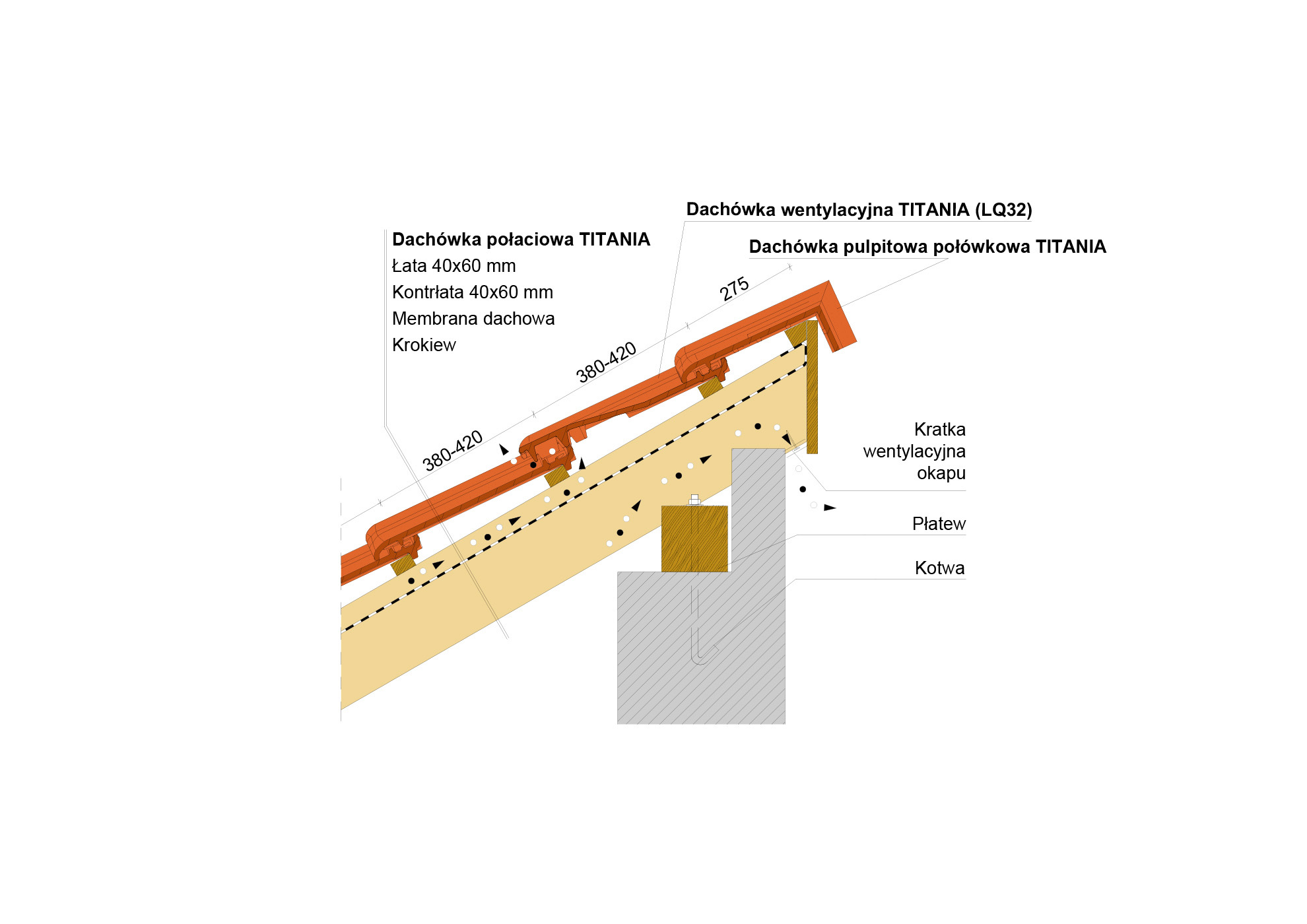

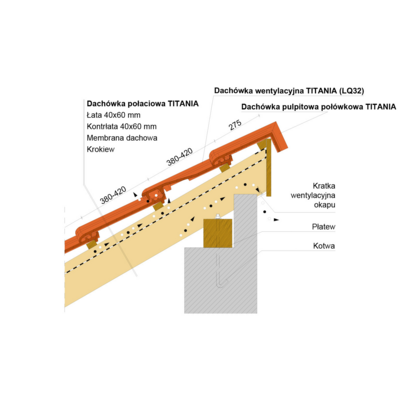

tech draw TITANIA shed roof verge tile right.zip
-
