BREMA®
The BREMA concrete roof tile refers in shape to the monk-nun roof tile known for centuries. Thanks to the use of modern production technology, the historical form has been enriched with numerous construction solutions that provide excellent utility parameters. BREMA is a roof tile whose timeless form emphasizes the timeless beauty of the roof.

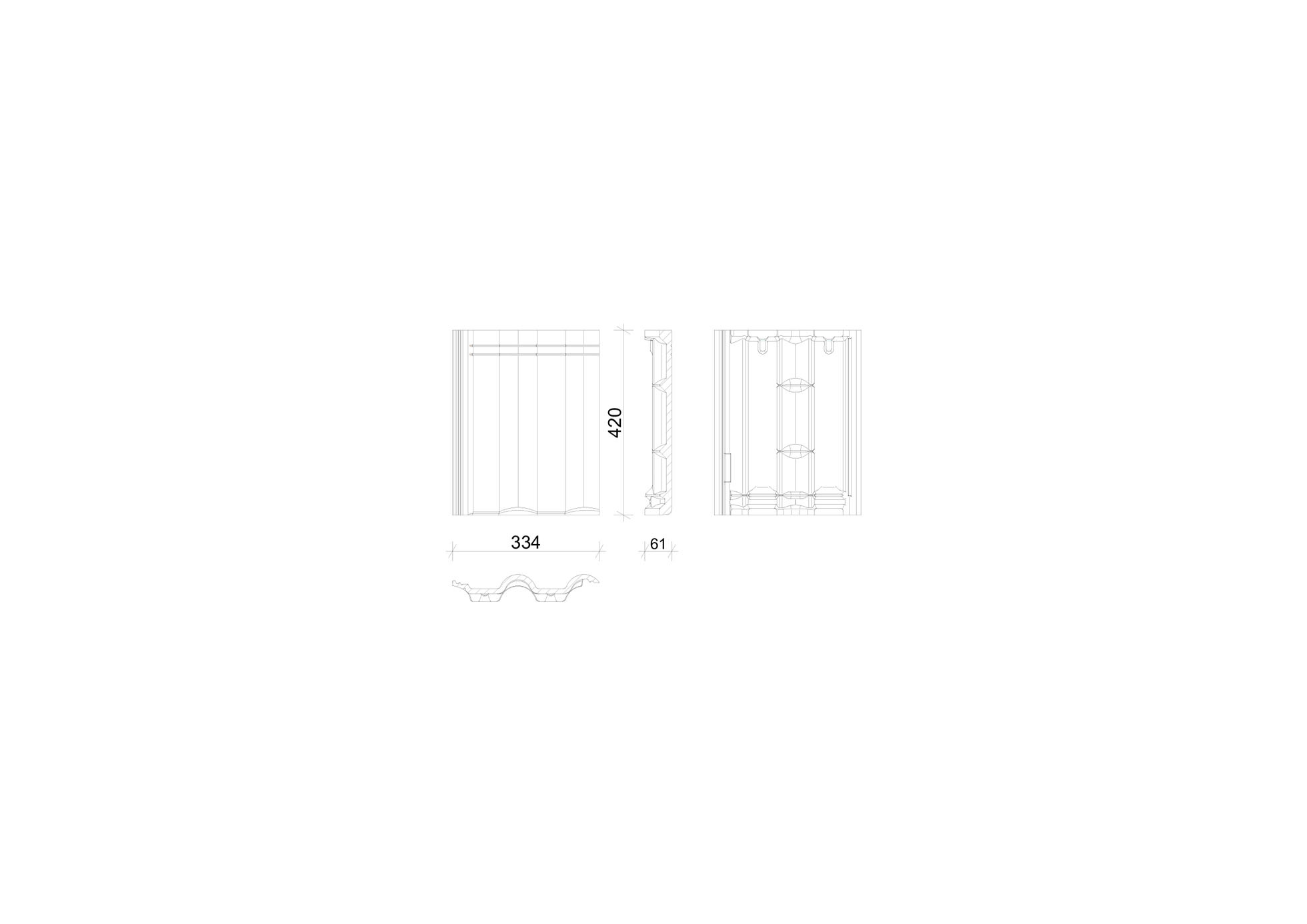

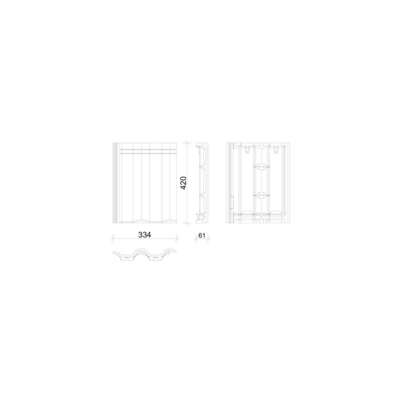

Dimensions: 334 x 420 mm
Consumption: from 9.7 pcs/m2
Weight: 4.3 kg/pcs.

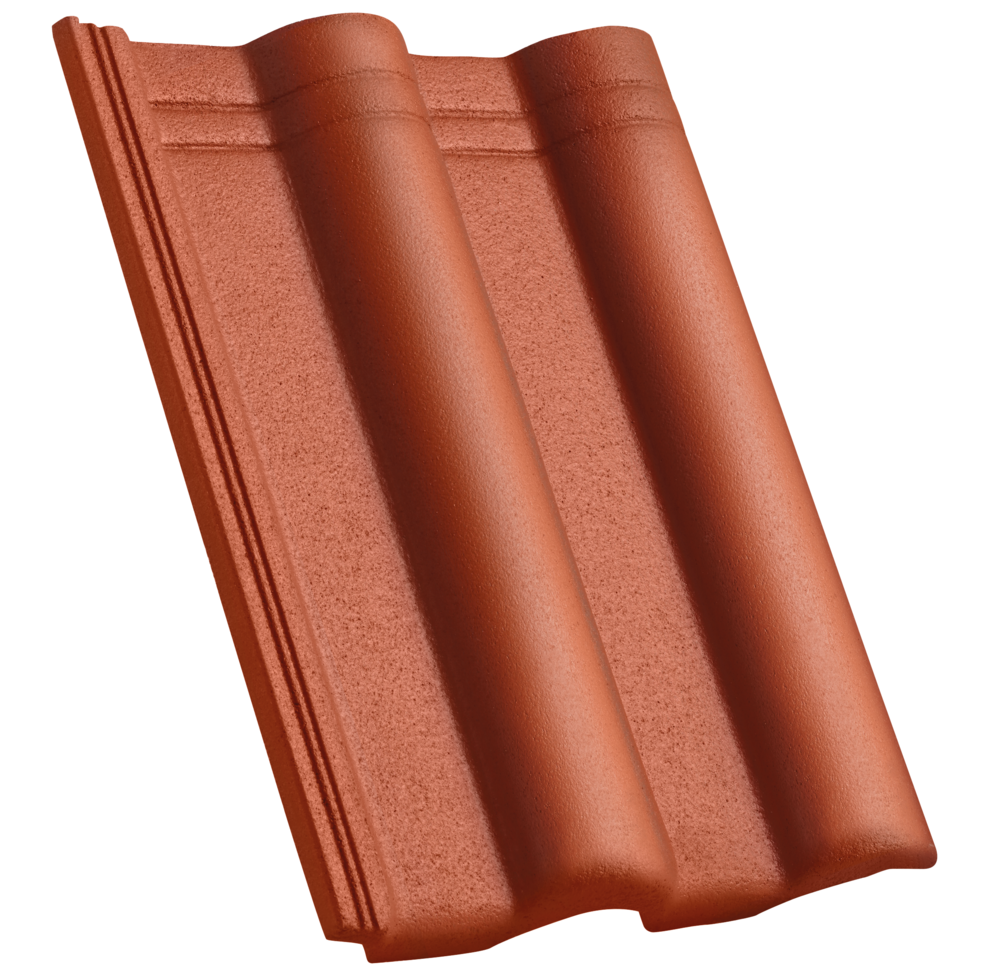

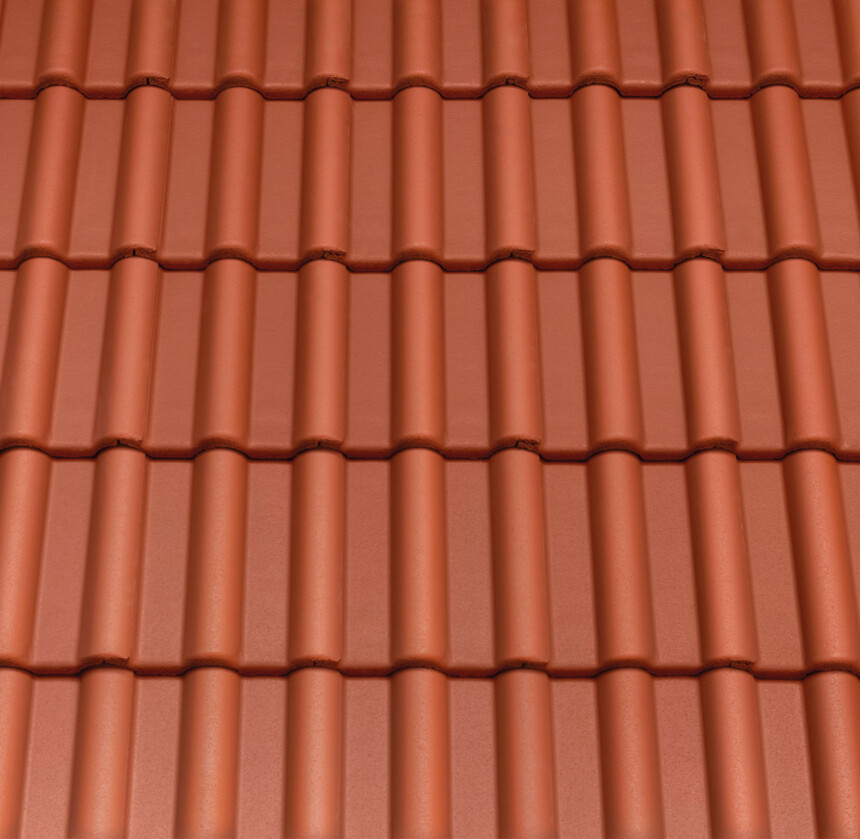

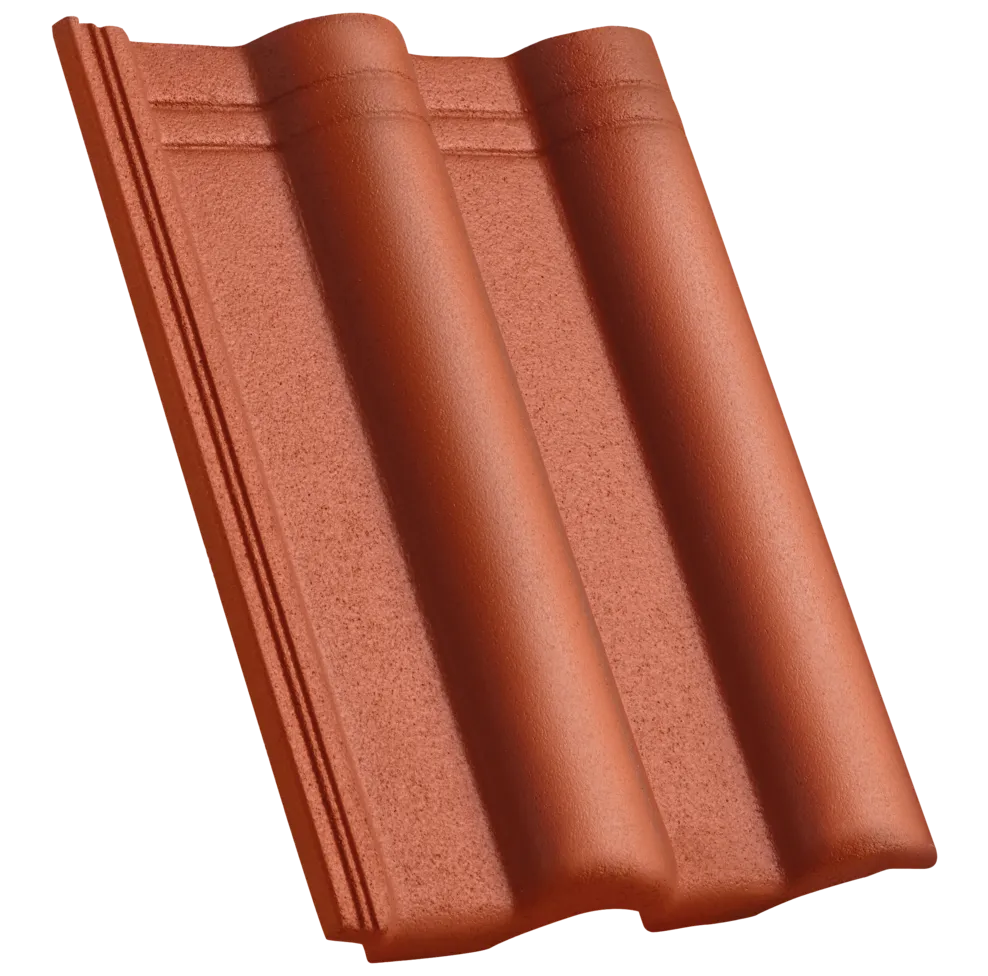

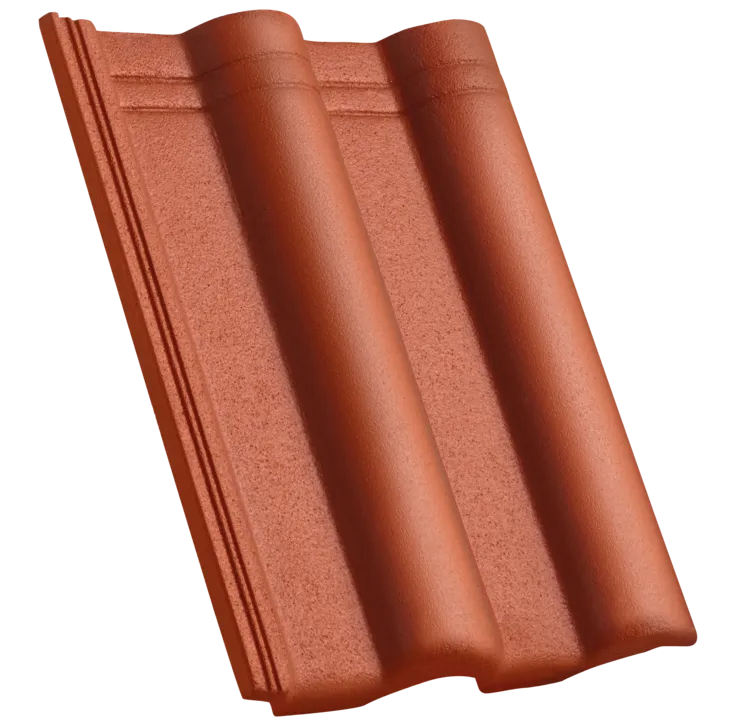

Red PLANAR
Check the most important advantages
Reference to the centuries-old monk-nun roof tile
The roof tile, thanks to its historical form, emphasizes the timeless beauty of the roof.
Overlaps and smooth edges protect against moss and sediment
The contoured shape protects the roof from moss growth and sediment formation.
Increased resistance to wind and snow loads
The solid ribbed bottom increases the resistance of the roof surface to loads.
UV and weather-resistant surfaces
The modern surface limits the degree of water penetration into the roof tile structure.
Natural ingredients and minimal energy consumption in production
The production technology makes the tile an environmentally friendly product.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.

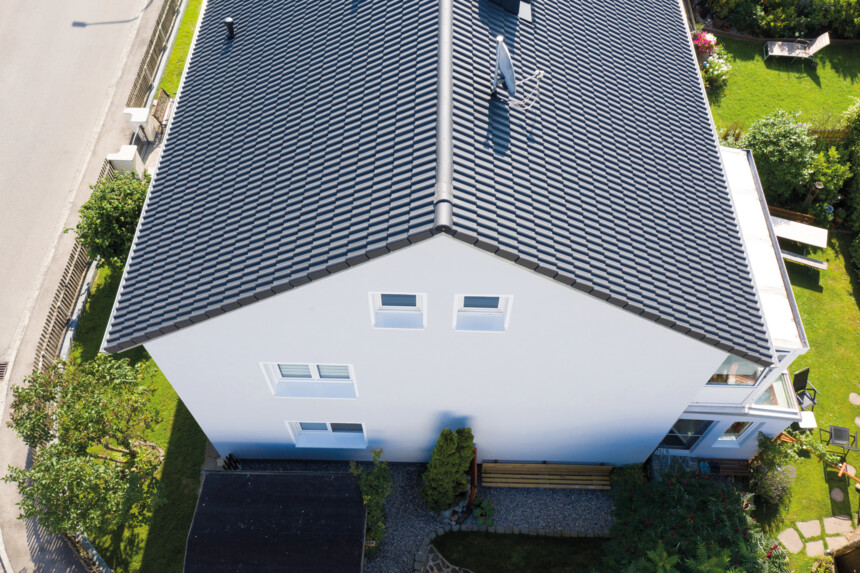

References
Technical data for BREMA®
-
-
334 × 420 mm
-
-
-
300 mm
-
-
-
300 mm
-
-
-
300 mm
-
-
-
310 mm
-
-
-

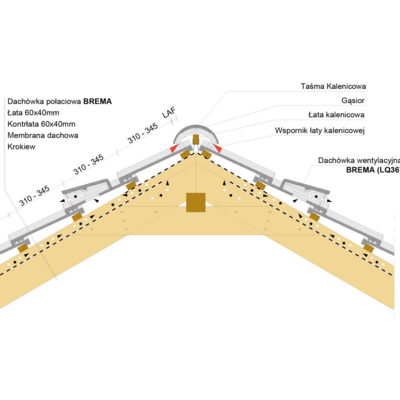

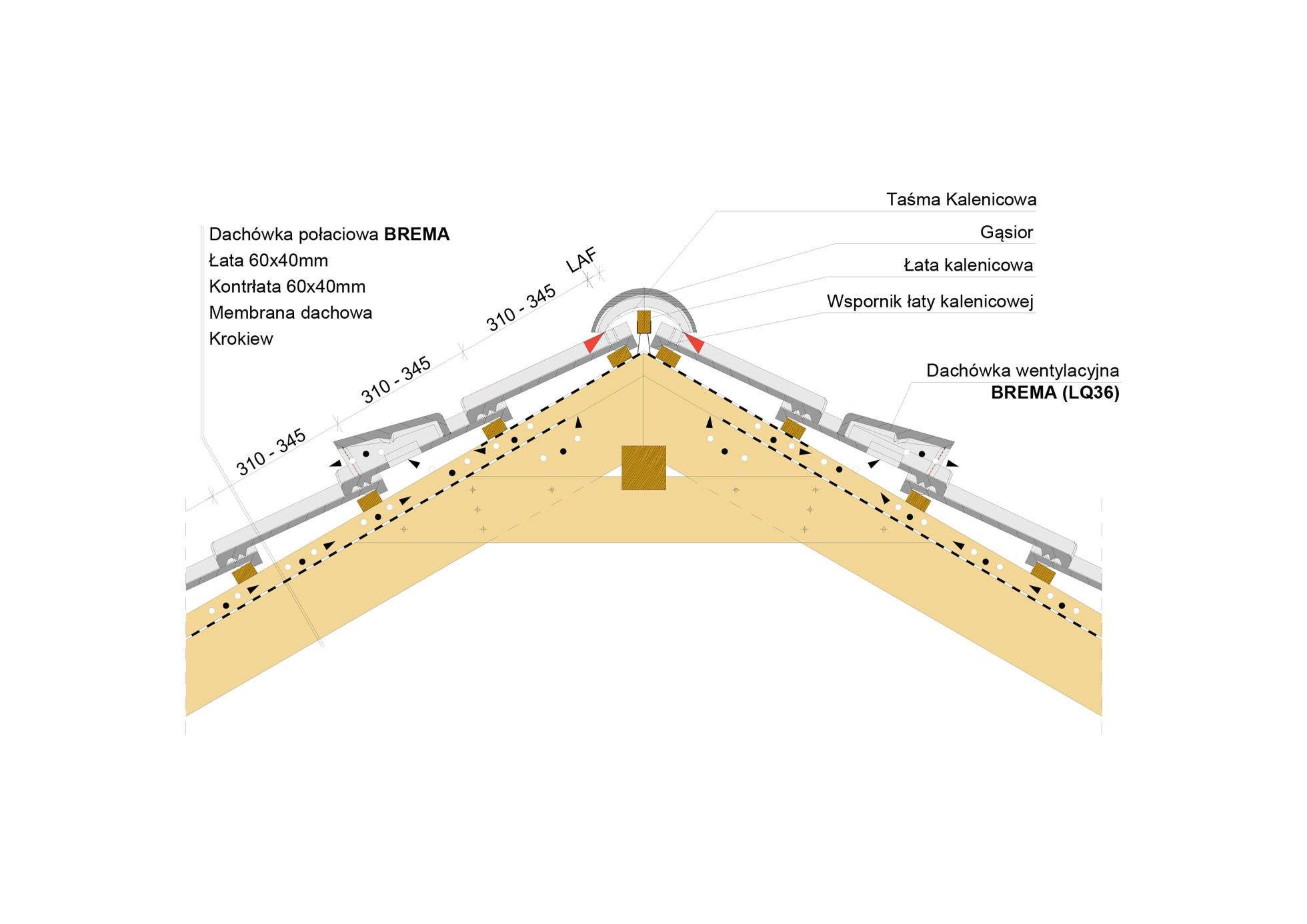

Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
LAF
35
33
32
30
29
28
26
25
25
25
FLA
113
107
102
98
93
89
85
82
79
76
-
Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
Ridge tile universal
LAF
35
33
32
30
29
28
26
25
25
25
2.5 pcs/m
FLA
122
117
112
108
104
101
98
92
89
86
-
Choose the best accessories

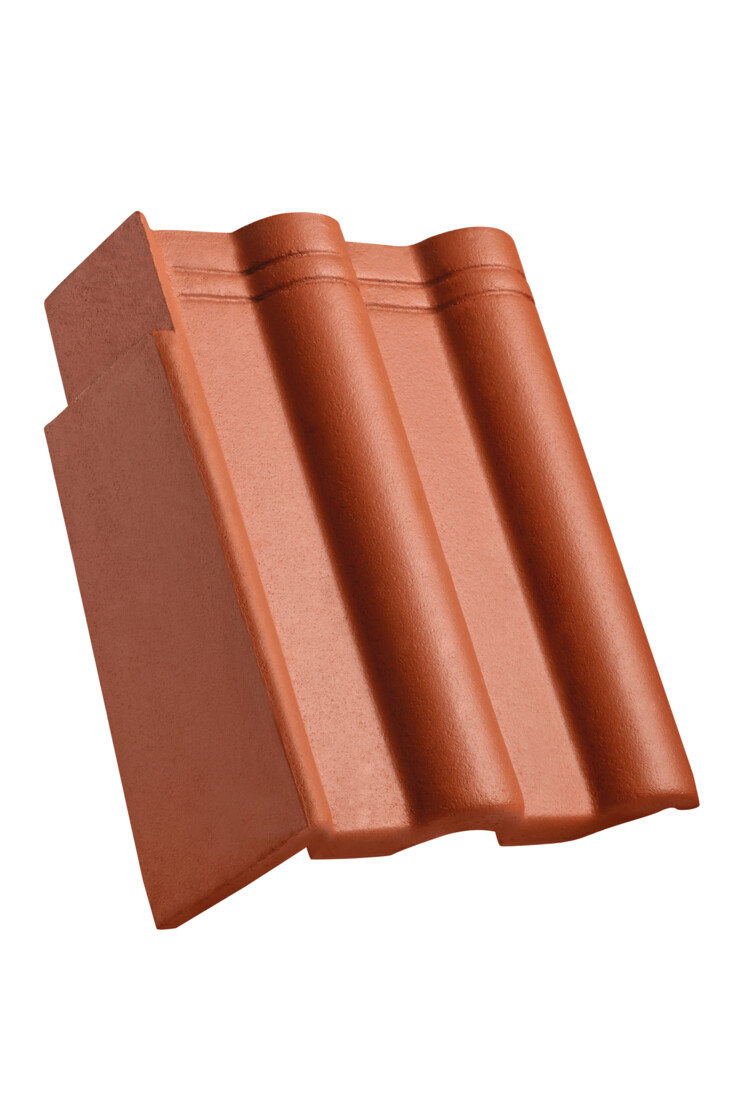

BREMA Verge tile notch 90 mm, batten spacing 335-345 mm Right

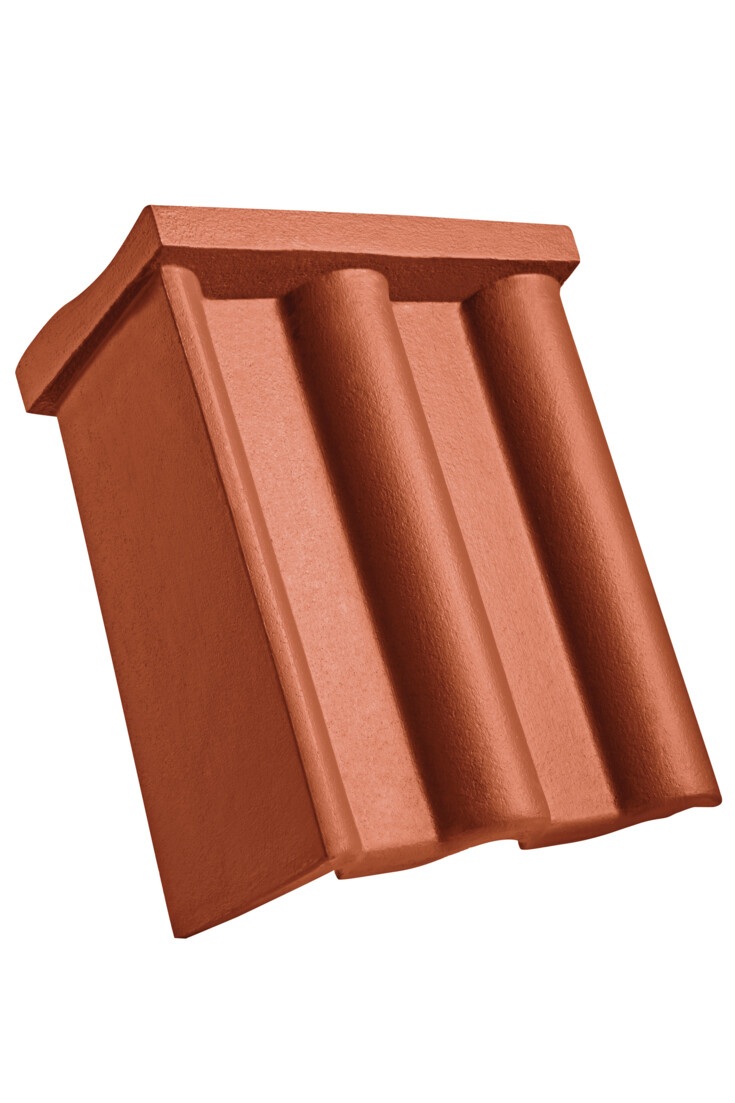

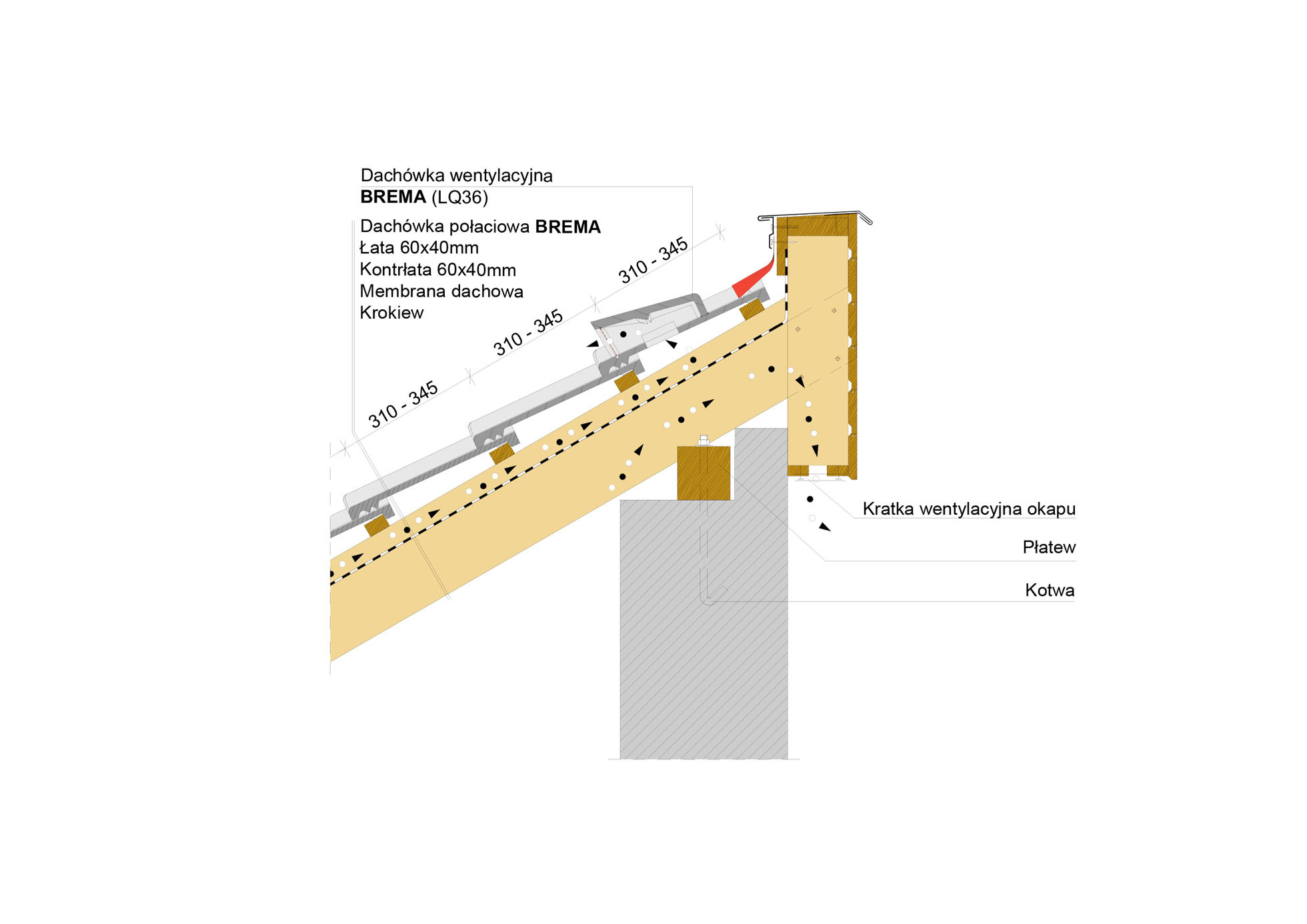

BREMA Shed verge tile Right

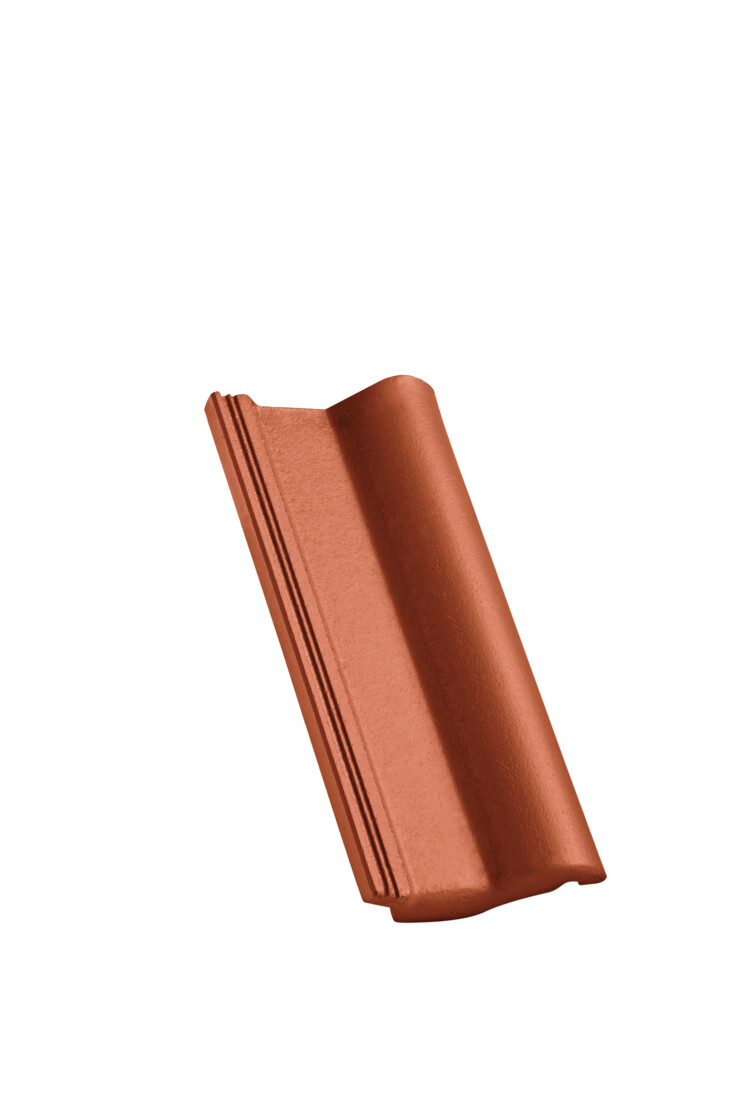

BREMA Half-width tile
BREMA Verge tile notch 90 mm, batten spacing 335-345 mm Left
Downloads
-
-
tech draw BREMA ventilating tile pack.zip
-
tech draw BREMA basic tile pack.zip
-
tech draw BREMA verge tile 90 right pack.zip
-
tech draw BREMA verge tile 90 left pack.zip
-
tech draw BREMA verge tile 120 right pack.zip
-
tech draw BREMA verge tile 120 left pack.zip
-

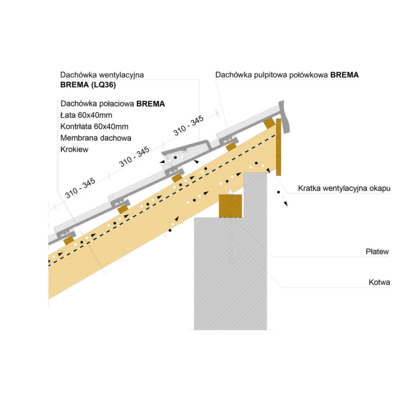

tech draw BREMA shed verge tile right pack.zip
-
tech draw BREMA shed verge tile left pack.zip
-
tech draw BREMA shed roof tile pack.zip
-
tech draw BREMA shed half tile decorated pack.zip
-
tech draw BREMA half width tile pack.zip
-
