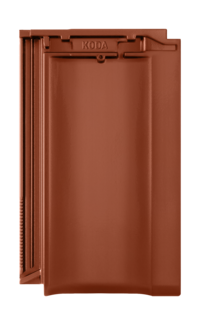

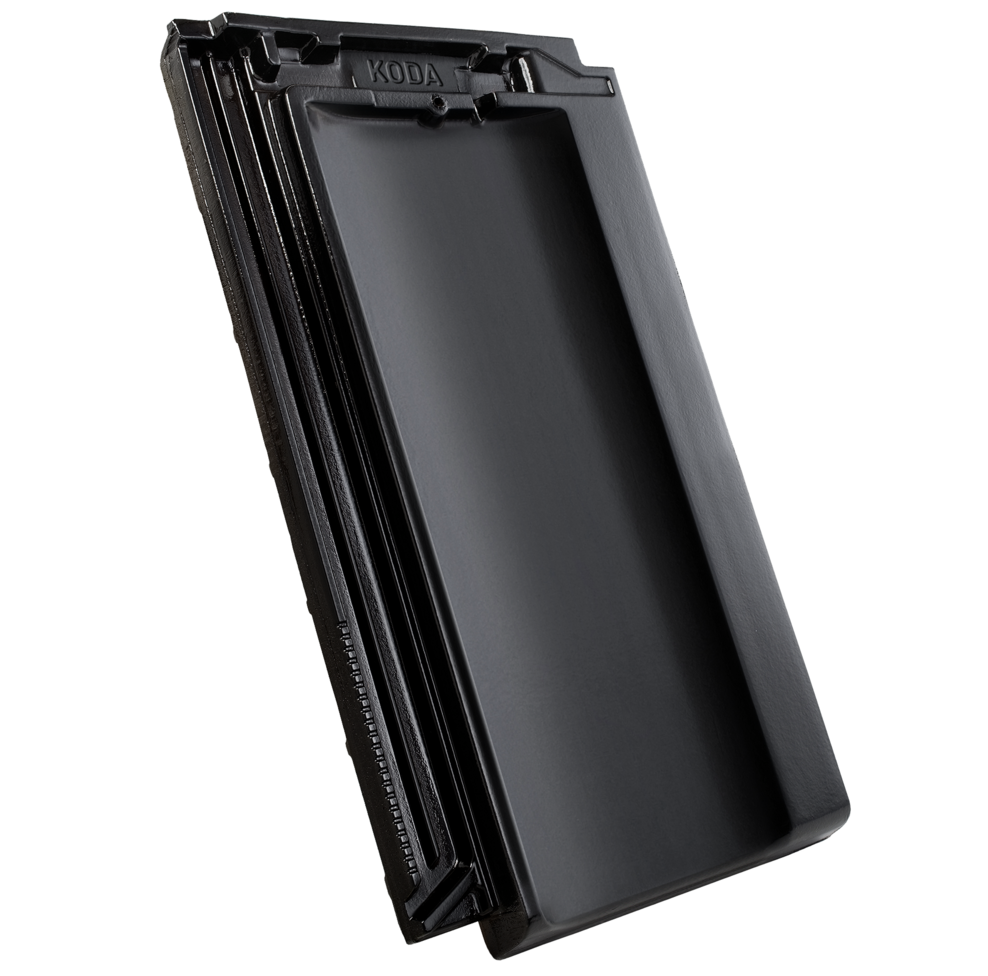

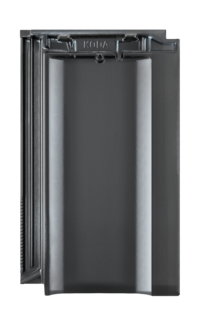

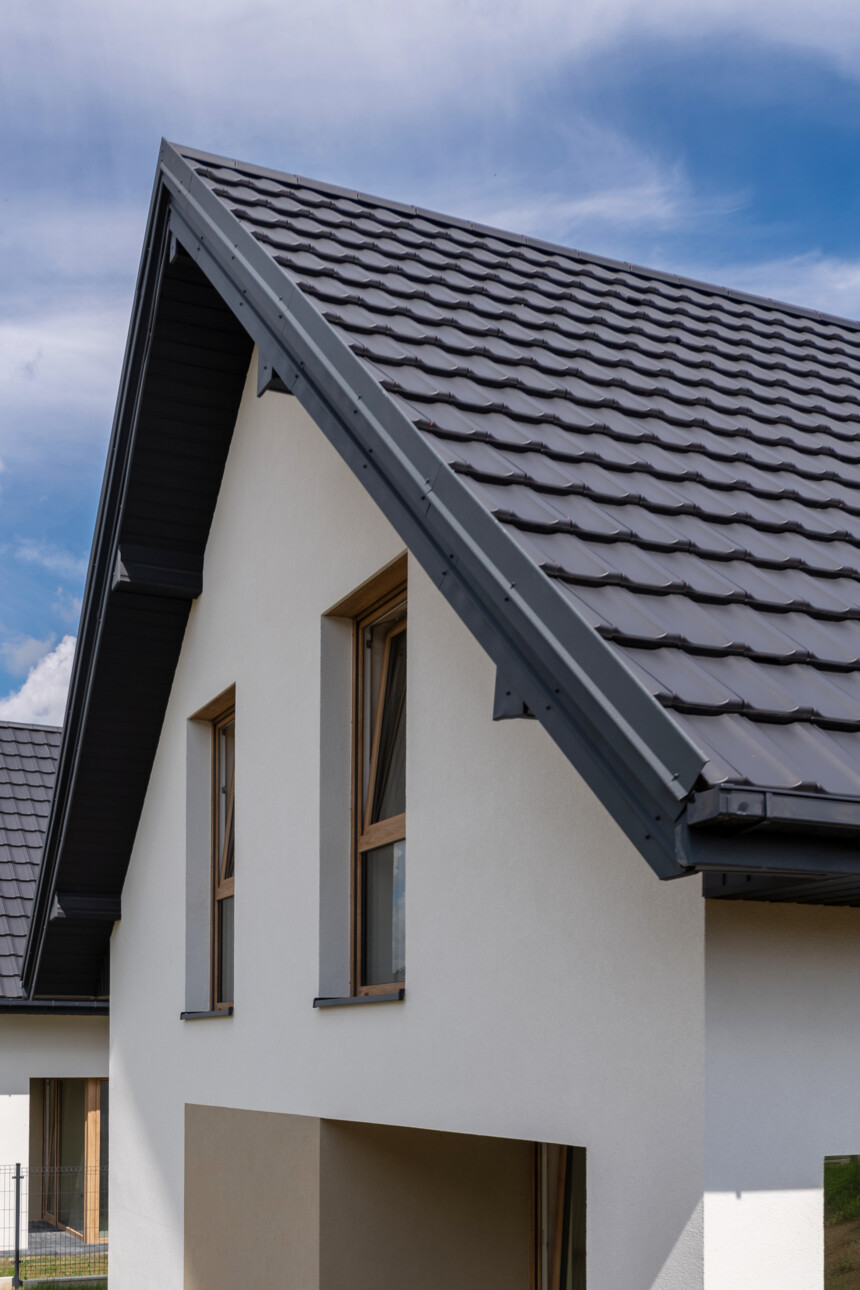

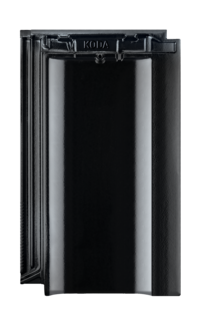

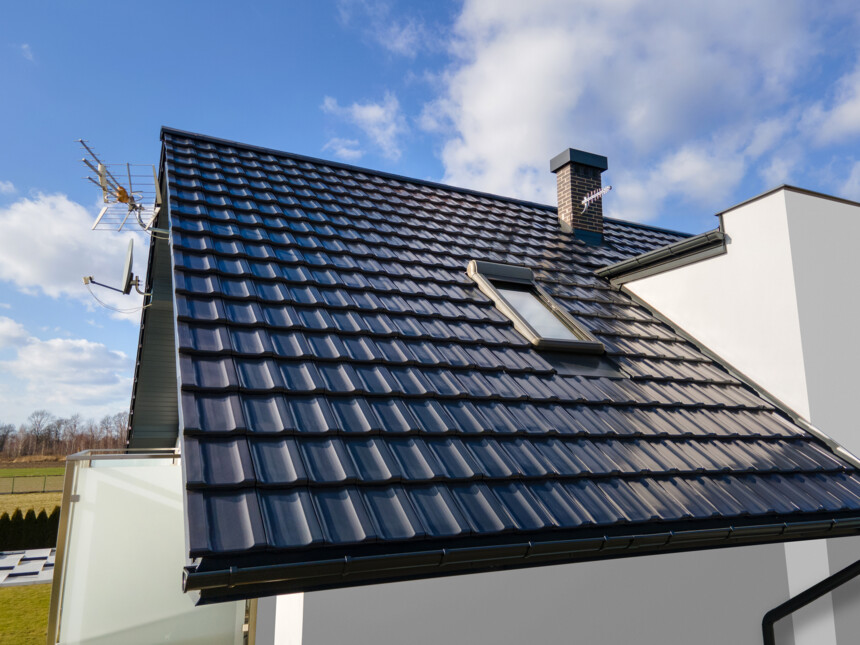

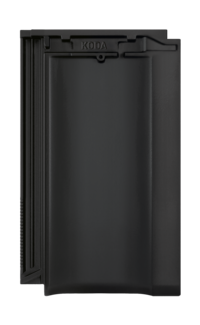

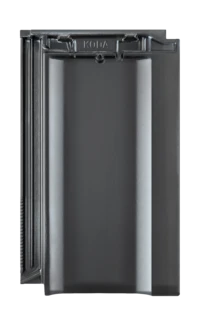

KODA®
KODA introduces a fresh look at modern roof coverings, standing out from standard flat roof tiles. Its balanced, slightly dynamic shape creates a subtle play of light and shade, giving the building a characteristic lightness and elegance. KODA is a choice for those looking for originality while maintaining a refined taste, combined with the durability of ceramics.
Dimensions: 304 x 503 mm
Consumption: from 8,9 pcs./m²
Weight: 4,6 kg/pcs.

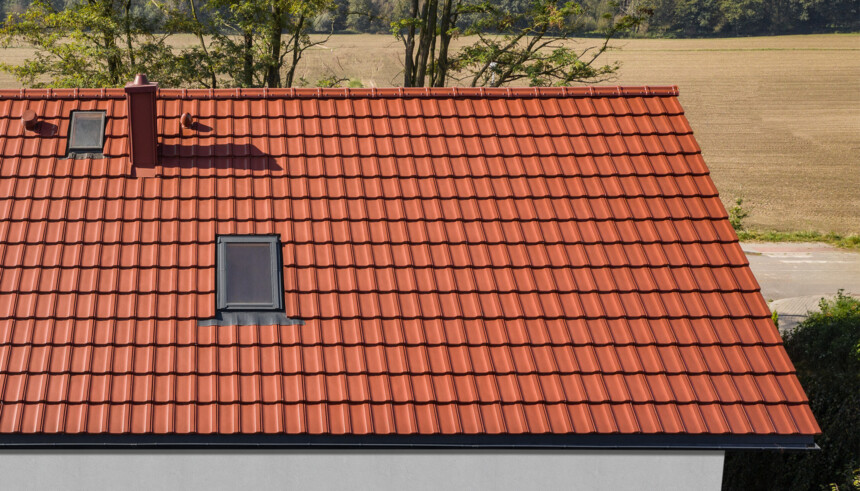

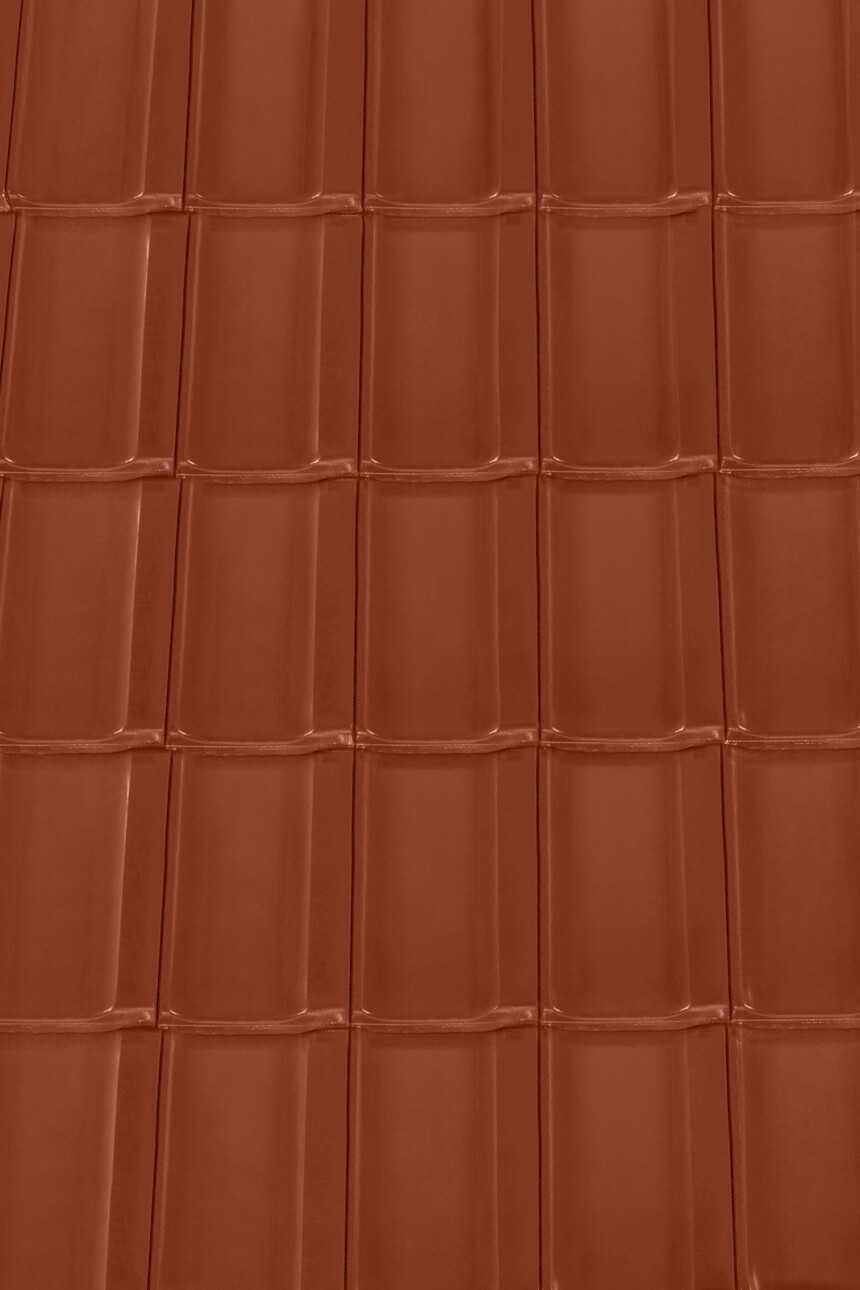

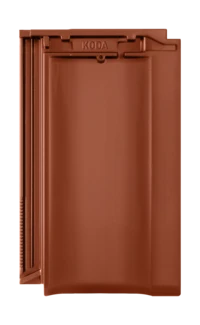

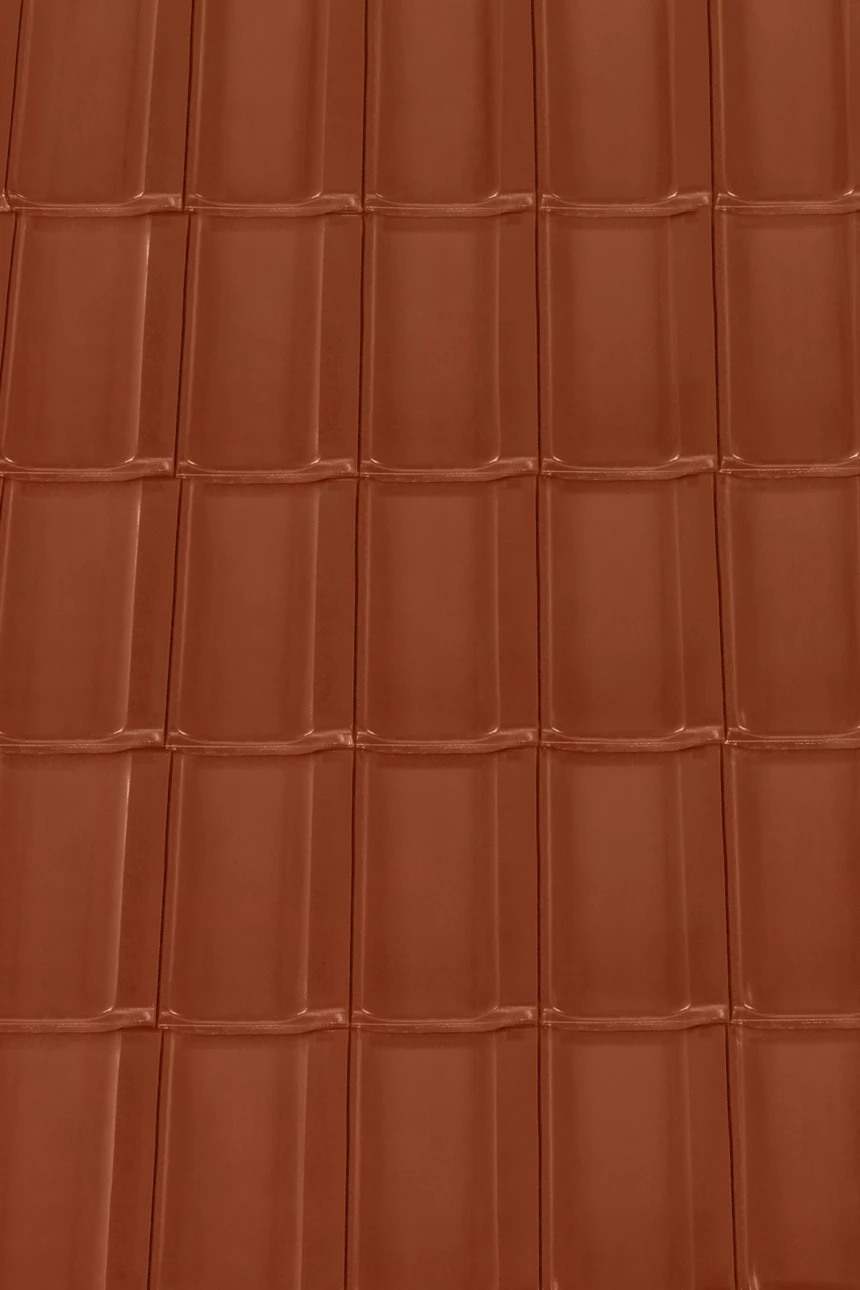

Copper red engobe
Check the most important advantages
A modern alternative to flat roof tiles
The original semi-flat shape fits perfectly into contemporary architectural trends.
Lower material costs and shorter installation
The demand from 9 pcs./m² reduces purchase and installation costs, optimizing the investment.
Effective water drainage from the roof
The profiled structure ensures maximum tightness and protection against moisture.
Increased roof resistance to weather conditions
The advanced system of tight locks increases resistance to external factors.
Perfect adhesion of roof tiles
High dimensional stability minimizes errors, increases tightness and shortens installation time.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
One of the longest warranties on the market
Warranty protection for ceramic roof tiles provides peace of mind for decades.
Technical data for KODA®
-
-
304 × 503 mm
-
-
-
258 mm
-
-
-
260 mm
-
-
-
261 mm
-
-
-
390 mm
-
-
-

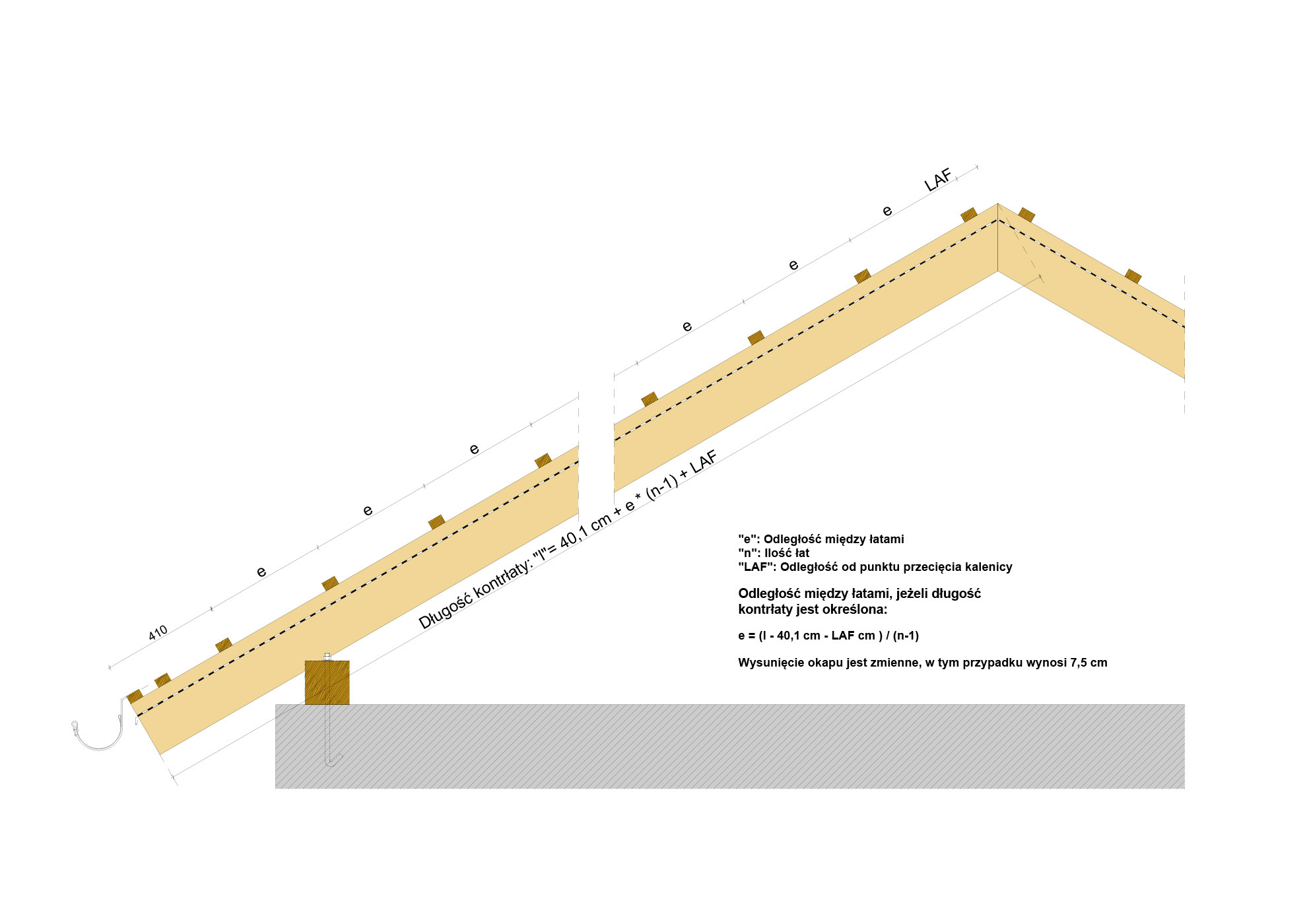

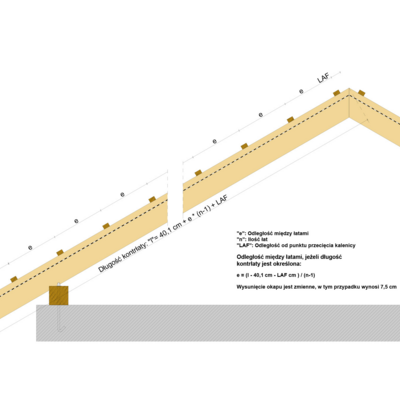

Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
LAF
75
70
65
65
65
70
70
70
80
PS
FLA
120
115
115
110
100
90
75
70
55
PT
FLA
130
125
110
100
95
80
70
60
50
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
LAF
75
70
65
65
65
70
70
70
80
PS
FLA
110
105
105
100
90
80
65
60
45
PT
FLA
120
115
100
90
85
70
60
50
40
-
Choose the best accessories

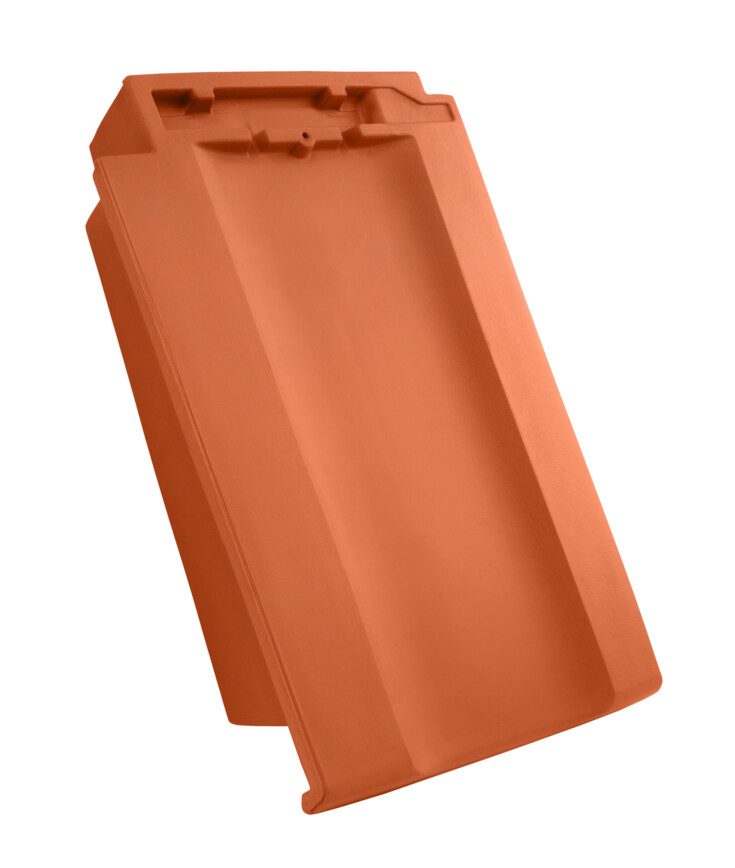

KODA Verge tile Right

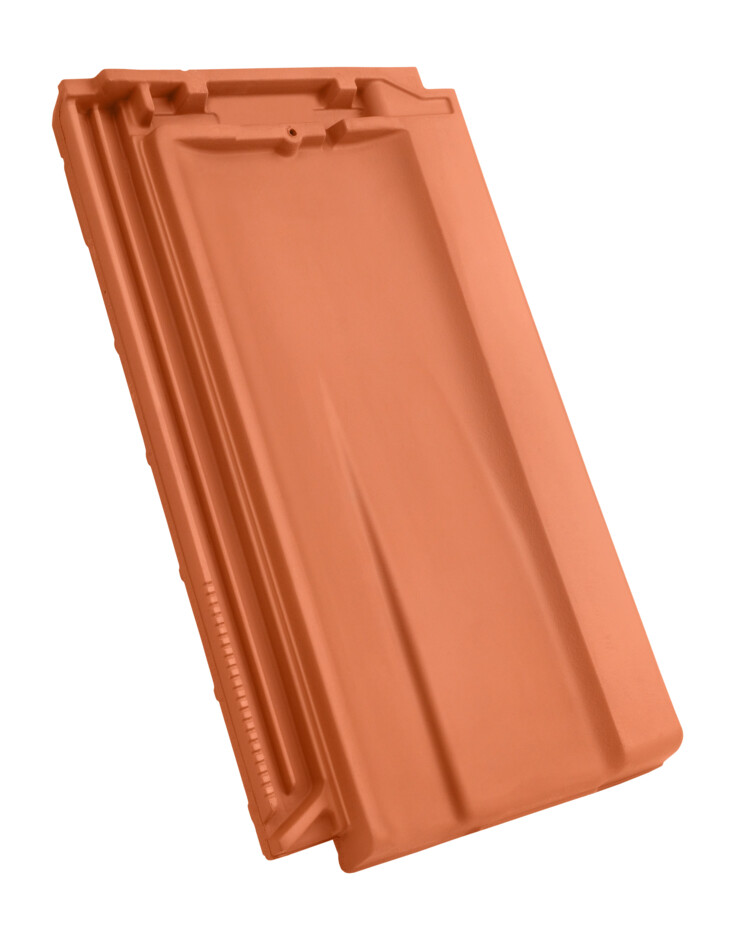

KODA Ventilating tile

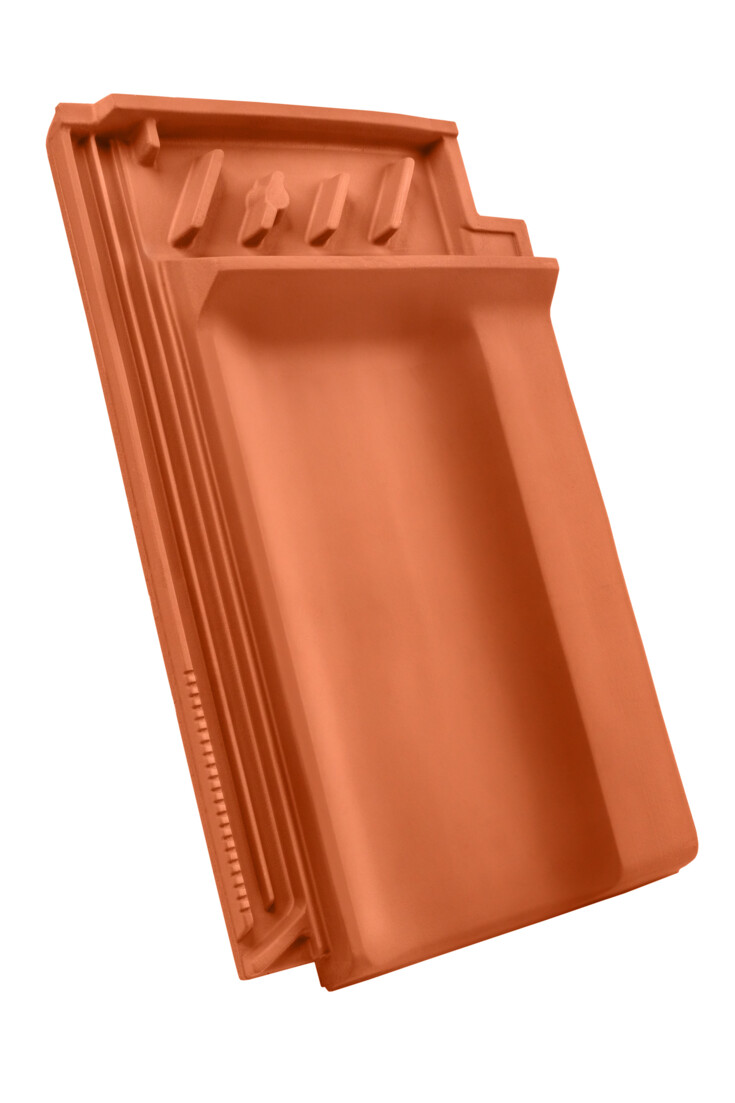

KODA Ridge connection ventilating verge tile Left
KODA Ridge connection ventilating verge tile Right
Downloads
-
-
tech draw KODA verge tile right pack.zip
-
tech draw KODA verge tile left pack.zip
-
tech draw KODA ridge connection ventilating verge tile right pack.zip
-
tech draw KODA ridge connection ventilating verge tile.zip
-
tech draw KODA ventilating tile pack.zip
-
tech draw KODA ridge connection ventilating tile pack.zip
-
tech draw KODA double roll tile pack.zip
-
tech draw KODA basic tile pack.zip
-
