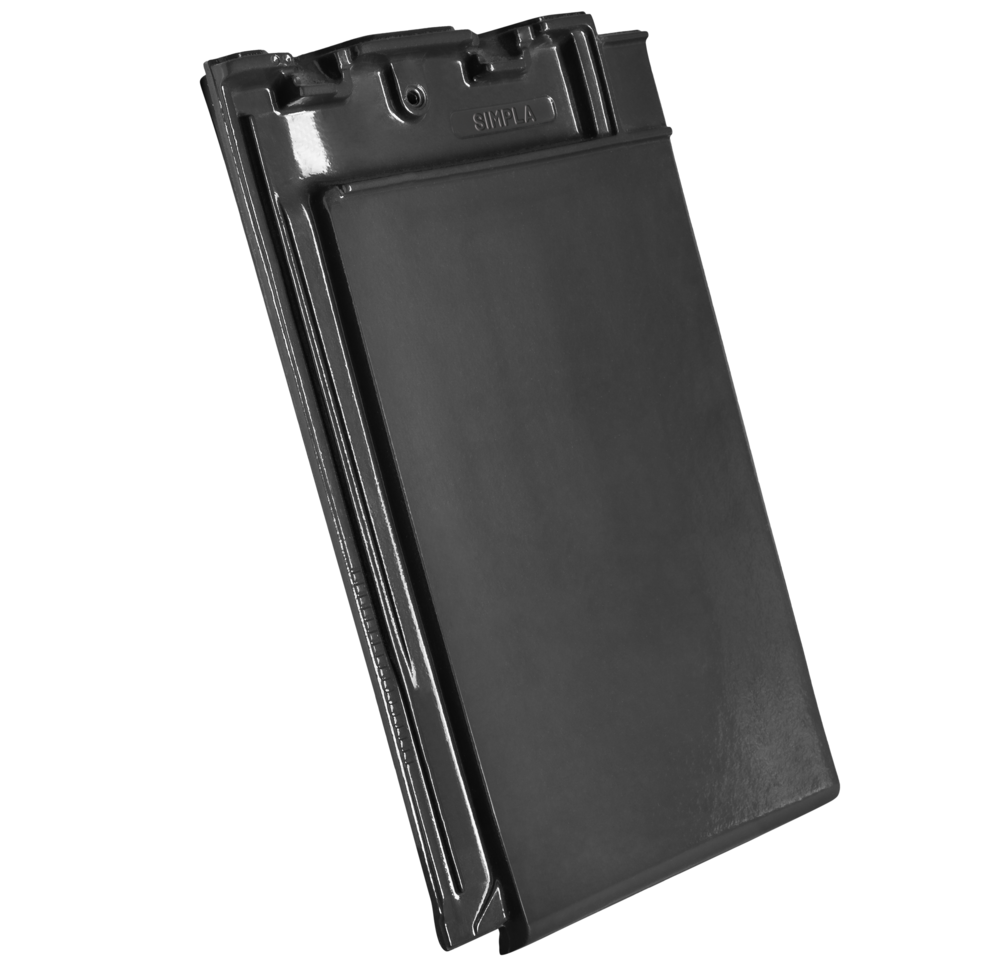

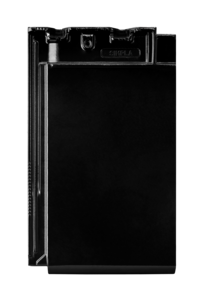

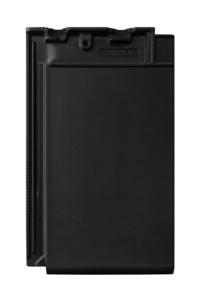

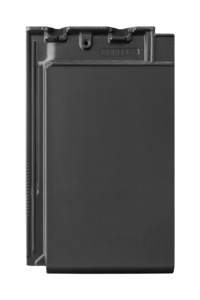

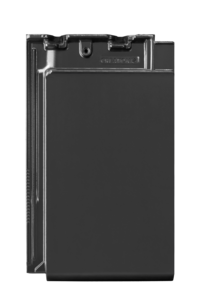

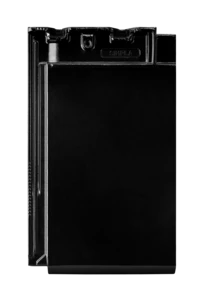

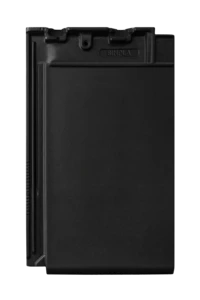

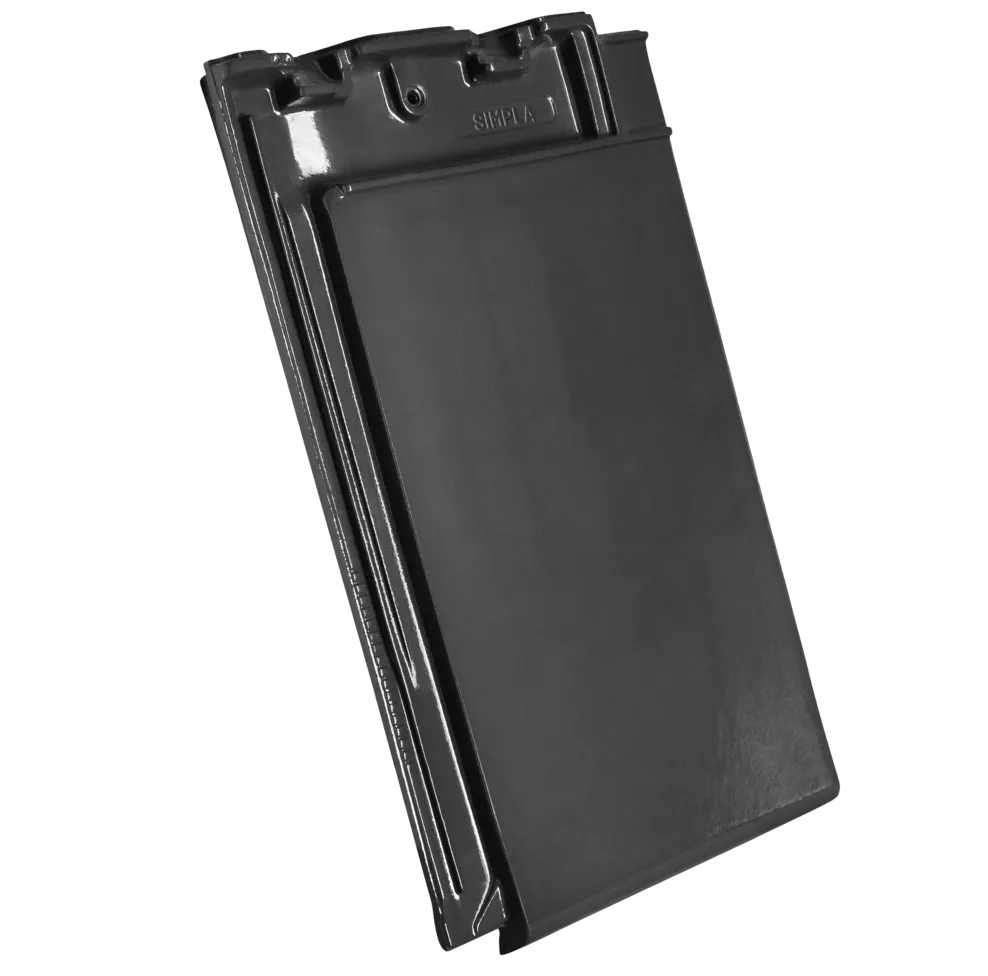

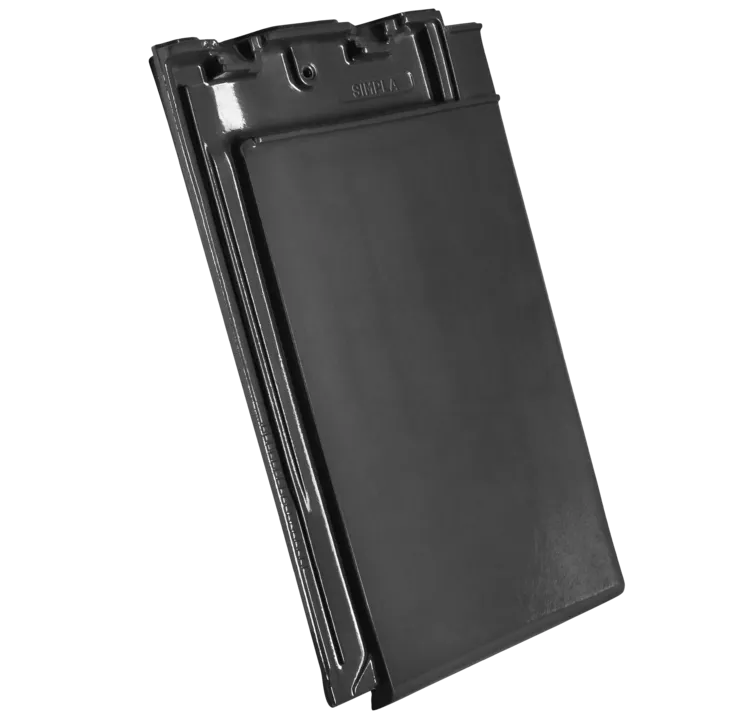

SIMPLA®
SIMPLA is the essence of modernity in roof architecture. Its flat form creates an elegant, uniform surface - the perfect complement to modern buildings. Precise lines emphasize the purity of form, creating a refined visual accent. SIMPLA is a conscious choice for those looking for a combination of minimalism with modern style and durability of high-quality ceramic roof tiles.
Dimensions: 298 x 500 mm
Consumption: from 10,4 pcs./m²
Weight: 4,7 kg/pcs.

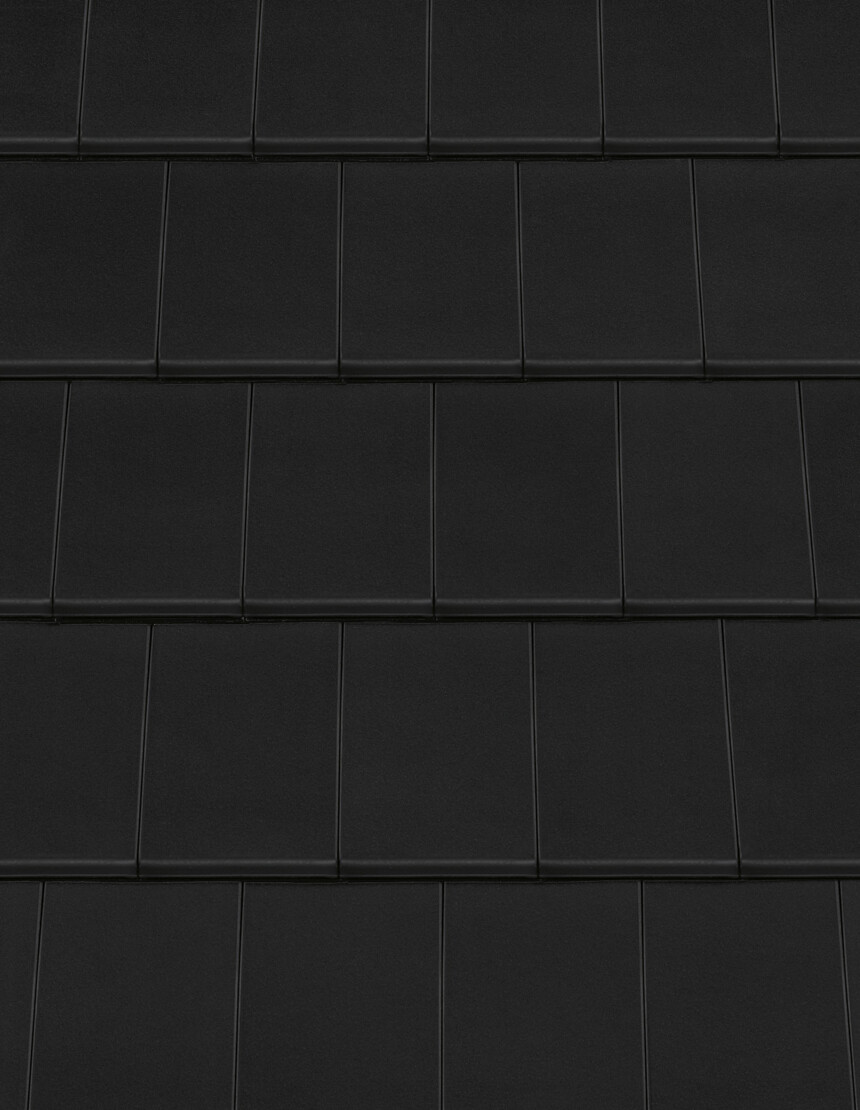

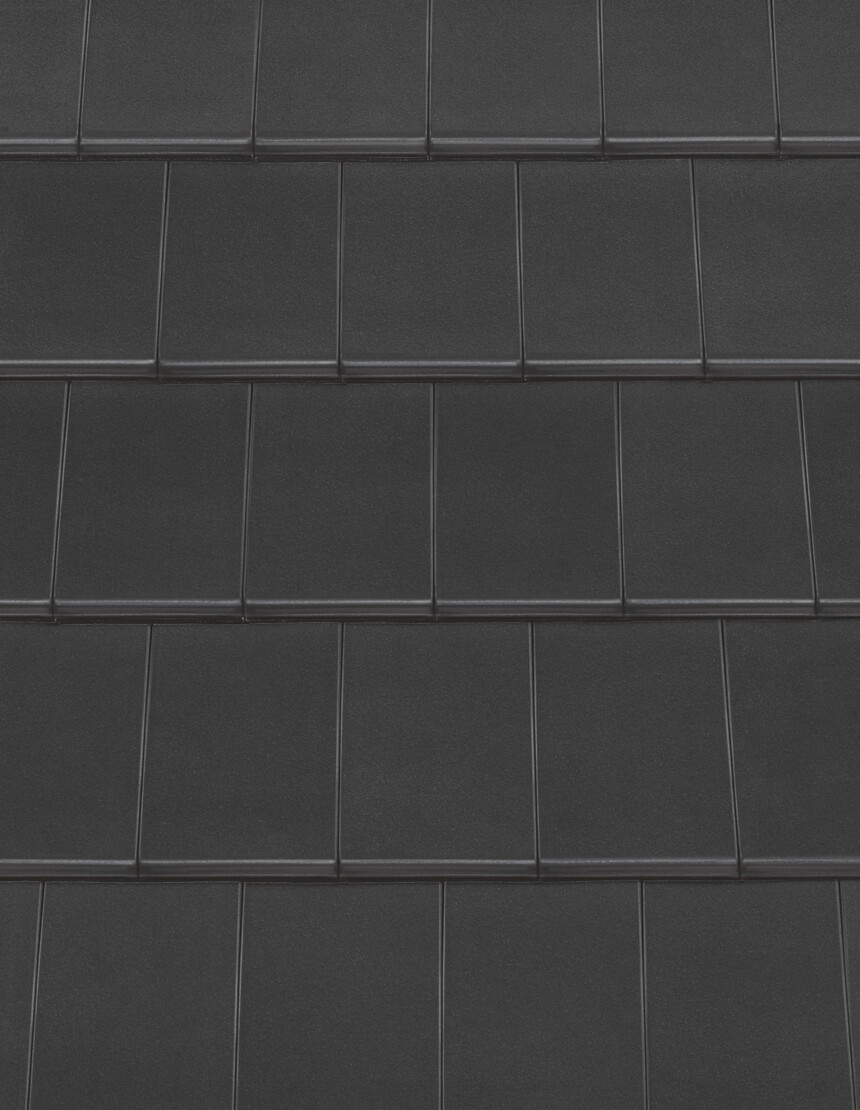

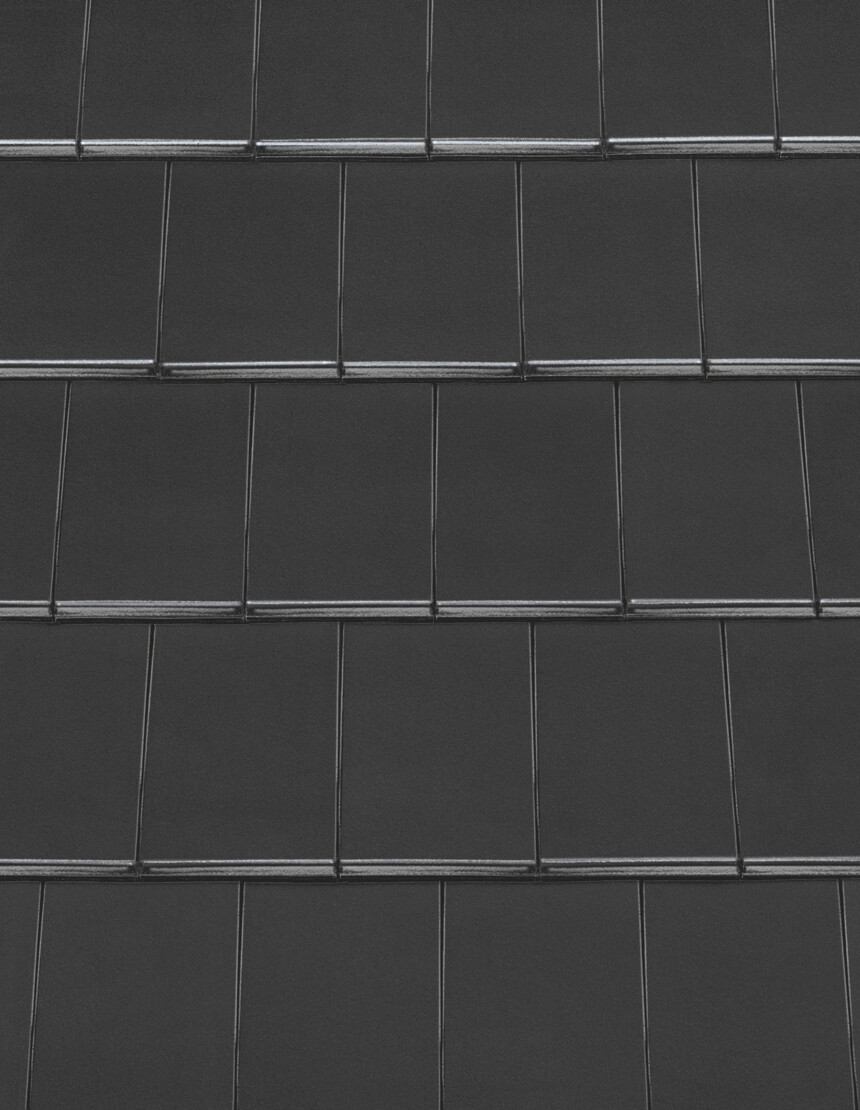

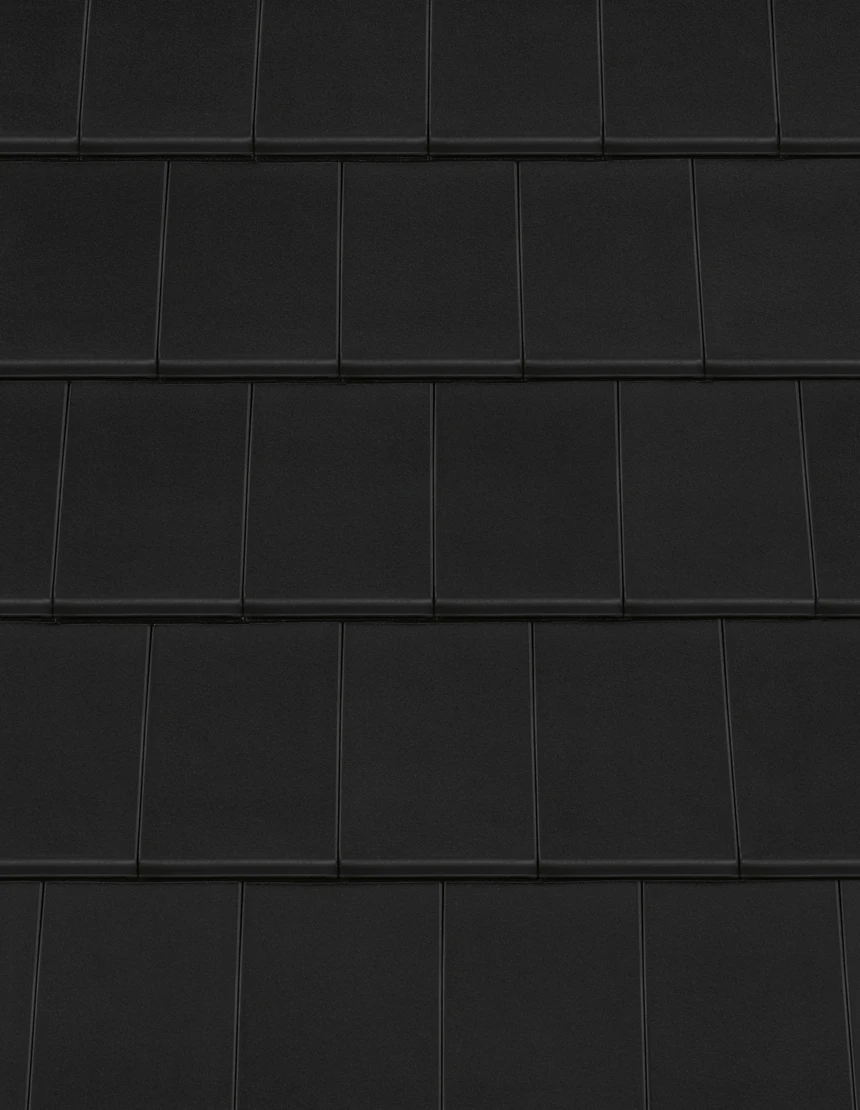

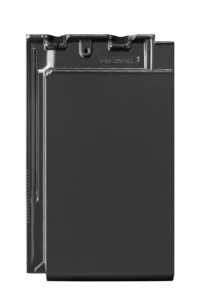

Slate grey engobe
Check the most important advantages
Perfect for modern architecture
The elegant appearance in fashionable colours emphasises the modern character of the architecture.
Increased roof resistance to weather conditions
The advanced system of tight locks increases resistance to external factors.
Economical and aesthetic roof arrangement
They enable economical edge finishing with flexible offset installation.
Exceptional durability and effective protection
Guarantees exceptional durability and effective protection against weather conditions.
Effective elimination of moisture from under the roof surface
Eliminates moisture and condensation, creating a healthy microclimate and extending the service life.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
One of the longest warranties on the market
Warranty protection for ceramic roof tiles provides peace of mind for decades.

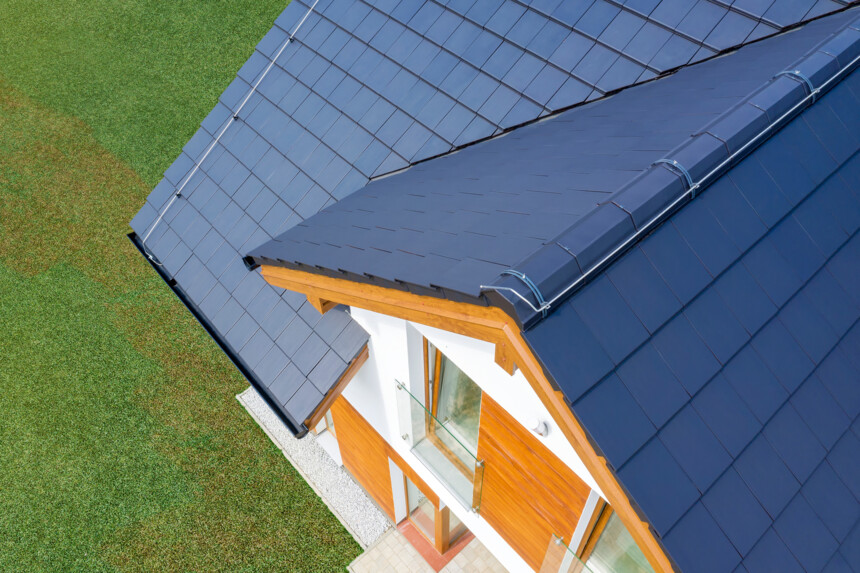

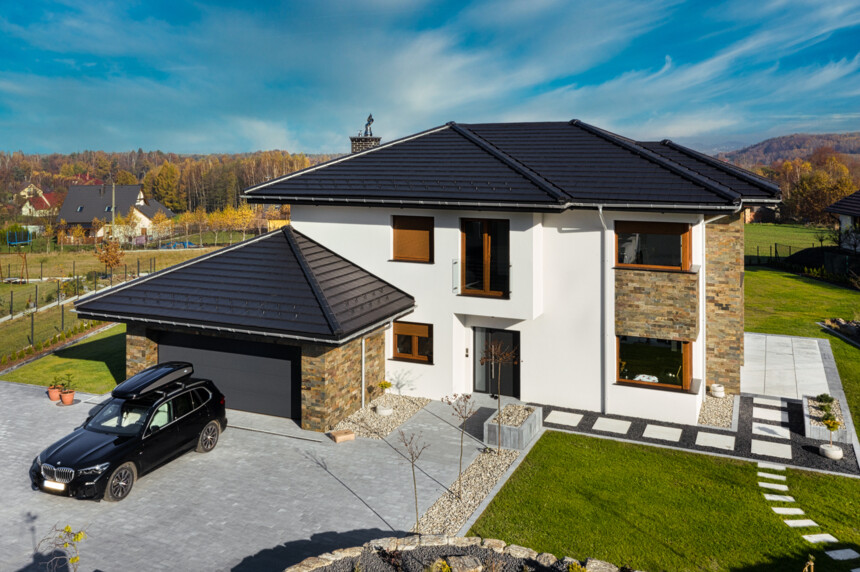

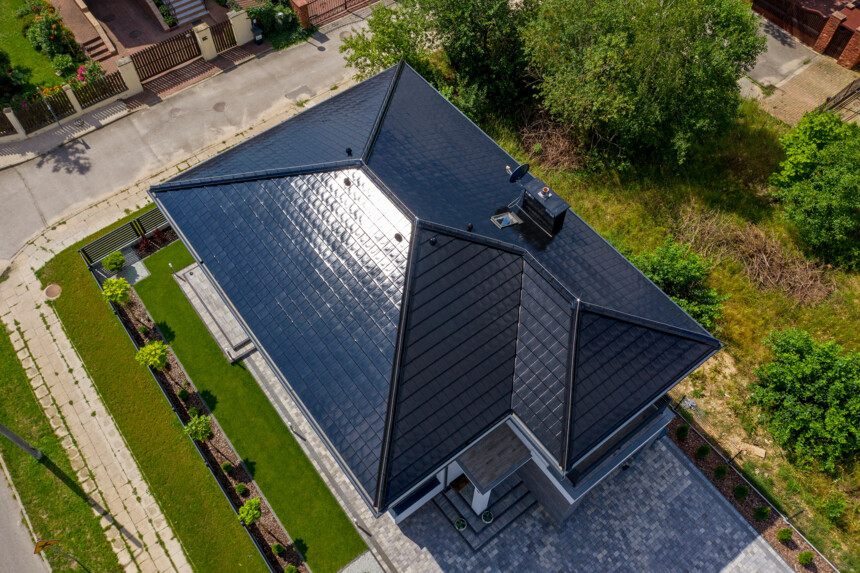

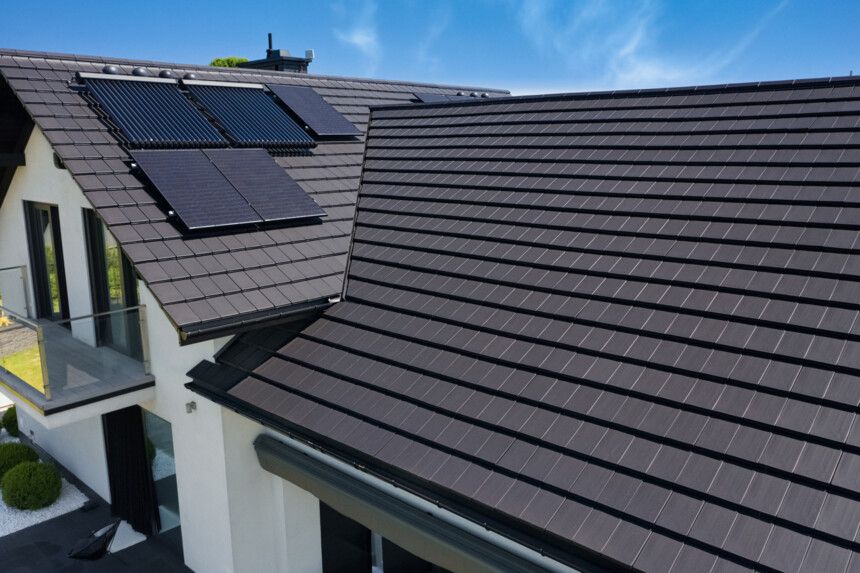

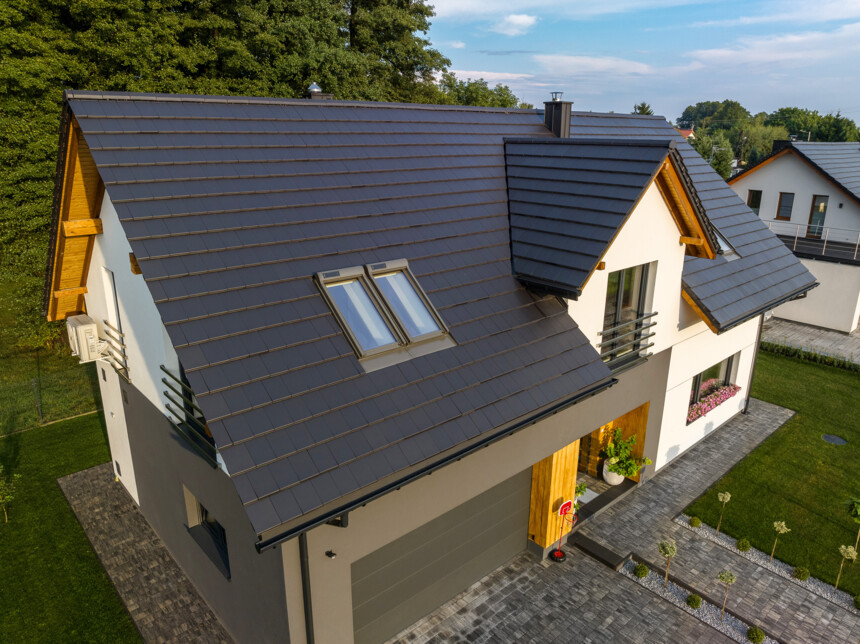

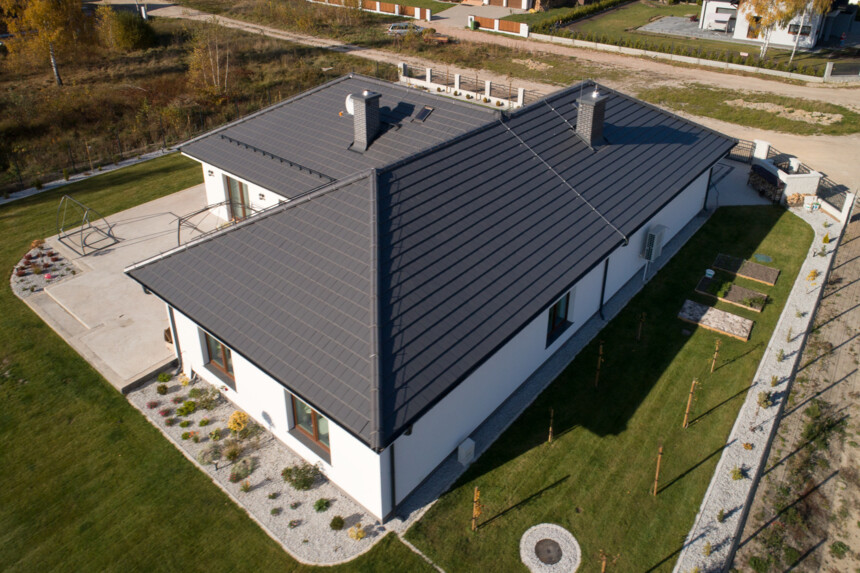

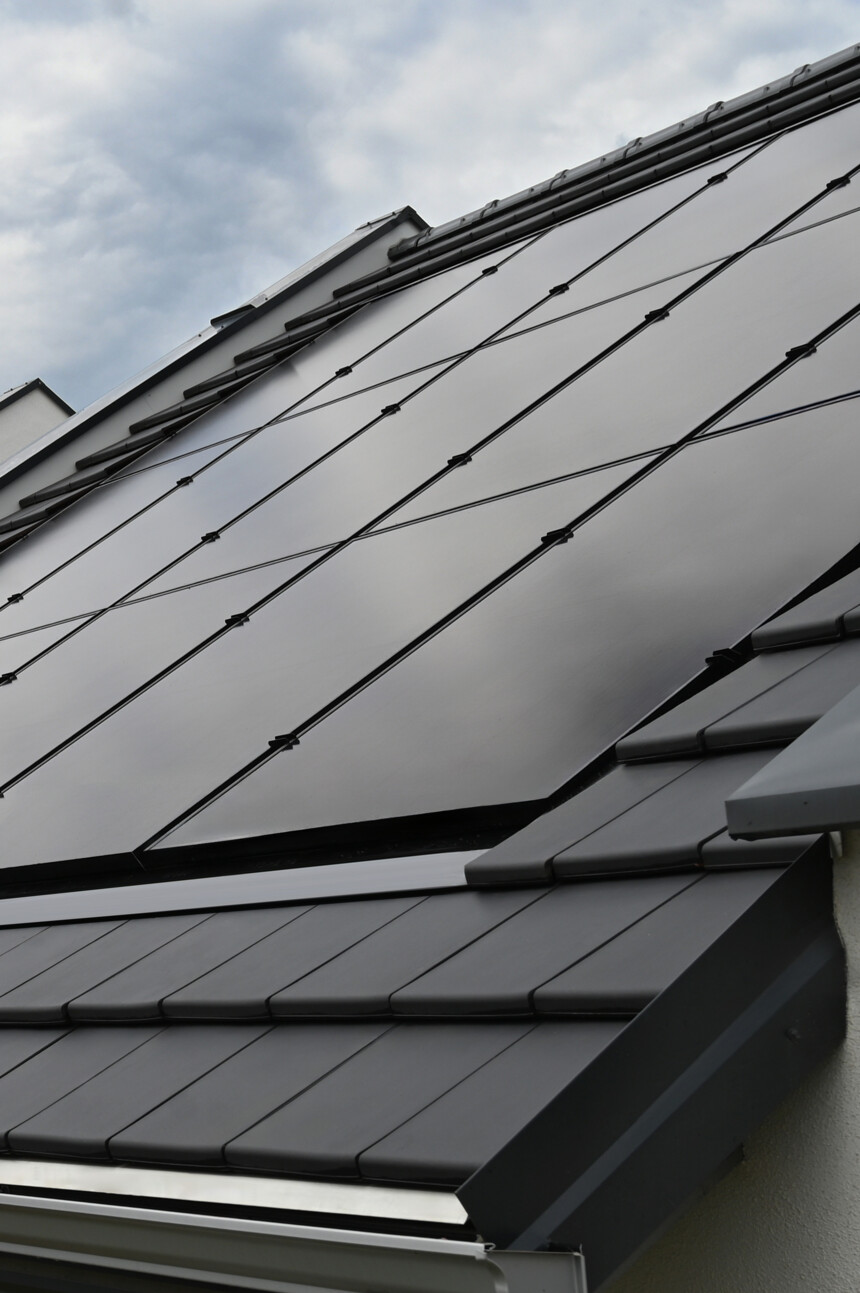

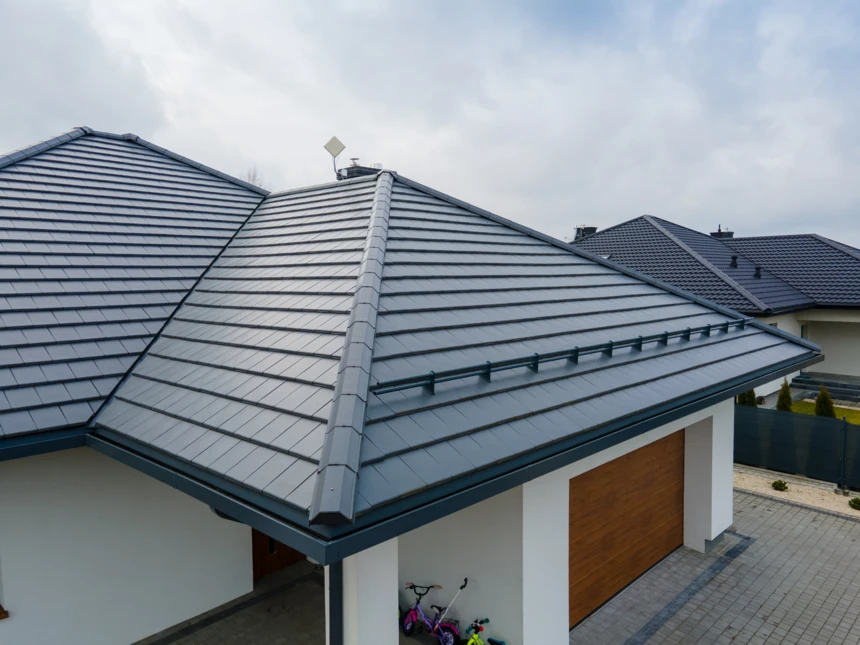

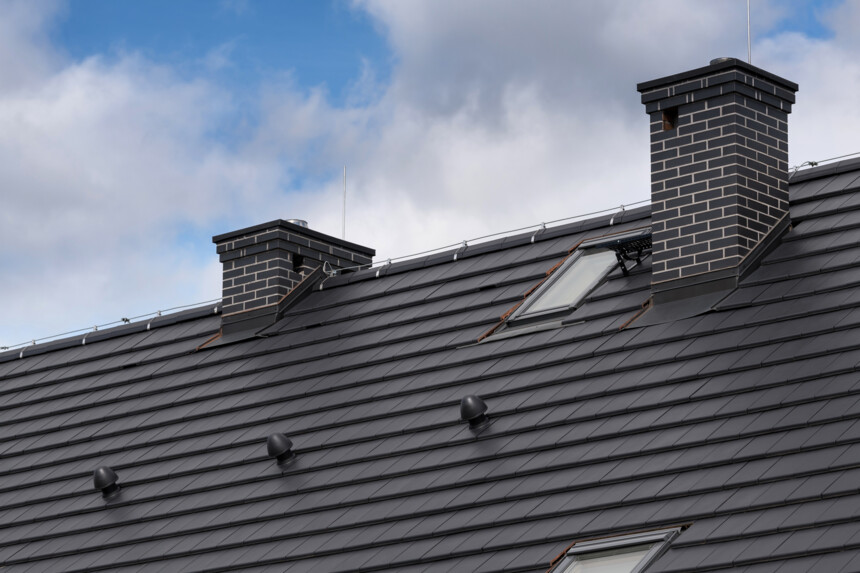

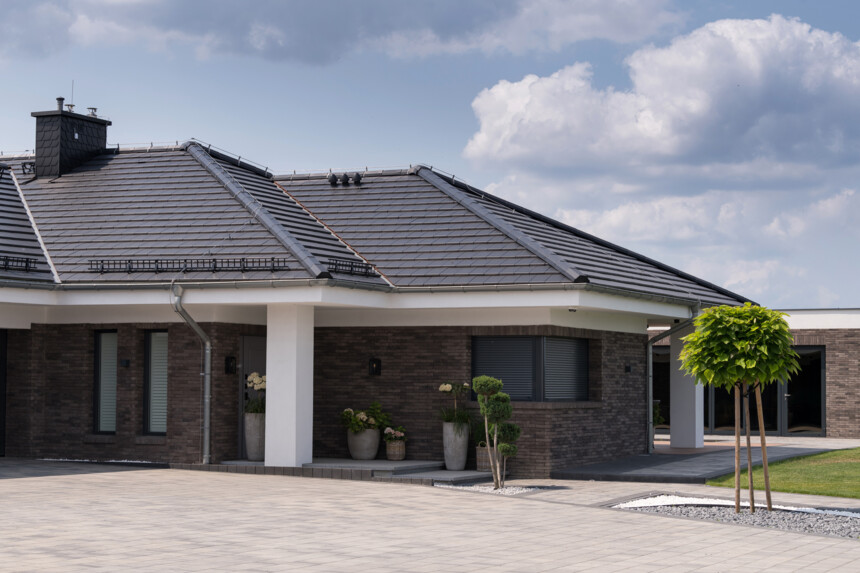

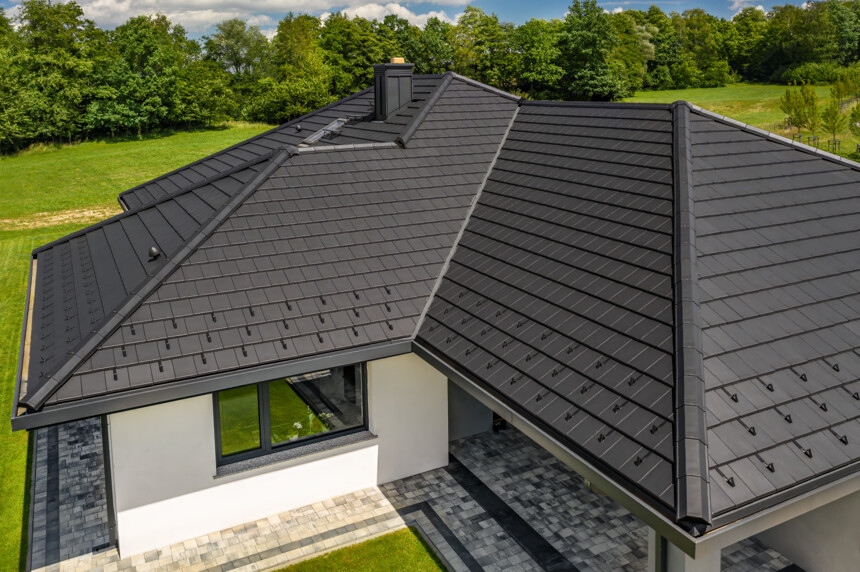

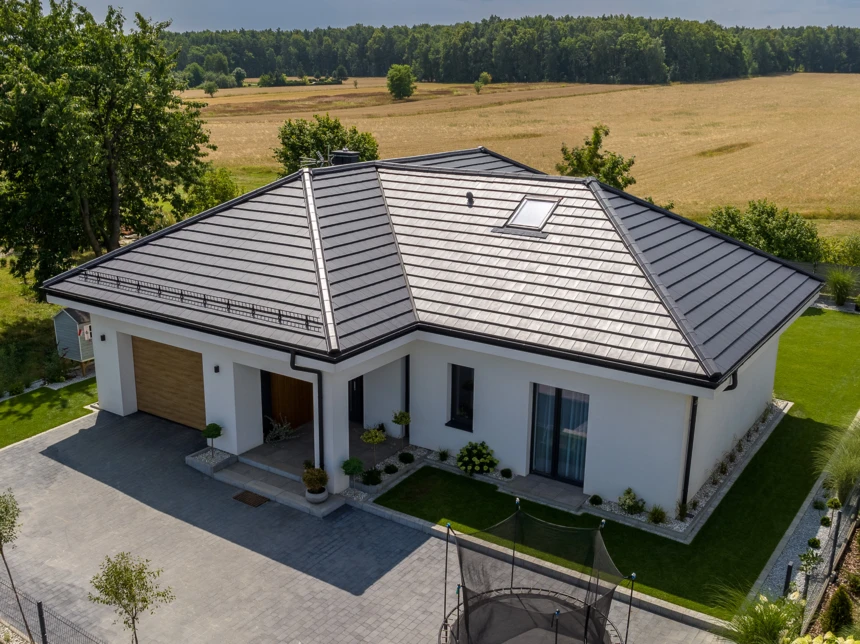

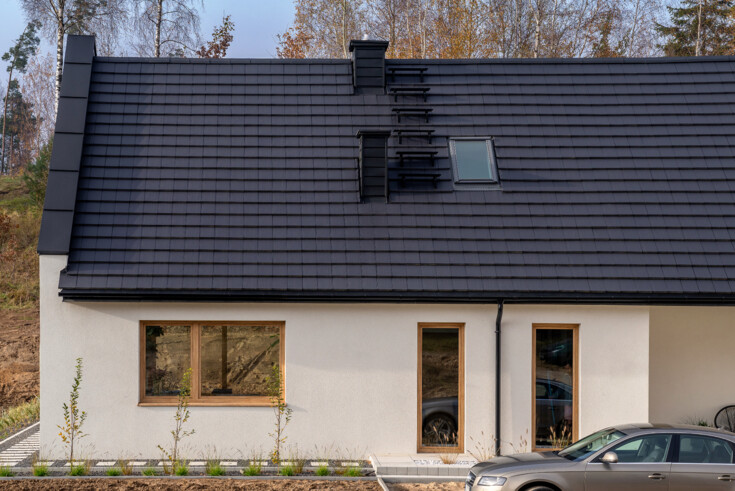

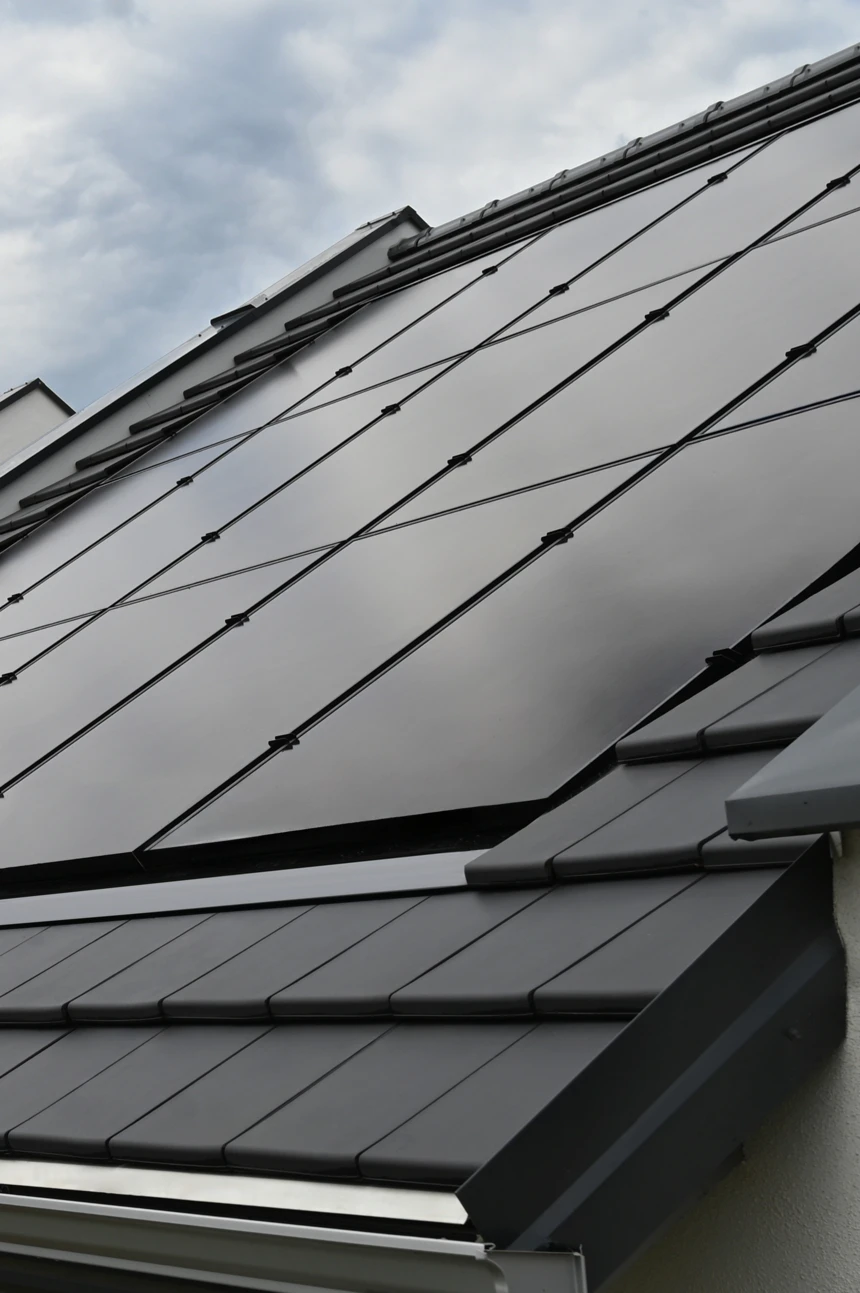

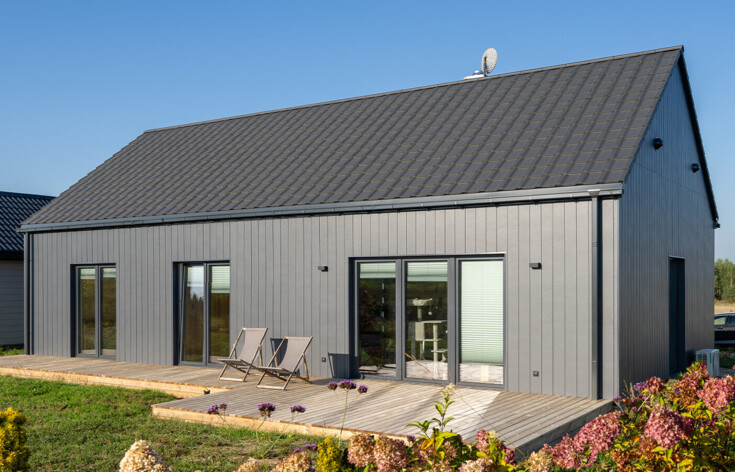

References
Technical data for SIMPLA®
-
-
298 × 500 mm
-
-
-
min. 261 mm
-
av. 263 mm
-
max. 264 mm
-
-
-

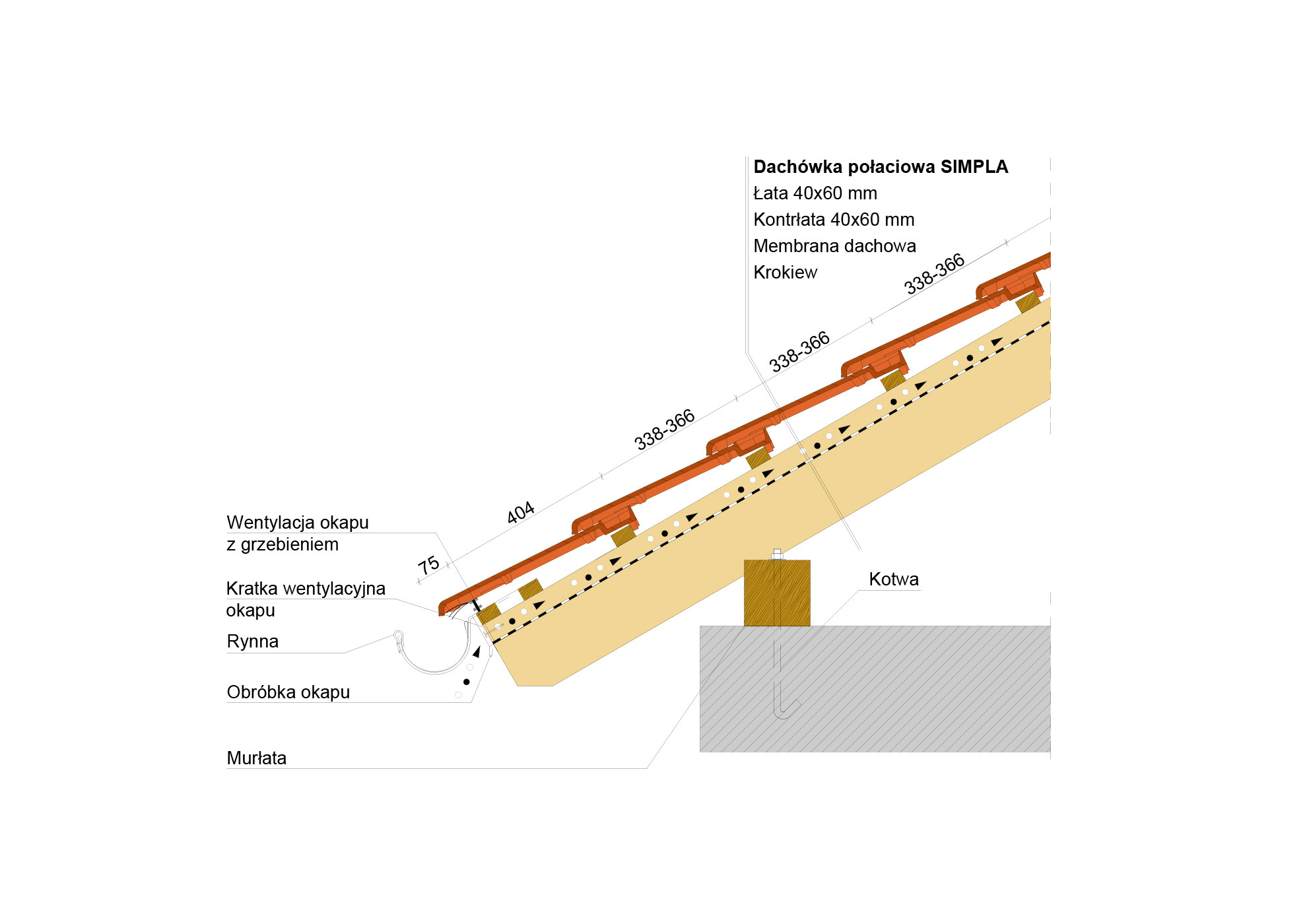

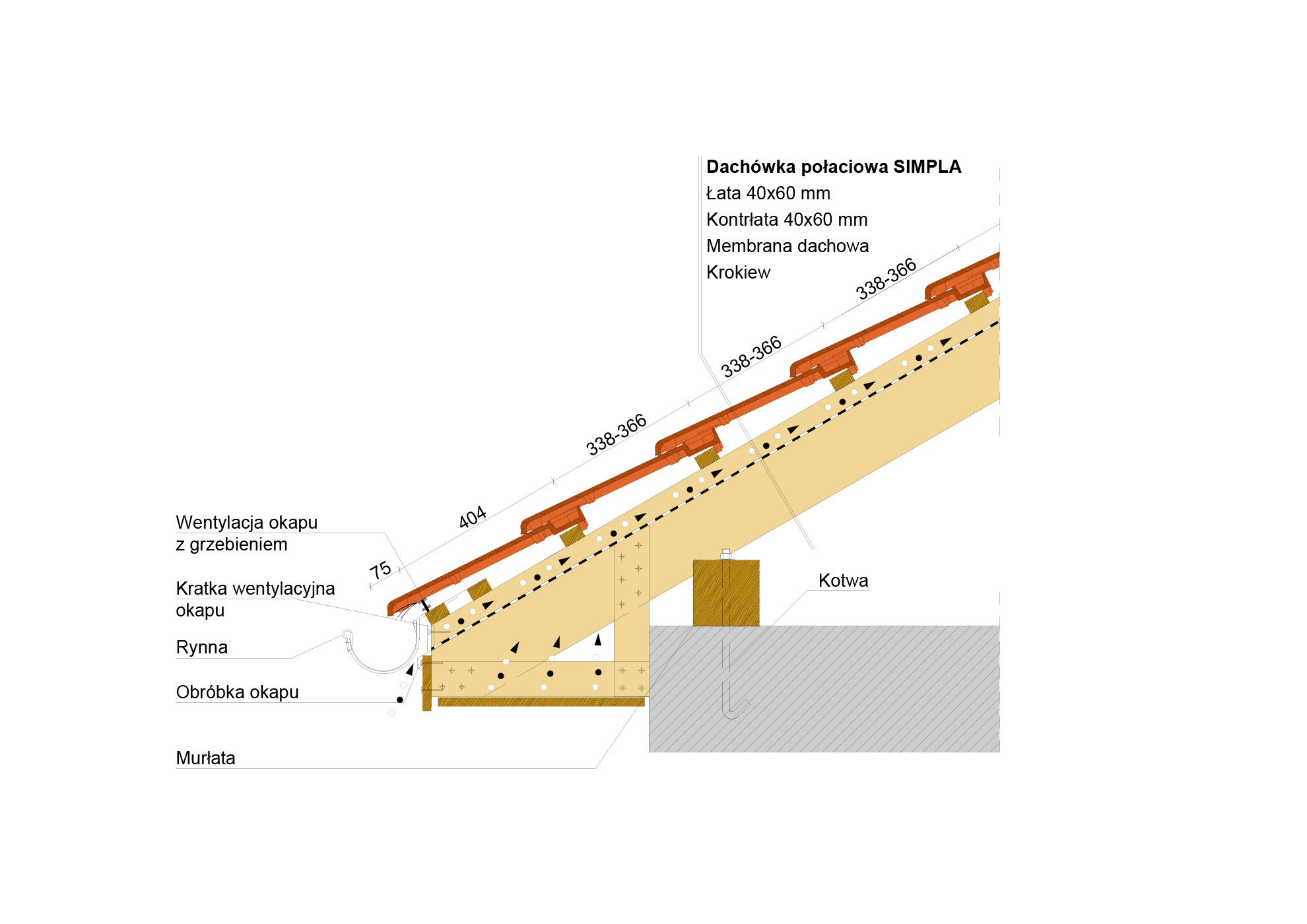

min. 338 mm
-
av. 352 mm
-
max. 366 mm
-
-
-
min. 10,4 Pcs/m²
-
av. 10,8 Pcs/m²
-
max. 11,3 Pcs/m²
-
-
-
4,7 Kg/pc
-
50,8 Kg/m²
-
-
-

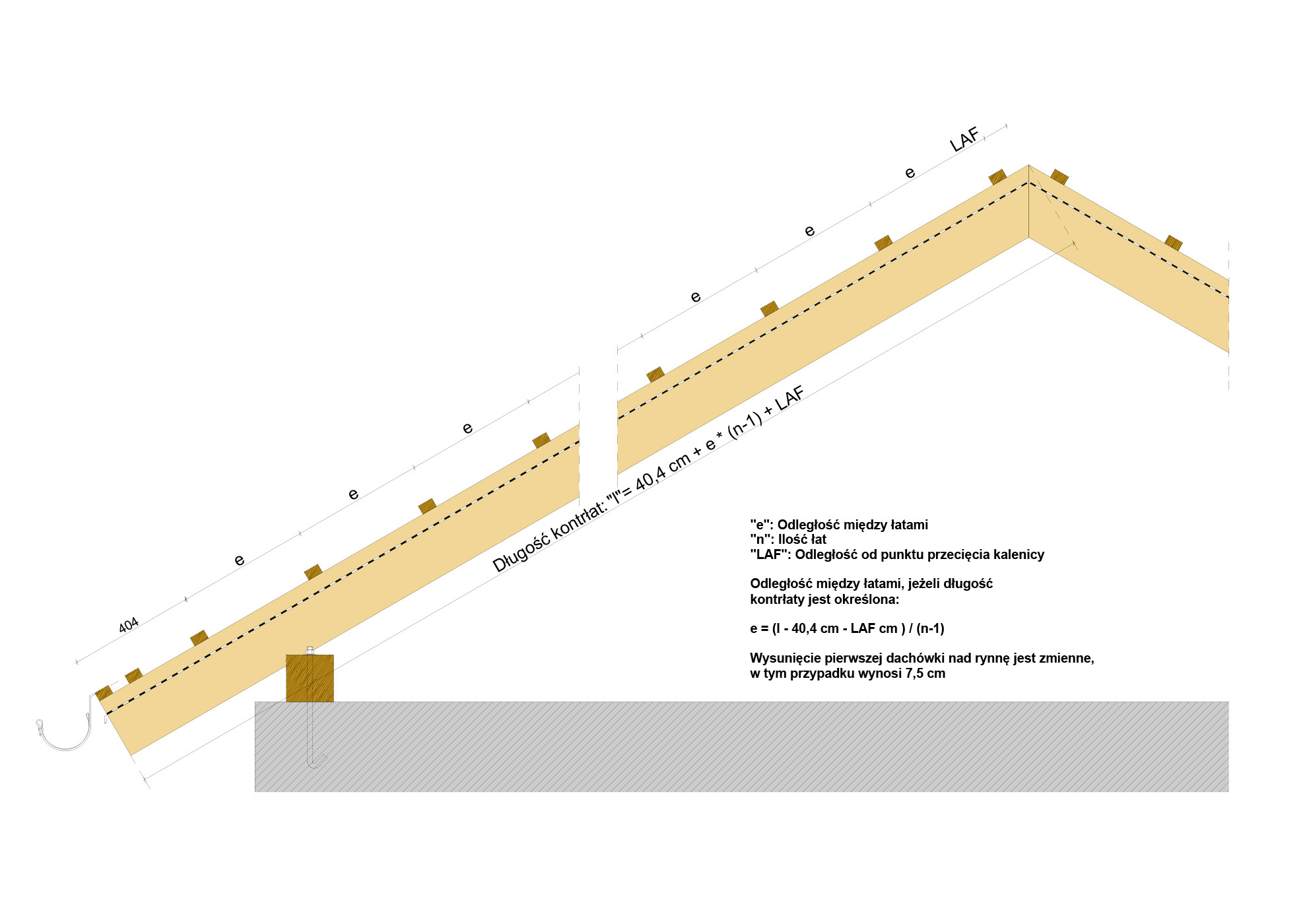

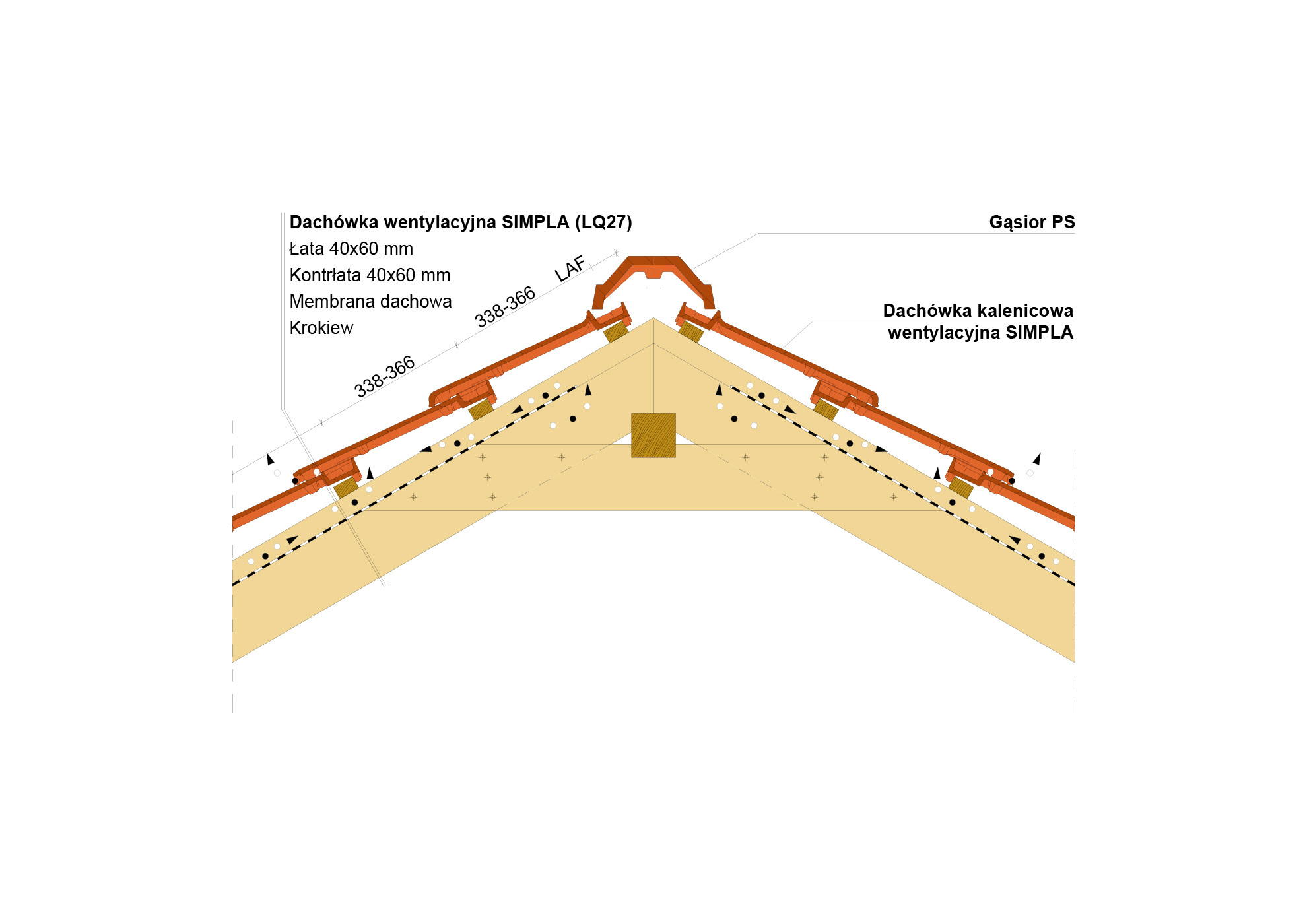

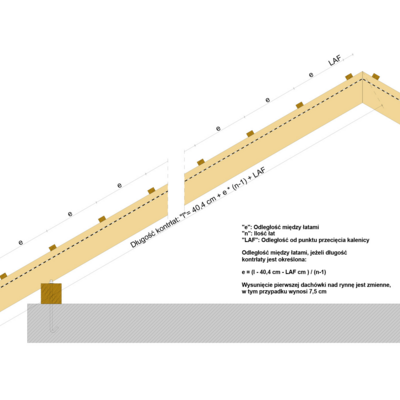

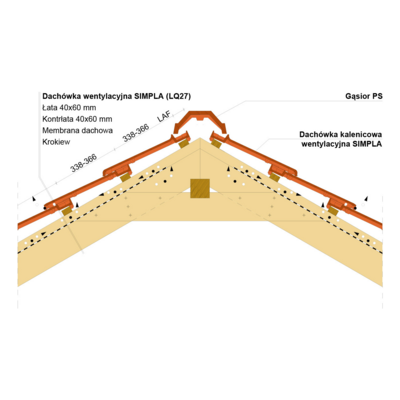

Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
55°
PS
LAF
75
70
65
65
60
60
60
75
85
2.5 pcs/m
FLA
130
120
100
90
70
70
65
30
25
-
Choose the best accessories

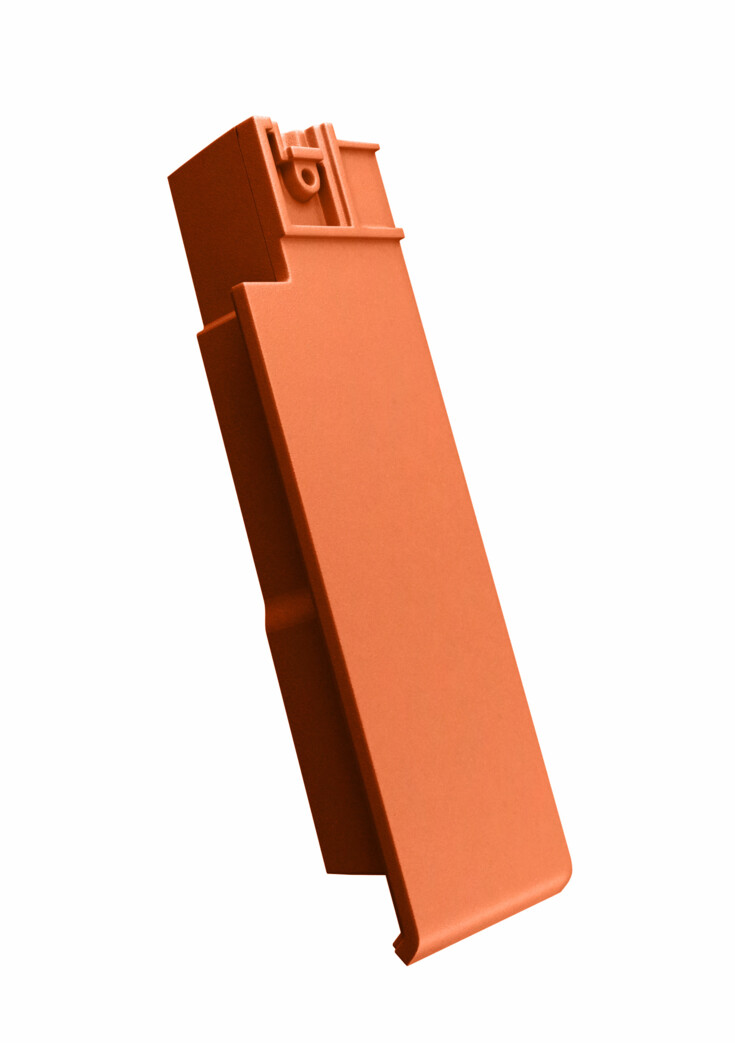

SIMPLA Half verge tile Left
SIMPLA Half verge tile Right

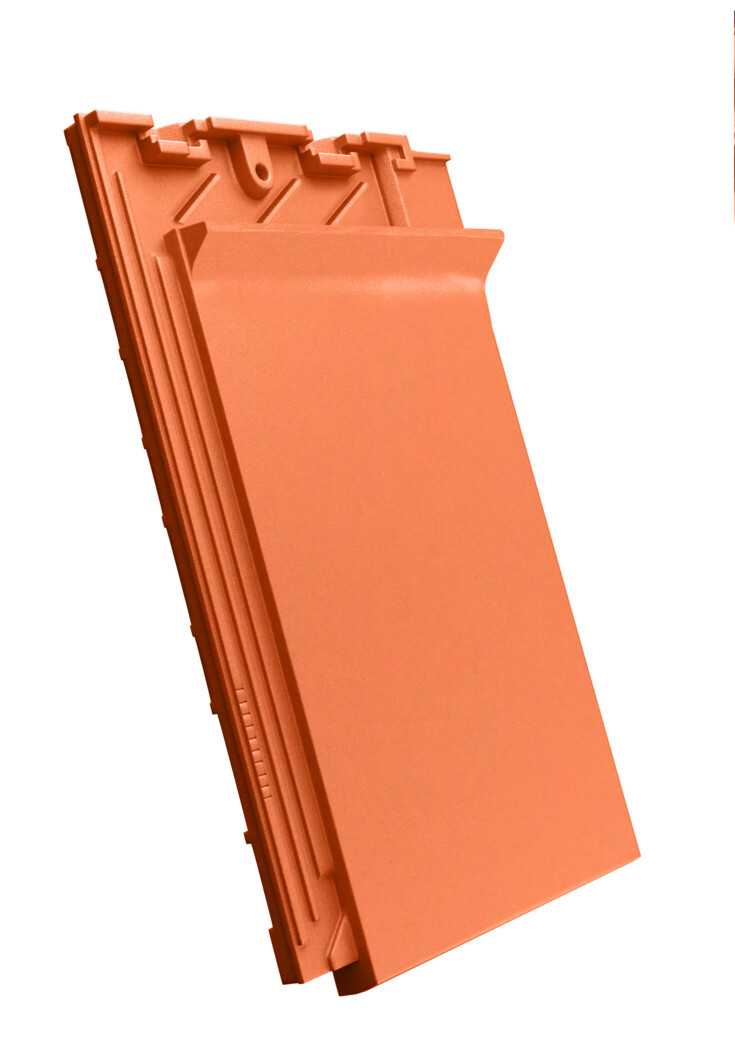

SIMPLA Ridge connection ventilating tile

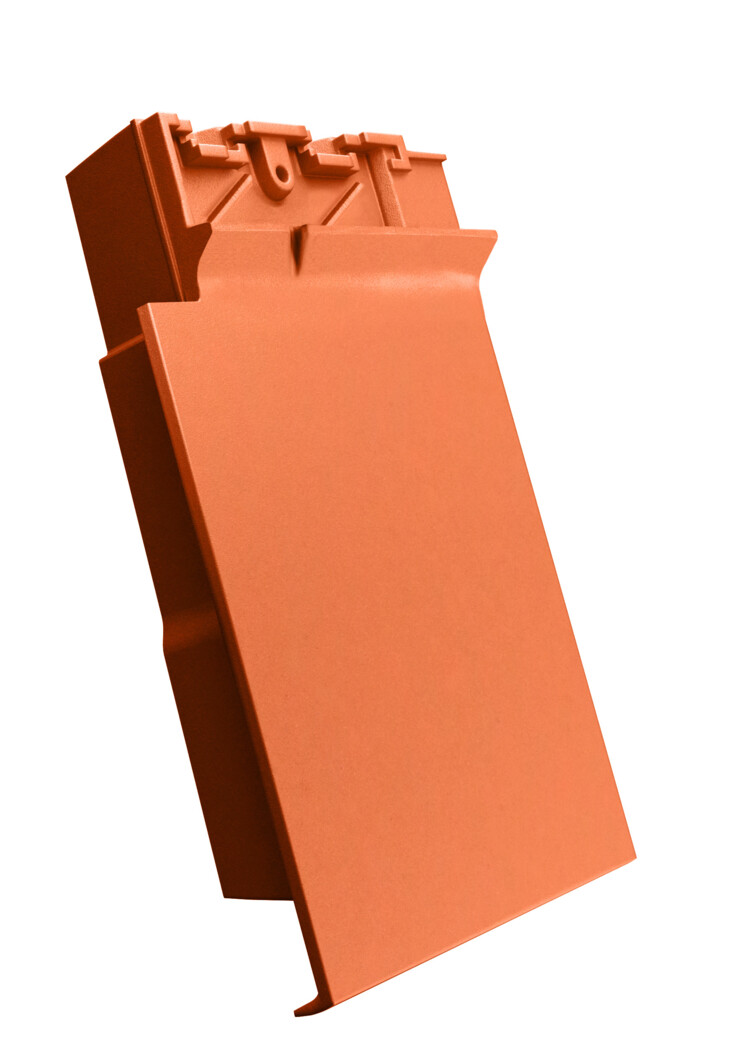

SIMPLA Ridge connection ventilating verge tile Left
Downloads
-
-

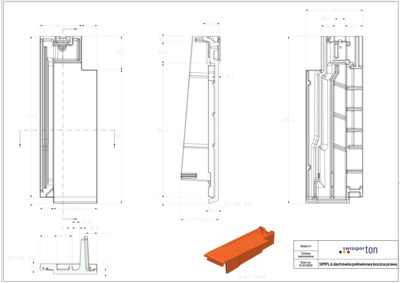

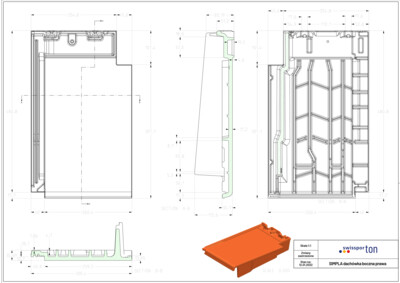

tech draw SIMPLA verge tile right.zip
-

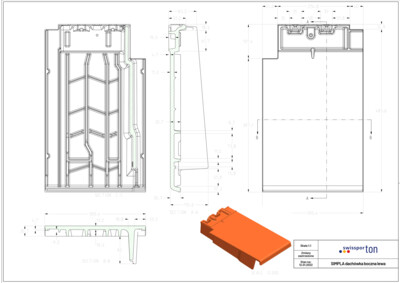

tech draw SIMPLA verge tile left.zip
-

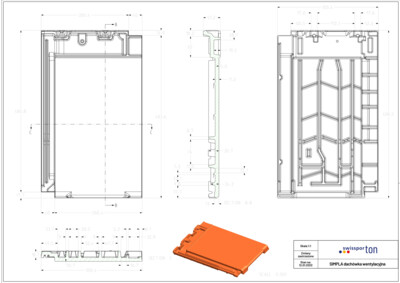

tech draw SIMPLA ventilating tile.zip
-

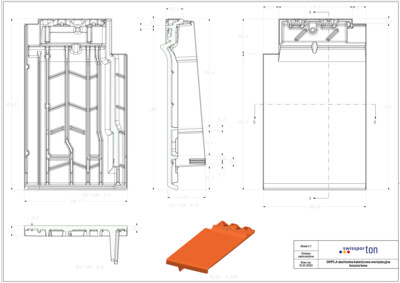

tech draw SIMPLA ridge connection ventilating verge tile left.zip
-

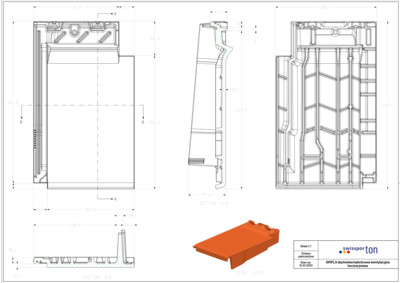

tech draw SIMPLA ridge connection ventilating verge tile right.zip
-

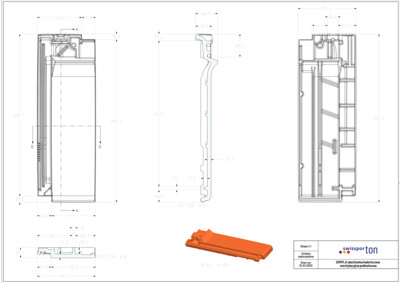

tech draw SIMPLA ridge connection ventilating half tile.zip
-

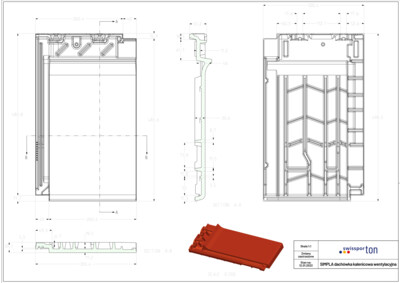

tech draw SIMPLA ridge connection ventilating tile.zip
-

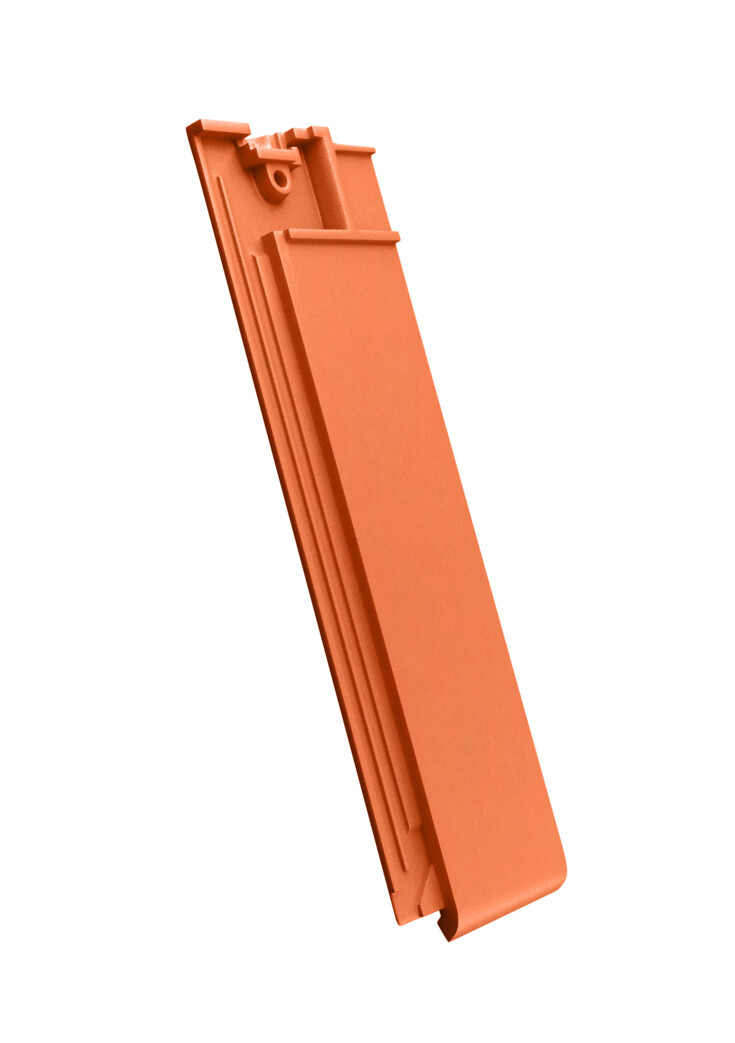

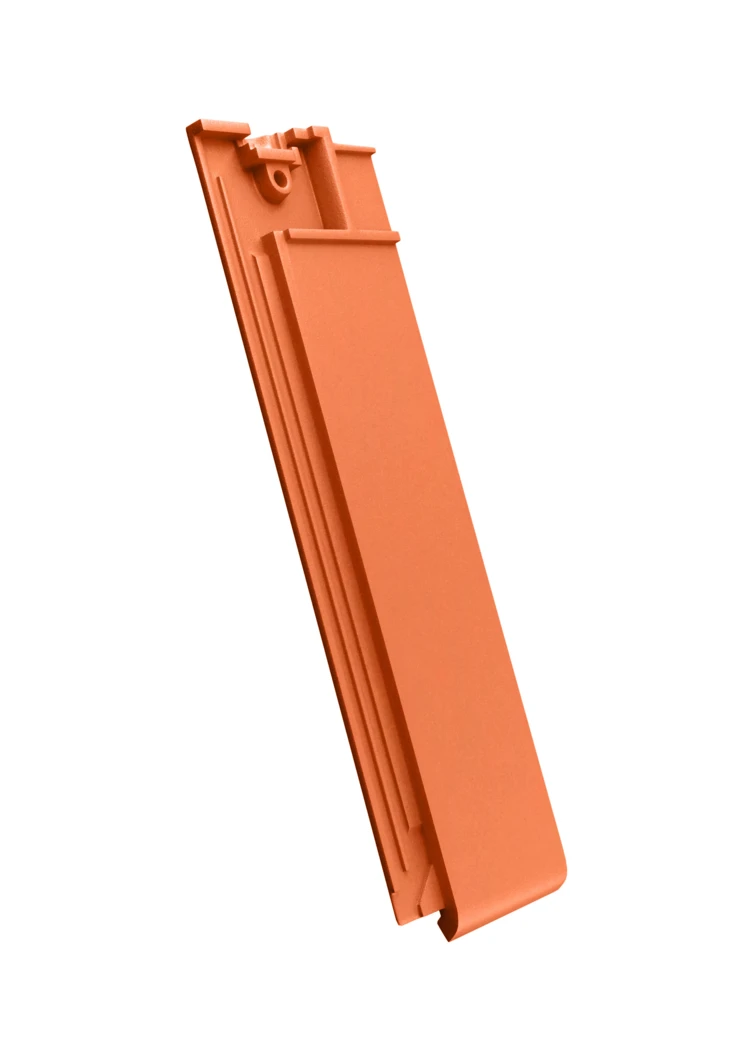

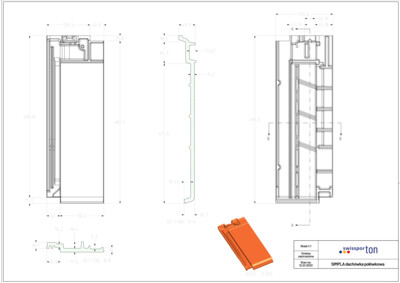

tech draw SIMPLA half width tile.zip
-
tech draw SIMPLA half verge tile right.zip
-

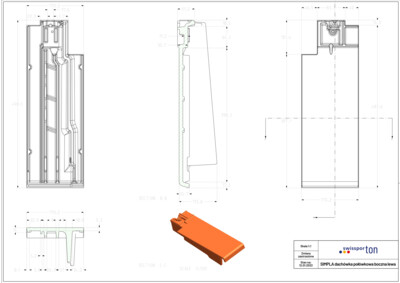

tech draw SIMPLA half verge tile left.zip
-

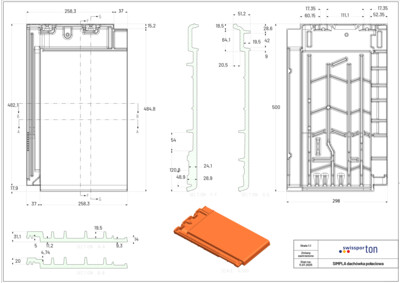

tech draw SIMPLA basic tile.zip
-
