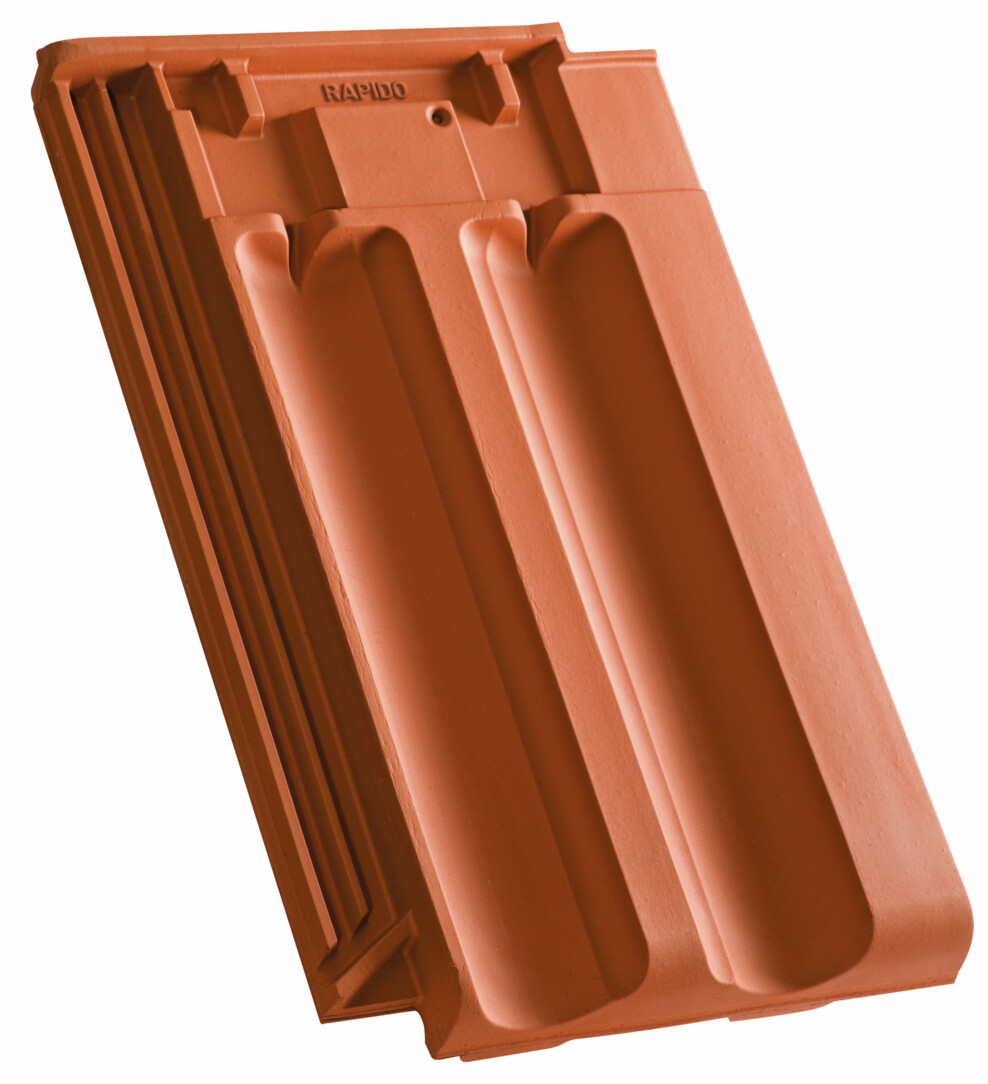

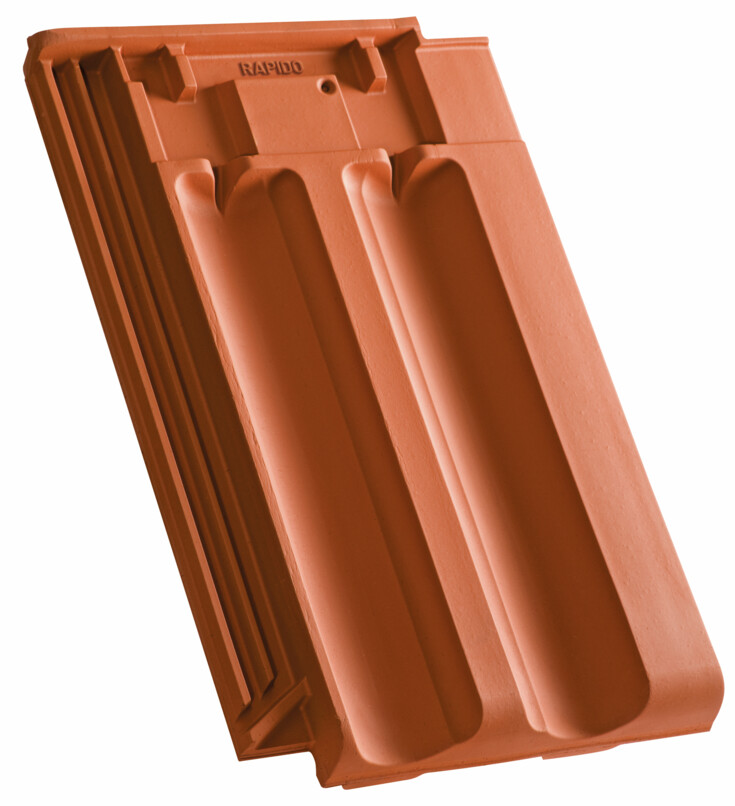

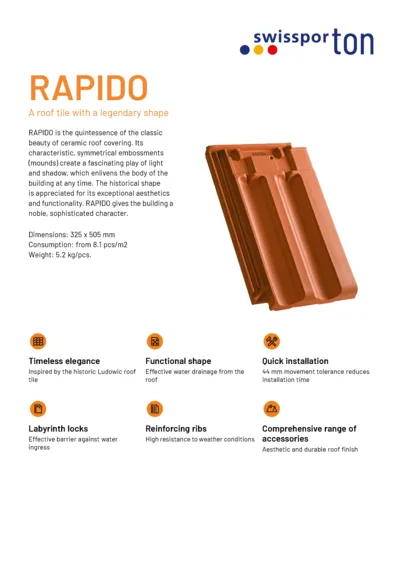

RAPIDO
RAPIDO is the quintessence of the classic beauty of ceramic roof covering. Its characteristic, symmetrical embossments (mounds) create a fascinating play of light and shadow, which enlivens the body of the building at any time. The historical shape is appreciated for its exceptional aesthetics and functionality. RAPIDO gives the building a noble, sophisticated character.
Dimensions: 325 x 502 mm
Consumption: from 8.1 pcs/m2
Weight: 5.2 kg/pcs.

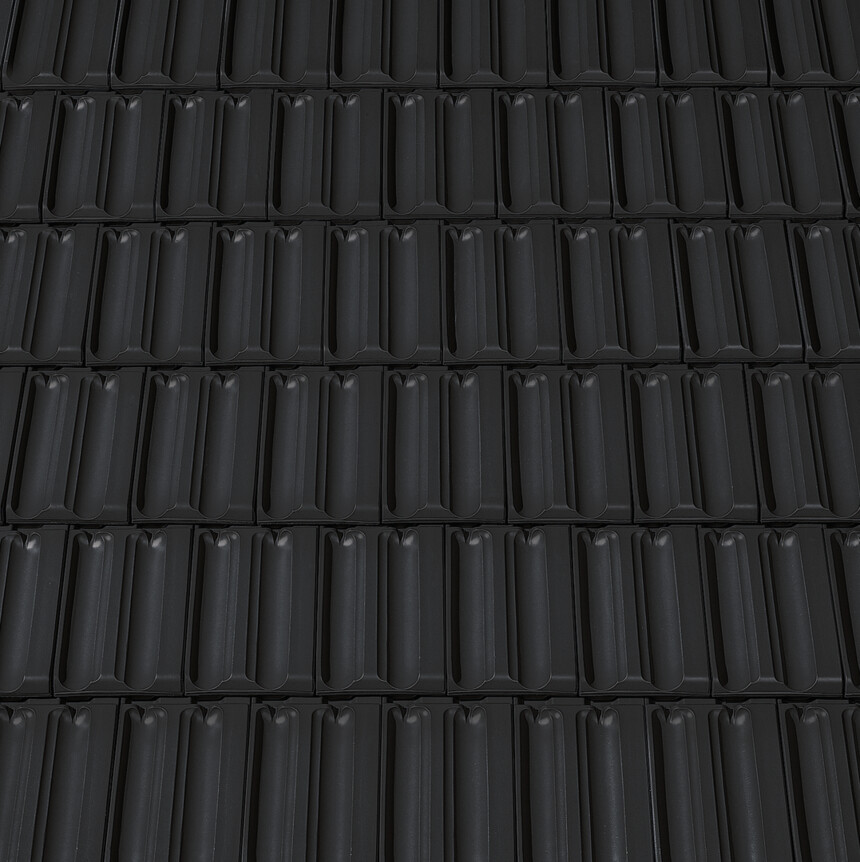

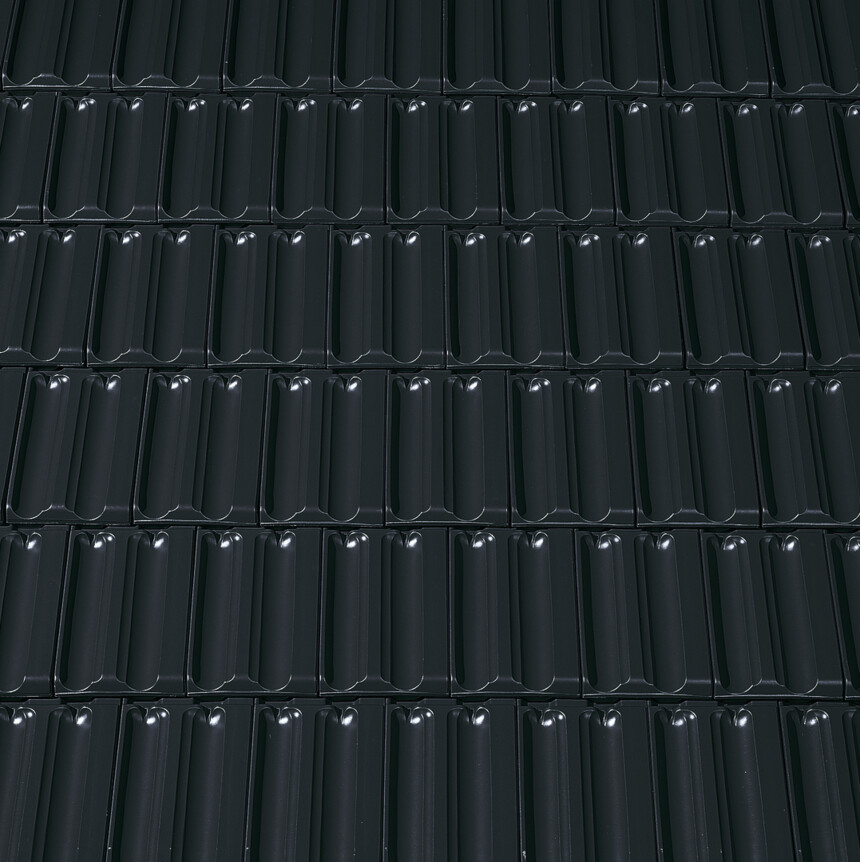

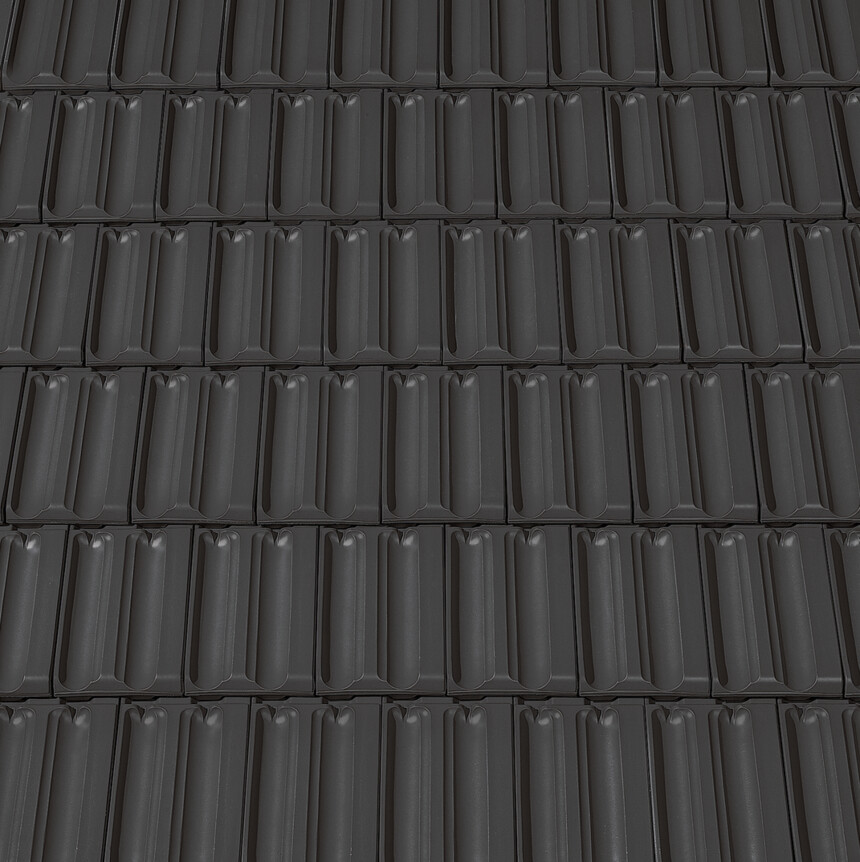

Black engobe
A best selling tile with superior functionality
Inspired by the historic Marseille roof tile
Inspired by the historic Marseille Z1 from 1879, it gives the house a unique, elegant look.
Effective water drainage from the roof
The troughs act as natural channels, minimizing the risk of stagnation and potential leaks.
44 mm movement tolerance reduces installation time
The movement tolerance of up to 44 mm and low consumption of 8.1 pcs./m² save time and installation costs.
Effective barrier against water ingress
Locks with 5 ribs and labyrinth construction protect the roof during heavy rainfall.
High resistance to weather conditions
They increase rigidity and resistance to weather conditions, ensuring safety.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
One of the longest warranties on the market
Warranty protection for ceramic roof tiles provides peace of mind for decades.
Technical data for RAPIDO
-
-
325 × 495 × 10 mm
-
-
-
min. 277 mm
-
av. 278 mm
-
max. 280 mm
-
-
-
min. 410 mm
-
av. 425 mm
-
max. 440 mm
-
-
-
min. 8,1 Pcs/m²
-
av. 8,4 Pcs/m²
-
max. 8,8 Pcs/m²
-
-
-
5,2 Kg/pc
-
43,7 Kg/m²
-
-
-

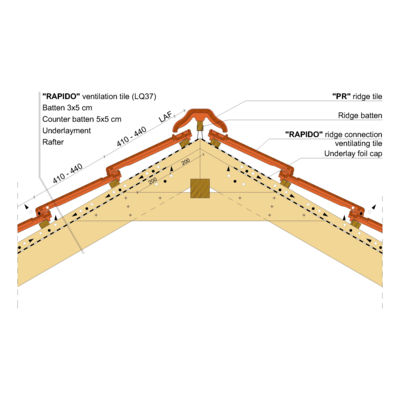

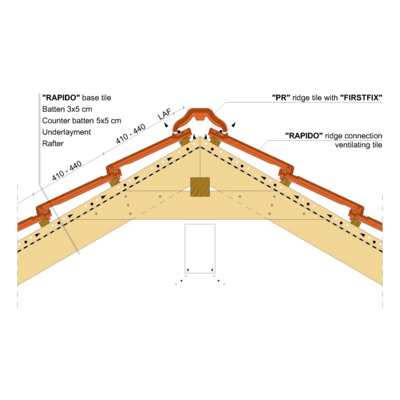

Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
PF 2,5 pcs/m
LAF
75
70
70
65
60
60
60
60
60
55
PF 2,5 pcs/m
FLA
110
95
85
75
65
60
50
35
30
30
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
PF 2,5 pcs/m
LAF
75
70
70
60
55
55
55
50
45
40
PF 2,5 pcs/m
FLA
120
105
95
85
75
70
60
45
40
20
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
PR 2,5 pcs/m
LAF
75
70
70
65
60
60
60
60
60
55
PR 2,5 pcs/m
FLA
110
95
85
75
65
60
50
35
30
30
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
PR 2,5 pcs/m
LAF
75
70
70
60
55
55
55
50
45
40
PR 2,5 pcs/m
FLA
120
105
95
85
75
70
60
45
40
20
-
