MAXIMA PRO
MAXIMA PRO is a universal ceramic roof tile designed especially for replacing old roofing. It fits perfectly into existing roof slopes covered with concrete roof tiles, which is invaluable especially in terraced housing. Its choice is supported by numerous assembly conveniences, economic arguments and a combination of proven shape with ceramic quality.
Dimensions: 329 x 397 mm
Consumption: from 9.5 pcs./m²
Weight: 3.7 kg/pcs.

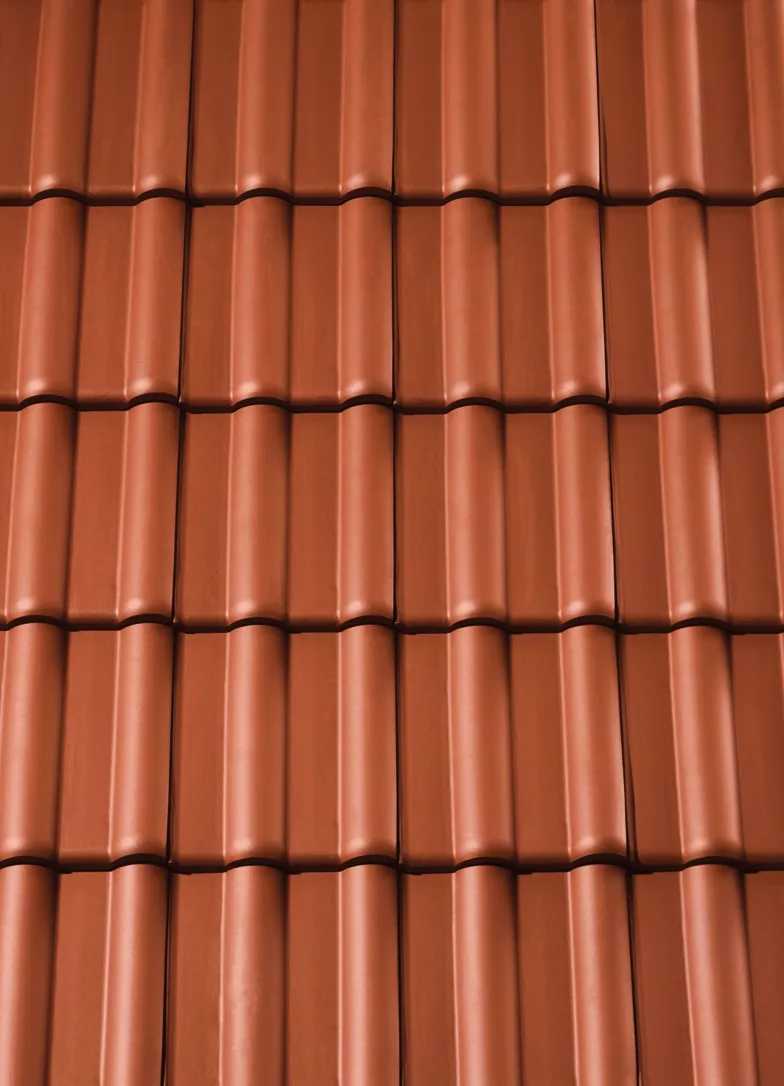

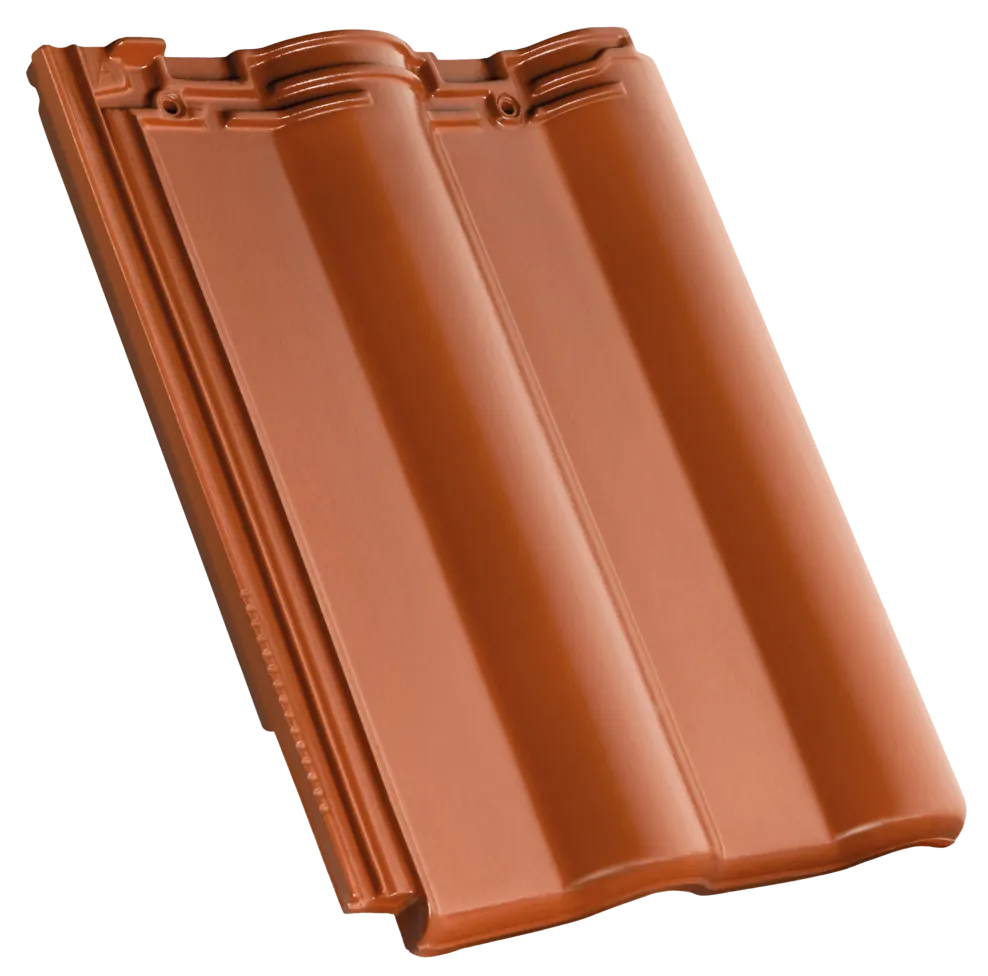

Copper red engobe
Check the most important advantages
Ideal for renovation and new buildings
It enables aesthetic and trouble-free transitions between adjacent roof slopes.
Easy and quick replacement of old roofing
Dimensions for a batten spacing of 10 pcs/m² facilitate the replacement of the roof covering, minimizing costs.
Adaptation to existing roof structure
A shift tolerance of up to 41 mm speeds up the roofer's work and reduces installation costs.
Invisible locks and smooth edges
They create a uniform, elegant slope without unsightly joints, increasing aesthetics.
Effective barrier against weather conditions
They protect against rain and wind, ensuring maximum safety and durability of the roof covering.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
One of the longest warranties on the market
Warranty protection for ceramic roof tiles provides peace of mind for decades.
Technical data for MAXIMA PRO
-
-
329 × 397 mm
-
-
-
min. 299 mm
-
av. 301 mm
-
max. 302 mm
-
-
-
min. 307 mm
-
av. 327 mm
-
max. 347 mm
-
-
-
9,5 Pcs/m²
-
-
-
10,2 Pcs/m²
-
-
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
PT 2.5 pcs/m
LAF
115
110
100
100
100
100
100
100
105
110
110
PT 2.5 pcs/m
FLA
105
95
85
75
65
55
45
35
25
10
0
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
PT 2.5 pcs/m
LAF
115
110
100
95
95
95
95
90
90
95
95
PT 2.5 pcs/m
FLA
110
105
95
85
75
65
55
45
35
20
10
-
Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
PT 2.5 pcs/m
LAF
110
105
95
90
90
85
85
80
80
85
85
PT 2.5 pcs/m
FLA
120
115
105
95
85
80
70
60
50
35
25
-
