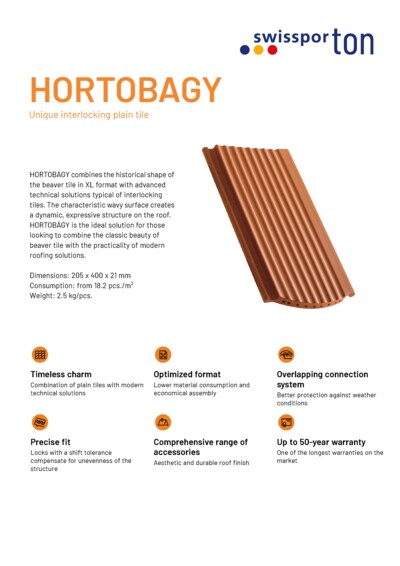

HORTOBAGY

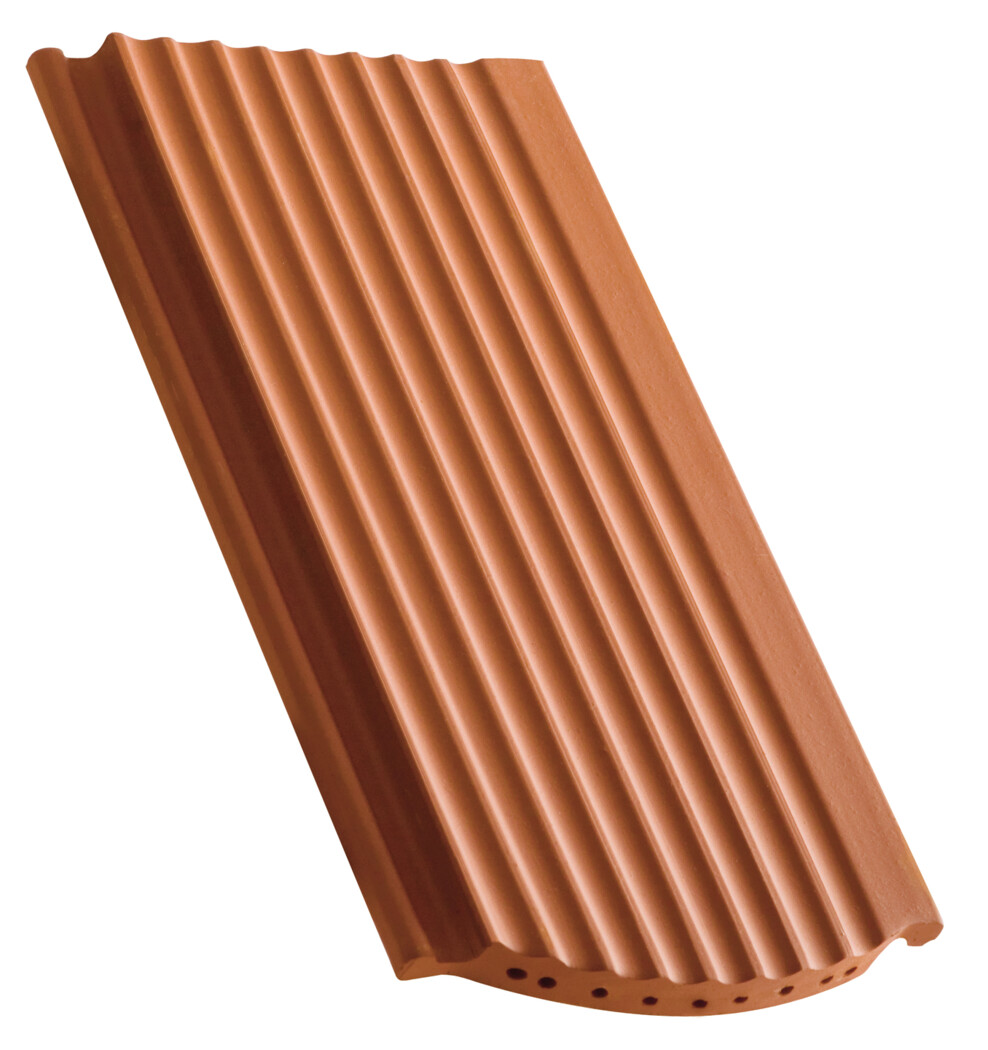

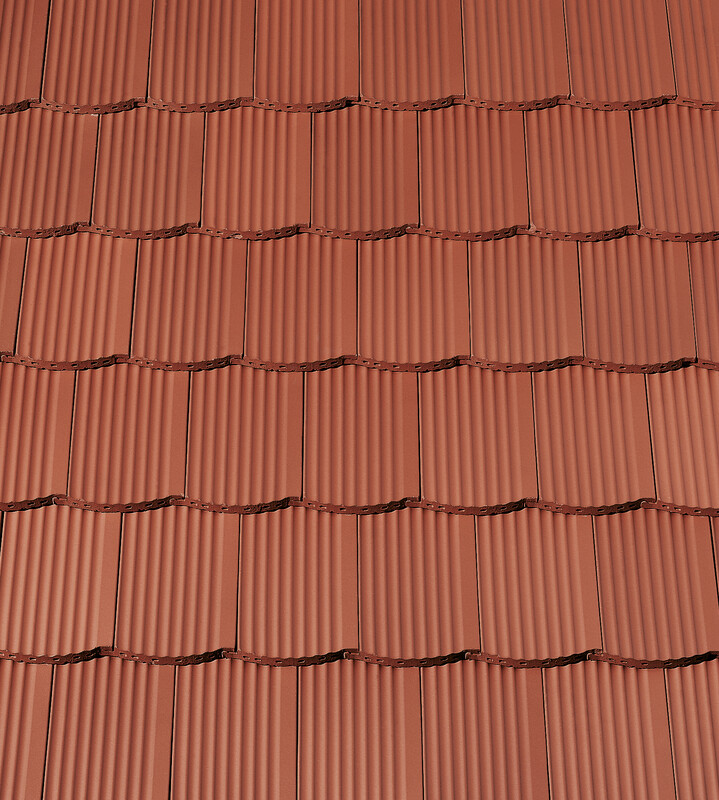

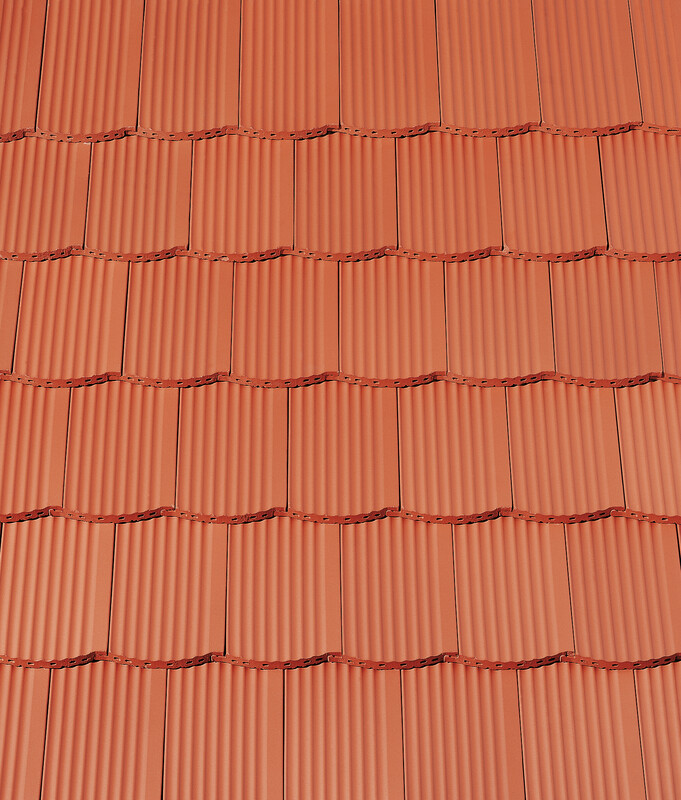

HORTOBÁGY combines the historical shape of the beaver tile in XL format with advanced technical solutions typical of interlocking tiles. The characteristic wavy surface creates a dynamic, expressive structure on the roof. HORTOBÁGY is the ideal solution for those looking to combine the classic beauty of beaver tile with the practicality of modern roofing solutions.
Dimensions: 205 x 400 x 21 mm
Consumption: from 18.2 pcs./m²
Weight: 2.5 kg/pcs.

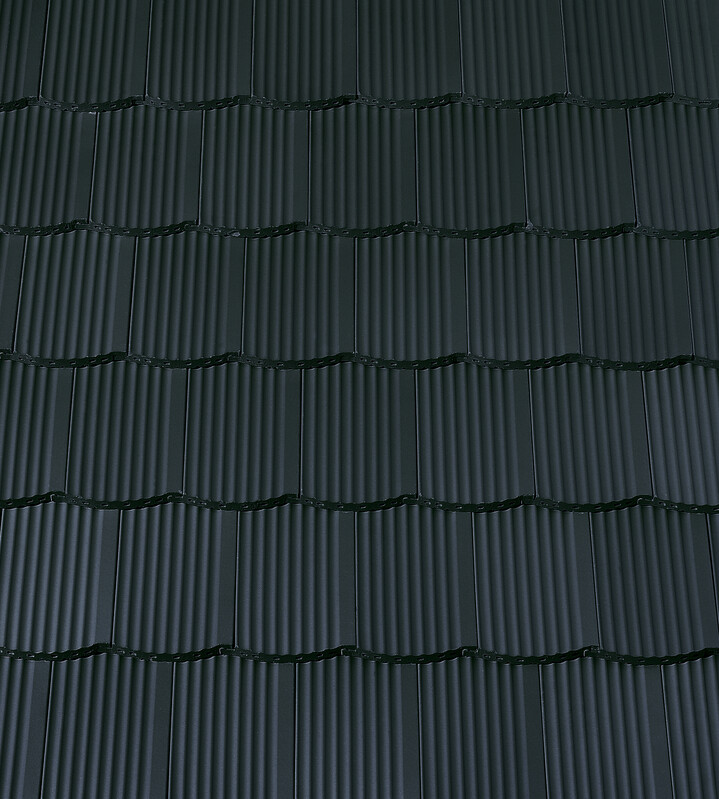

Black engobe
A bestselling tile with superior functionality
Combination of plain tiles with modern technical solutions
The solutions typical of the overlapping tile offer improved roof functionality.
Lower material consumption and economical assembly
The larger format translates into lower material consumption and shorter roofing time.
Better protection against weather conditions
Functional overlaps effectively protect against rainwater and strong wind.
Locks with a shift tolerance compensate for unevenness of the structure
The tolerance of movement on the locks allows for perfect adjustment to the rafter spacing.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
One of the longest warranties on the market
Warranty protection for ceramic roof tiles provides peace of mind for decades.

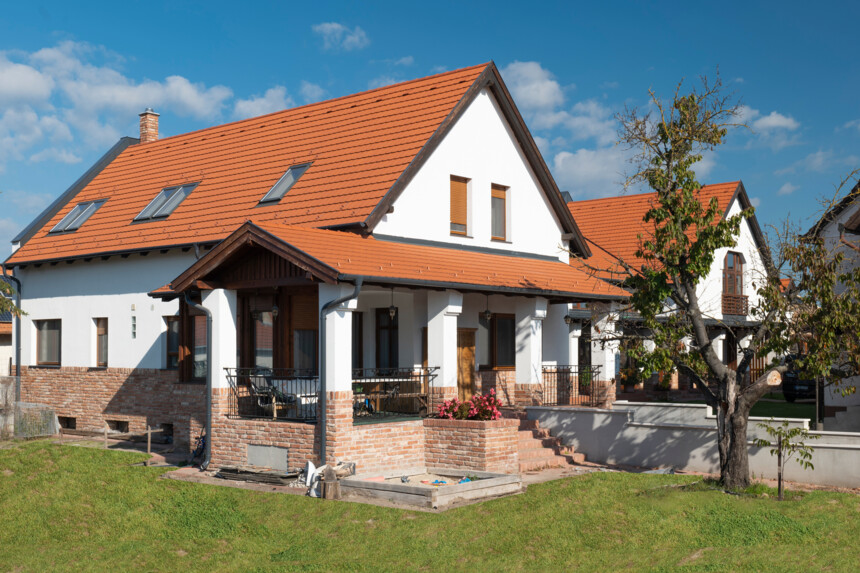

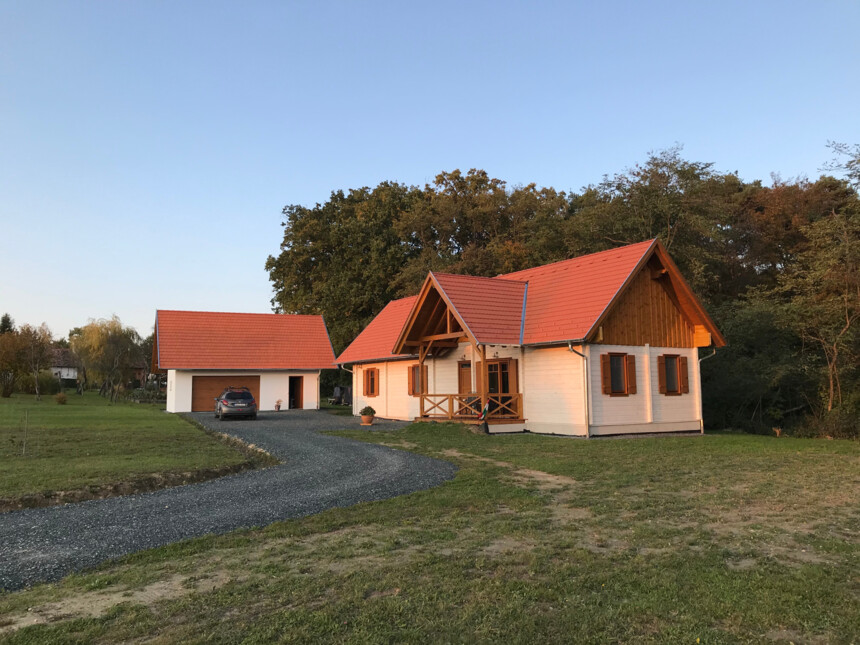

References
Technical data for HORTOBAGY
-
-
205 × 400 × 21 mm
-
-
-
min. 170 mm
-
av. 175 mm
-
max. 180 mm
-
-
-
min. 265 mm
-
av. 285 mm
-
max. 305 mm
-
-
-
av. 19,5 Pcs/m²
-
-
-
2,5 Kg/pc
-
48,4 Kg/m²
-
-
-

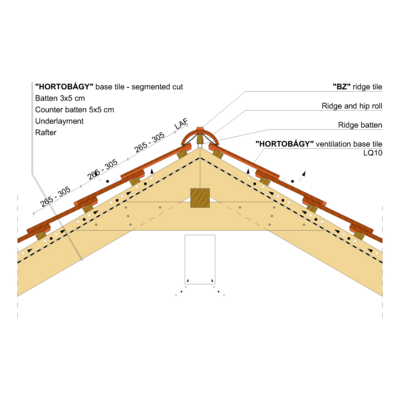

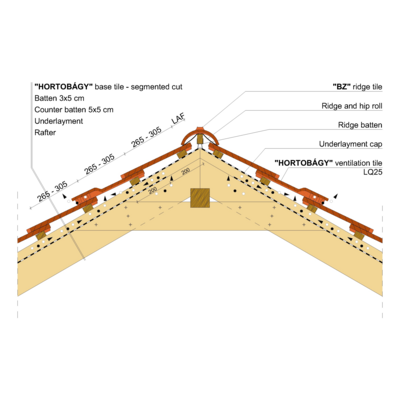

Requirement for ridge tiles (approx.) / Angle
DN
10°
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
BZ 3.0 pcs/m
LAF
55
55
55
55
55
55
50
50
50
50
50
-
